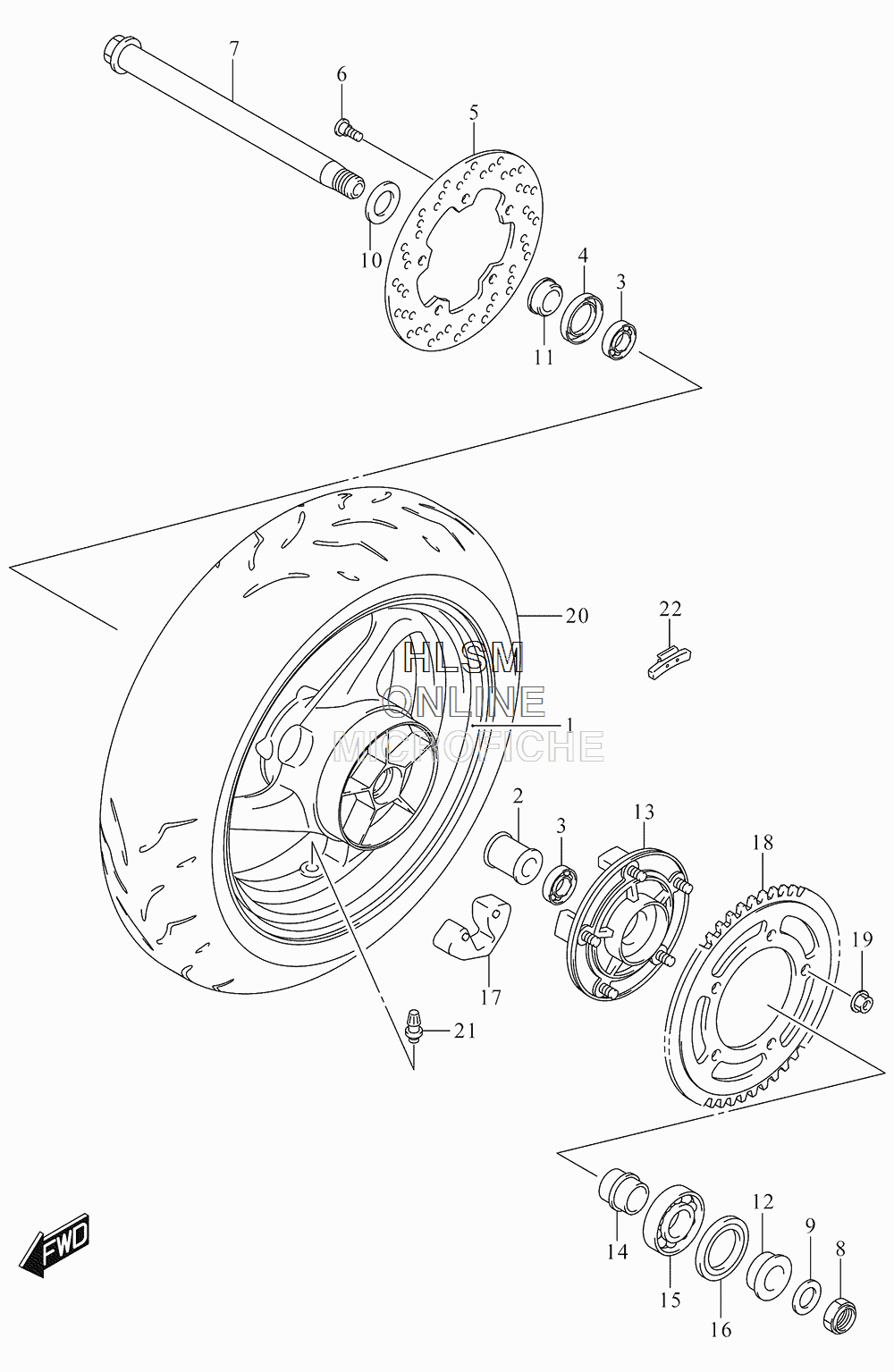

WHEEL - REAR для Suzuki GSX-S750Z L5 - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    64111-44G00-019 WHEEL, REAR (17M/CXMT5.50) (BLACK)
    WHEEL, REAR (17M/CXMT5.50) (BLACK)
  • 2
    64731-44G00 SPACER, REAR WHEEL BEARING
    SPACER, REAR WHEEL BEARING
  • 3
    09262-25061 BEARING (25X52X15)
    BEARING (25X52X15)
  • 4
    09284-37001 OIL SEAL (37X52X8)
    OIL SEAL (37X52X8)
  • 5
    69211-38G00 DISC, REAR BRAKE
    DISC, REAR BRAKE
  • 6
    09106-08160 BOLT (8X21)
    BOLT (8X21)
  • 7
    64711-08J00 AXLE, REAR
    AXLE, REAR
  • 8
    09159-22007 NUT
    NUT
  • 9
    09160-22086 WASHER (22X46X3) (LEFT HAND)
    WASHER (22X46X3) (LEFT HAND)
  • 10
    09160-25082 WASHER (25.5X46X3) (RIGHT HAND)
    WASHER (25.5X46X3) (RIGHT HAND)
  • 11
    64741-44G00 SPACER, REAR AXLE RIGHT HAND
    SPACER, REAR AXLE RIGHT HAND
  • 12
    64751-08J00 SPACER, REAR AXLE LEFT HAND
    SPACER, REAR AXLE LEFT HAND
  • 13
    64610-35F30 DRUM, REAR SPROCKET
    DRUM, REAR SPROCKET
  • 14
    64733-44G00 RETAINER, REAR SPROCKET DRUM
    RETAINER, REAR SPROCKET DRUM
  • 15
    09262-32022 BEARING (32X65X17)
    BEARING (32X65X17)
  • 16
    09285-39001 OIL SEAL (39X65X7)
    OIL SEAL (39X65X7)
  • 17
    64651-35F30 ABSORBER, REAR HUB SHOCK
    ABSORBER, REAR HUB SHOCK
  • 18
    64511-35F10 SPROCKET, REAR (NT:42)
    SPROCKET, REAR (NT:42)
  • 19
    08319-3110A NUT
    NUT
  • 20
    65110-08J00 TIRE, REAR (180/55ZR17M/C 73W)
    TIRE, REAR (180/55ZR17M/C 73W)
  • 21
    43130-24A00 VALVE ASSY, WHEEL RIM (TR412)
    VALVE ASSY, WHEEL RIM (TR412)
  • 22
    55411-22H00 BALANCER, WHEEL NO.1 (10G)
    BALANCER, WHEEL NO.1 (10G)
  • 22
    55412-22H00 BALANCER, WHEEL NO.2 (20G)
    BALANCER, WHEEL NO.2 (20G)
  • 22
    55413-22H00 BALANCER, WHEEL NO.3 (30G)
    BALANCER, WHEEL NO.3 (30G)
