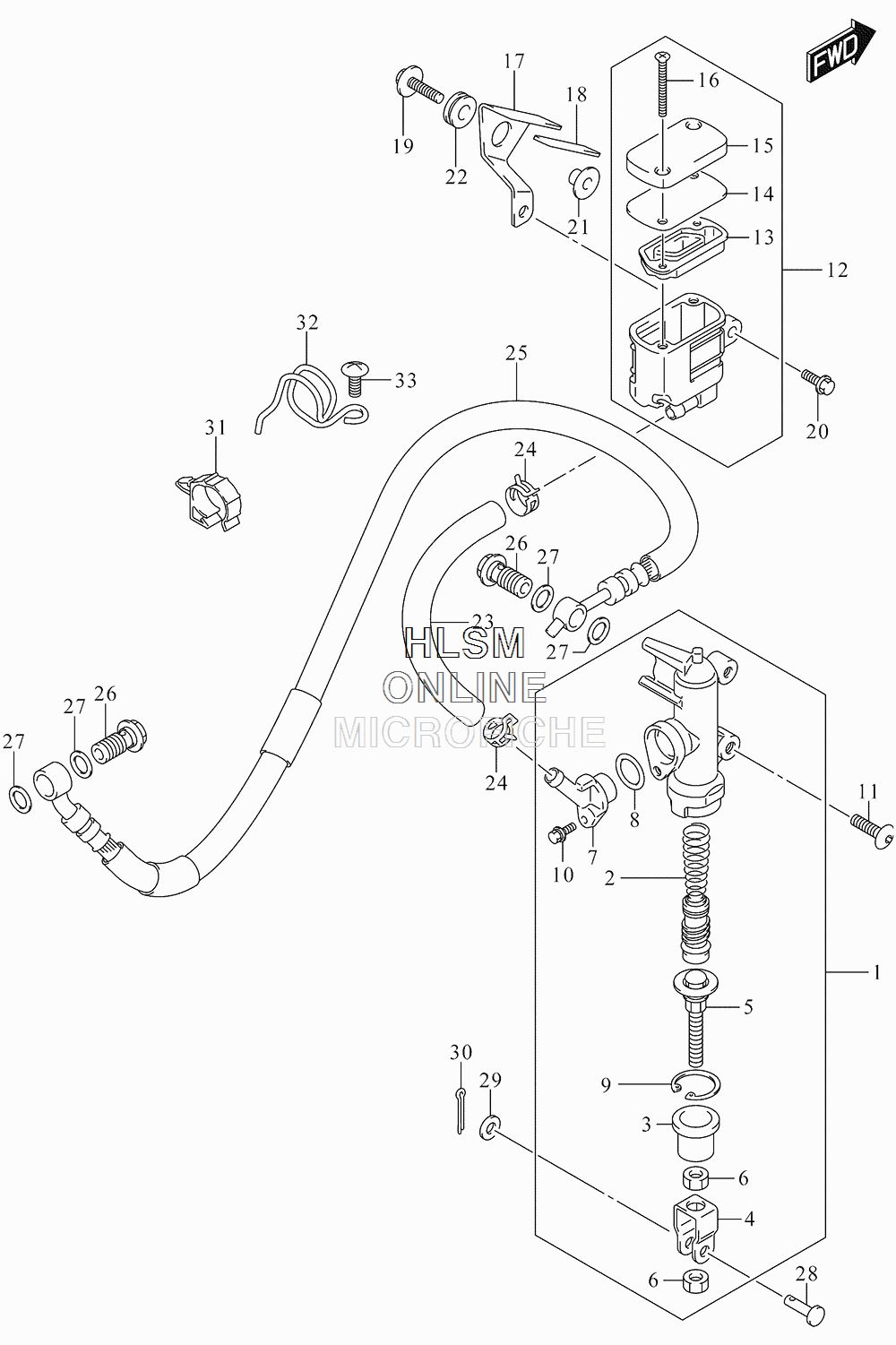

BRAKE - REAR MASTER CYLINDER для Suzuki GSX-S750Z L5 - 2015 года выпуска
-
№АртикулНазвание
-
169600-08J00 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-34810 ...PISTON/CAP SET...PISTON/CAP SET
-
369691-00A00 ...BOOT...BOOT
-
469692-44H00 ...YOKE...YOKE
-
569670-27A30 ...ROD, PUSH...ROD, PUSH
-
669693-05A00 ...NUT...NUT
-
769672-08J10 ...CONNECTOR...CONNECTOR
-
869686-34200 ...O RING...O RING
-
969665-47H00 ...CIRCLIP...CIRCLIP
-
1002112-7412A ...SCREW...SCREW
-
1109139-06028 SCREW (6X20)SCREW (6X20)
-
1269740-01H10 TANK ASSY, REAR RESERVOIRTANK ASSY, REAR RESERVOIR
-
1369667-01H00 ...DIAPHRAGM...DIAPHRAGM
-
1469668-01H00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
1569669-01H00 ...CAP...CAP
-
1669689-01H00 ...SCREW...SCREW
-
1769750-08J00 BRACKET, REAR RESERVOIR TANKBRACKET, REAR RESERVOIR TANK
-
1869752-08J00 CUSHION, BRACKET NO.2CUSHION, BRACKET NO.2
-
1909116-06202 BOLT (6X25)BOLT (6X25)
-
2001547-0612A BOLTBOLT
-
2109180-06325 SPACER (6.2X8.4X6.9)SPACER (6.2X8.4X6.9)
-
2209320-08066 CUSHIONCUSHION
-
2369731-08J00 HOSE, REAR RESERVOIR TANKHOSE, REAR RESERVOIR TANK
-
2409401-12404 CLIPCLIP
-
2569480-08J00 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
2609360-10062 UNIONUNION
-
2709161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2809200-06068 PIN (6X18.2)PIN (6X18.2)
-
2908322-0106A WASHERWASHER
-
3004111-2015A COTTER PINCOTTER PIN
-
3109403-17306 CLAMPCLAMP
-
3261196-08J00 GUIDE, REAR BRAKE HOSEGUIDE, REAR BRAKE HOSE
-
3302142-0616A SCREWSCREW
