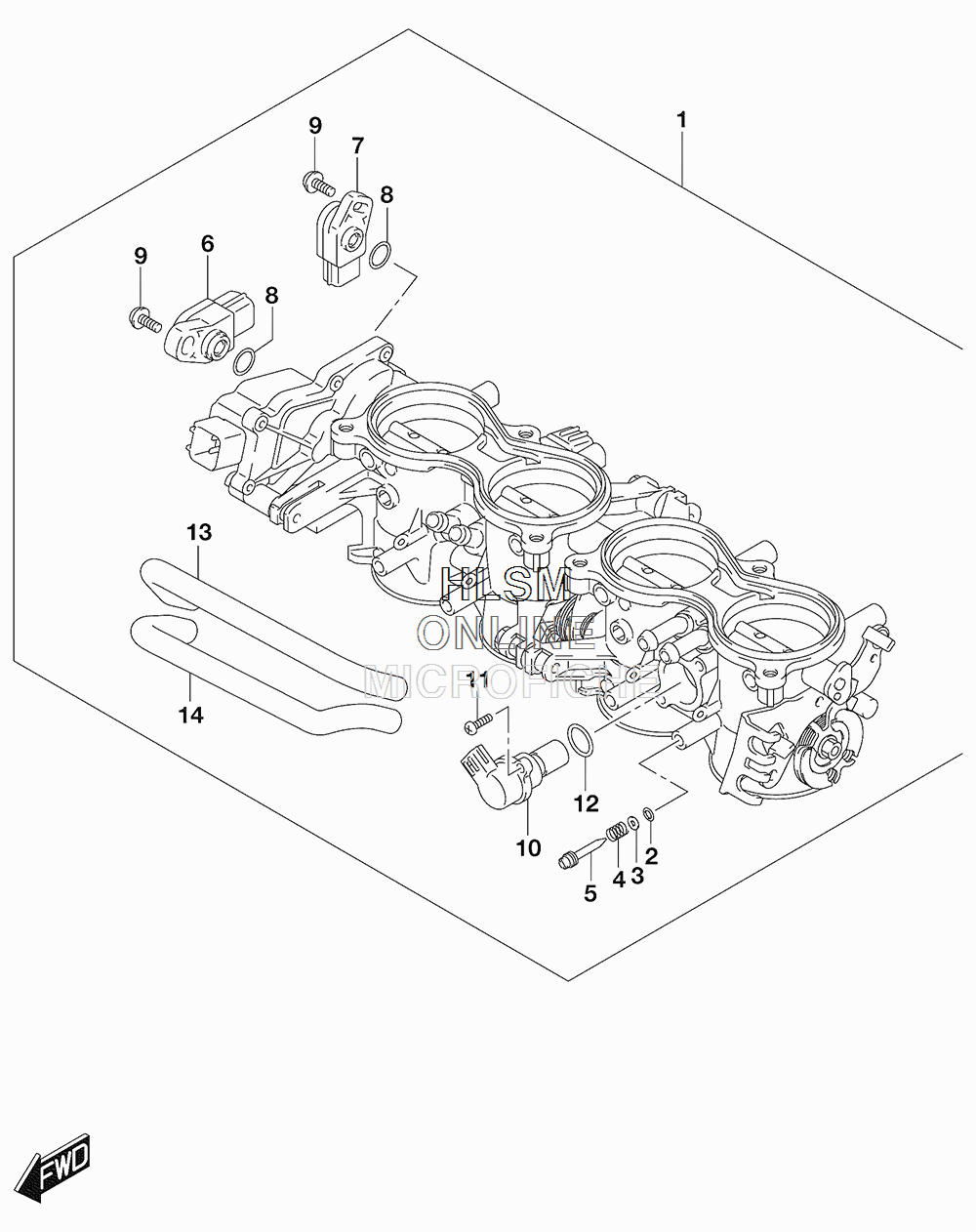

THROTTLE BODY (CAN) для Suzuki GSX-R750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
113406-15J20 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
213295-29900 ...O RING...O RING
-
313606-47A00 ...WASHER...WASHER
-
413268-48700 ...SPRING, THROTTLE SCREW...SPRING, THROTTLE SCREW
-
513269-33E00 ...SCREW...SCREW
-
613580-14J00 ...SENSOR ASSY...SENSOR ASSY
-
713580-14J10 ...SENSOR ASSY...SENSOR ASSY
-
813575-29G00 ...O RING...O RING
-
913605-02F00 ...SCREW...SCREW
-
1018117-14J01 ...MOTOR ASSY...MOTOR ASSY
-
1113605-37H00 ...SCREW...SCREW
-
1213679-37H00 ...O RING...O RING
-
1313698-14J00 ...HOSE...HOSE
-
1413698-14J10 ...HOSE...HOSE
