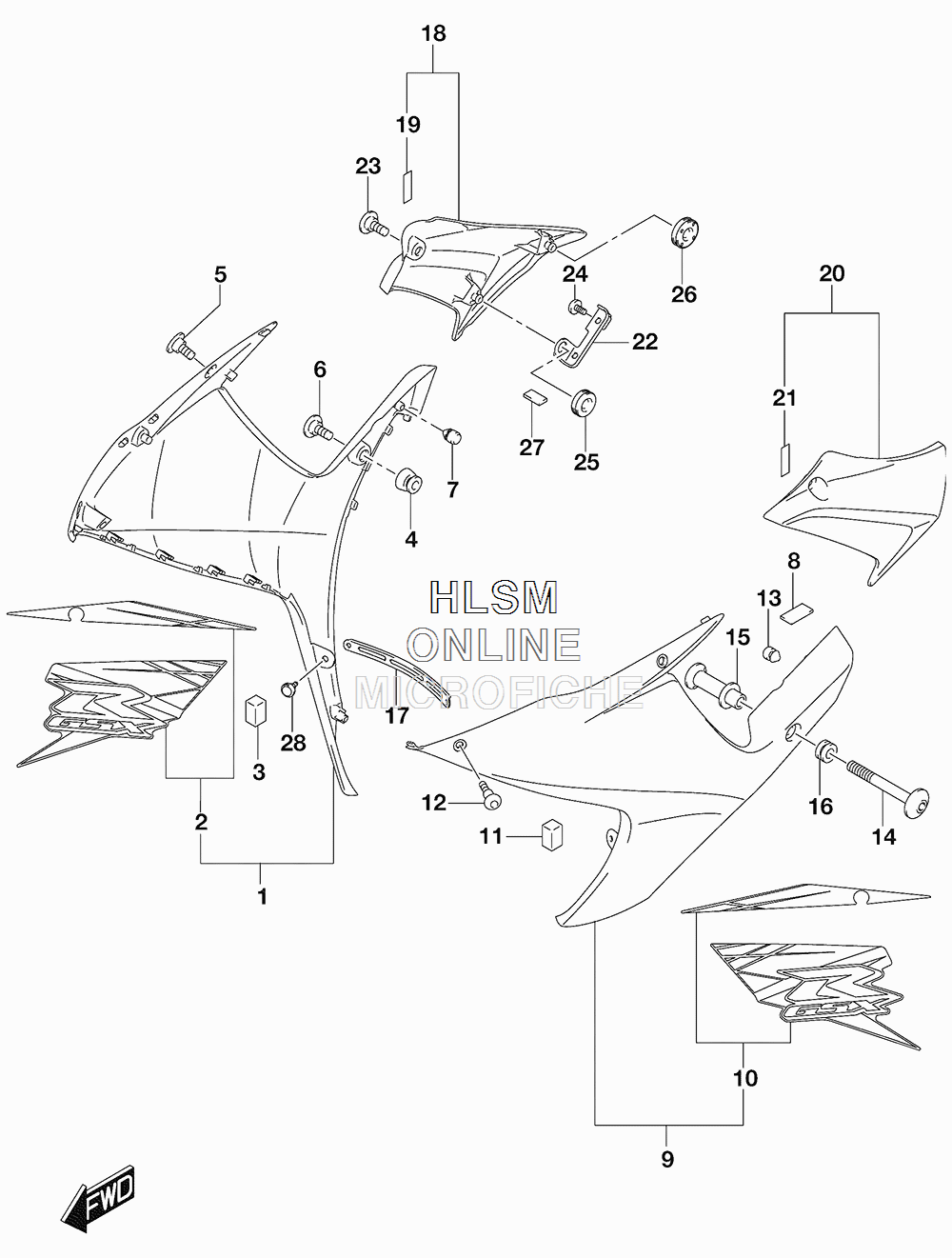

SIDE COWLING (ASV-A19) для Suzuki GSX-R750 L5 - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    94450-14J50-YKV COWLING, SIDE RIGHT HAND (BLACK) (FOR ASV)
    COWLING, SIDE RIGHT HAND (BLACK) (FOR ASV)
  • 1
    94450-14J50-4TX COWLING, SIDE RIGHT HAND (BLACK) (FOR A19)
    COWLING, SIDE RIGHT HAND (BLACK) (FOR A19)
  • 2
    68680-14J10-A3M ...TAPE, SIDE COWLING RIGHT HAND (RED/BLACK) (FOR YKV)
    ...TAPE, SIDE COWLING RIGHT HAND (RED/BLACK) (FOR YKV)
  • 2
    68680-14J10-A3Q ...TAPE, SIDE COWLING RIGHT HAND (GRAY/BLUE) (FOR 4TX)
    ...TAPE, SIDE COWLING RIGHT HAND (GRAY/BLUE) (FOR 4TX)
  • 3
    94477-14J01 CUSHION
    CUSHION
  • 4
    94479-15H00 CUSHION, SIDE COWLING (RH)
    CUSHION, SIDE COWLING (RH)
  • 5
    09139-05064 SCREW (5X13)
    SCREW (5X13)
  • 6
    09139-06190 BOLT (6X20)
    BOLT (6X20)
  • 7
    09321-06013 CUSHION
    CUSHION
  • 8
    44543-10G00 PROTECTOR, SIDE COWLING LEFT HAND (CUT AS REQUIRED)
    PROTECTOR, SIDE COWLING LEFT HAND (CUT AS REQUIRED)
  • 9
    94460-14J50-YKV COWLING, SIDE LEFT HAND (BLACK) (FOR ASV)
    COWLING, SIDE LEFT HAND (BLACK) (FOR ASV)
  • 9
    94460-14J50-4TX COWLING, SIDE LEFT HAND (BLACK) (FOR A19)
    COWLING, SIDE LEFT HAND (BLACK) (FOR A19)
  • 10
    68690-14J10-A3M ...TAPE, SIDE COWLING LEFT HAND (FOR YKV)
    ...TAPE, SIDE COWLING LEFT HAND (FOR YKV)
  • 10
    68690-14J10-A3Q ...TAPE, SIDE COWLING LEFT HAND (FOR 4TX)
    ...TAPE, SIDE COWLING LEFT HAND (FOR 4TX)
  • 11
    94477-14J01 CUSHION
    CUSHION
  • 12
    09139-05064 SCREW (5X13)
    SCREW (5X13)
  • 13
    09321-06013 CUSHION
    CUSHION
  • 14
    94488-14J00 SCREW, SIDE COWLING (LH)
    SCREW, SIDE COWLING (LH)
  • 15
    94489-14J00 SPACER, SIDE COWLING (LH)
    SPACER, SIDE COWLING (LH)
  • 16
    09320-09016 CUSHION (LH)
    CUSHION (LH)
  • 17
    94498-14J00 PLATE, UNDER COWLING CENTER
    PLATE, UNDER COWLING CENTER
  • 18
    94570-14J00 COVER, SIDE COWLING (RH)
    COVER, SIDE COWLING (RH)
  • 19
    94443-06G00 ...TAPE (6X25X0.13)
    ...TAPE (6X25X0.13)
  • 20
    94580-14J00 COVER, SIDE COWLING (LH)
    COVER, SIDE COWLING (LH)
  • 21
    94443-06G00 ...TAPE (6X25X0.13)
    ...TAPE (6X25X0.13)
  • 22
    94491-14J00 BRACKET, COVER SIDE (RH)
    BRACKET, COVER SIDE (RH)
  • 23
    09139-05064 SCREW (5X13)
    SCREW (5X13)
  • 24
    09139-06062 SCREW (6X12)
    SCREW (6X12)
  • 25
    09320-08013 CUSHION
    CUSHION
  • 26
    09320-08028 CUSHION
    CUSHION
  • 27
    94612-31F00 CUSHION, BRACKET COVER (RH)
    CUSHION, BRACKET COVER (RH)
  • 28
    94479-35F00 CLIP, UNDER CTR
    CLIP, UNDER CTR
