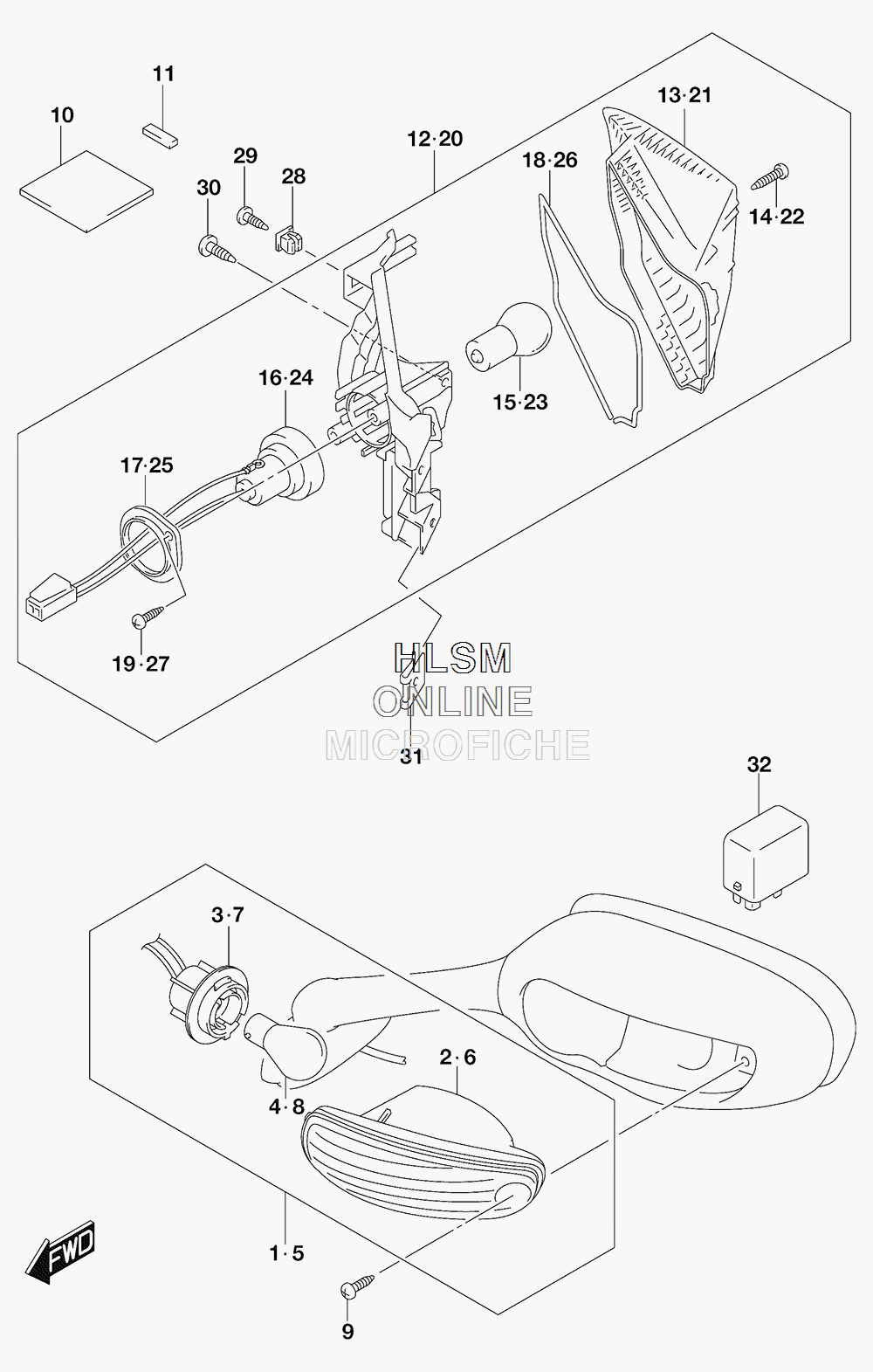

TURN SIGNAL ASSY. для Suzuki GSX-R600 L5 - 2015 года выпуска
-
№АртикулНазвание
-
135601-41G00 LAMP ASSY, FRONT TURNSIGNAL (RH)LAMP ASSY, FRONT TURNSIGNAL (RH)
-
235610-41G00 ...LAMP UNIT, (RH)...LAMP UNIT, (RH)
-
335618-10G50 ...SOCKET, (RH)...SOCKET, (RH)
-
409471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
535602-41G00 LAMP ASSY, FRONT TURNSIGNAL (LH)LAMP ASSY, FRONT TURNSIGNAL (LH)
-
635630-41G00 ...LAMP UNIT, (LH)...LAMP UNIT, (LH)
-
735638-10G50 ...SOCKET, (LH)...SOCKET, (LH)
-
809471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
909132-04032 SCREW (4X20)SCREW (4X20)
-
1033652-21G10 CUSHION, FRONT TURNSIGNALCUSHION, FRONT TURNSIGNAL
-
1194443-21H00 TAPE, FRONT TURNSIGNALTAPE, FRONT TURNSIGNAL
-
1235603-47H00 LAMP ASSY, REAR TURNSIGNAL (RH)LAMP ASSY, REAR TURNSIGNAL (RH)
-
1335652-47H00 ...LENS, (RH)...LENS, (RH)
-
1403211-0416A ...SCREW...SCREW
-
1509471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
1635658-41G00 ...SOCKET AND CORD, (RH)...SOCKET AND CORD, (RH)
-
1735716-07A30 ...PLATE...PLATE
-
1835653-47H00 ...GASKET...GASKET
-
1903211-0412A ...SCREW...SCREW
-
2035604-47H00 LAMP ASSY, REAR TURNSIGNAL (LH)LAMP ASSY, REAR TURNSIGNAL (LH)
-
2135672-47H00 ...LENS, (LH)...LENS, (LH)
-
2203211-0416A ...SCREW...SCREW
-
2309471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
2435678-41G00 ...SOCKET AND CORD, (LH)...SOCKET AND CORD, (LH)
-
2535716-07A30 ...PLATE...PLATE
-
2635653-47H00 ...GASKET...GASKET
-
2703211-0412A ...SCREW...SCREW
-
2809148-04021 NUTNUT
-
2903541-0412A SCREWSCREW
-
3003511-0512A SCREWSCREW
-
3109148-05038 NUTNUT
-
3238610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
