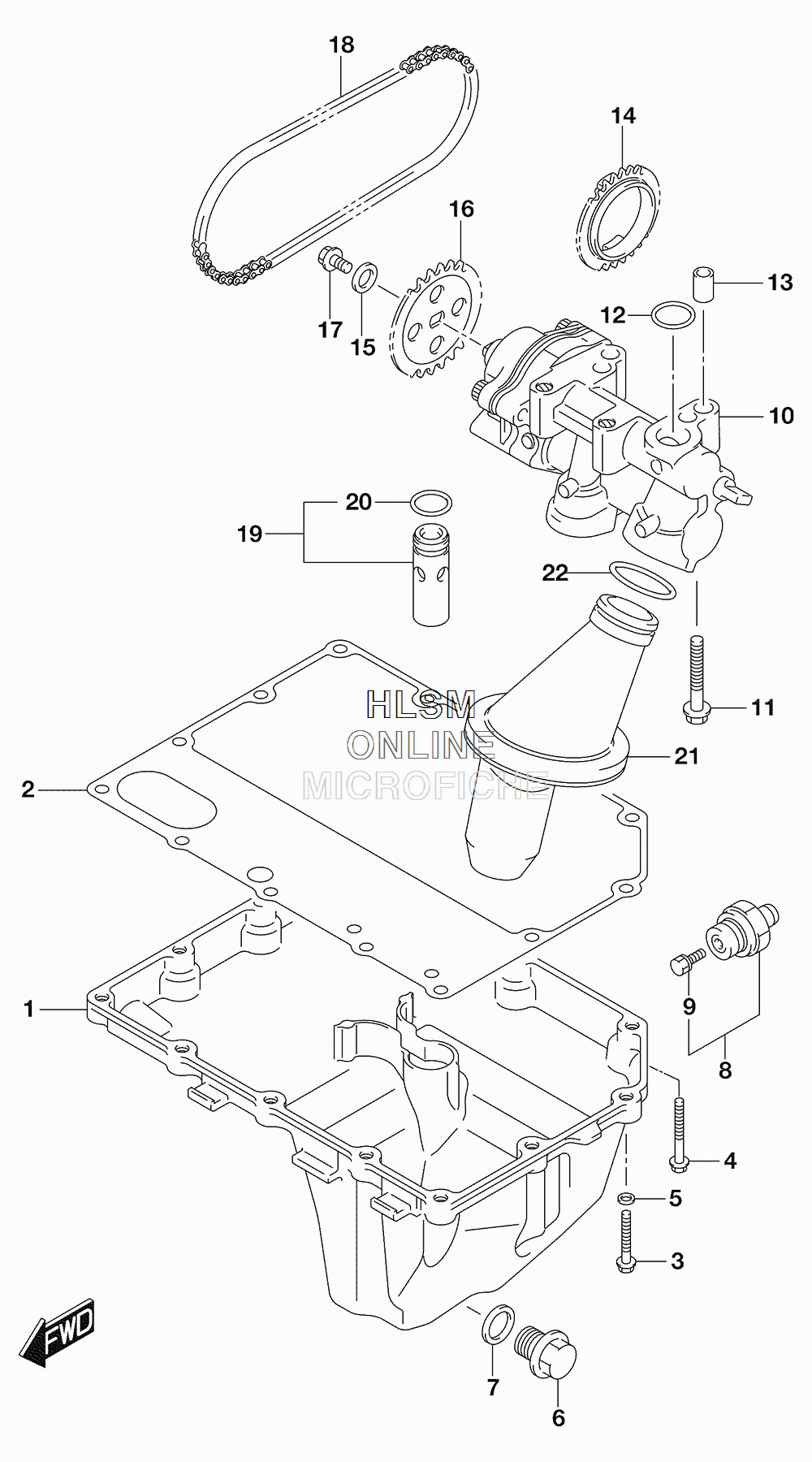

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX-R600 L5 - 2015 года выпуска
-
№АртикулНазвание
-
111511-01H00 PAN, OILPAN, OIL
-
211489-01H01 GASKETGASKET
-
301547-0625A BOLTBOLT
-
409103-06204 BOLT (6X30)BOLT (6X30)
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
609247-14036 PLUG (14X20) (OIL DRAIN)PLUG (14X20) (OIL DRAIN)
-
709168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
837820-33D10 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
937822-33D00 ...BOLT...BOLT
-
1016400-01H00 PUMP ASSY, ENG OILPUMP ASSY, ENG OIL
-
1101547-0635A BOLTBOLT
-
1209280-15007 O RING (D:2.4,ID:15.8)O RING (D:2.4,ID:15.8)
-
1304211-09149 PINPIN
-
1416321-01H00 SPROCKET, DRIVE (NT:27)SPROCKET, DRIVE (NT:27)
-
1509181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
1616331-01H00 SPROCKET, DRIVEN (NT:28)SPROCKET, DRIVEN (NT:28)
-
1709103-06285 BOLT (6X12)BOLT (6X12)
-
1816310-01H00 CHAIN, OIL PUMP DRIVECHAIN, OIL PUMP DRIVE
-
1916440-24F00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
2009280-13004 ...O RING (D:1.9,ID:13)...O RING (D:1.9,ID:13)
-
2116520-01H01 STRAINER, ENGINE OIL NO.1STRAINER, ENGINE OIL NO.1
-
2209280-25004 O RING (D:2.4,ID:24.7)O RING (D:2.4,ID:24.7)
