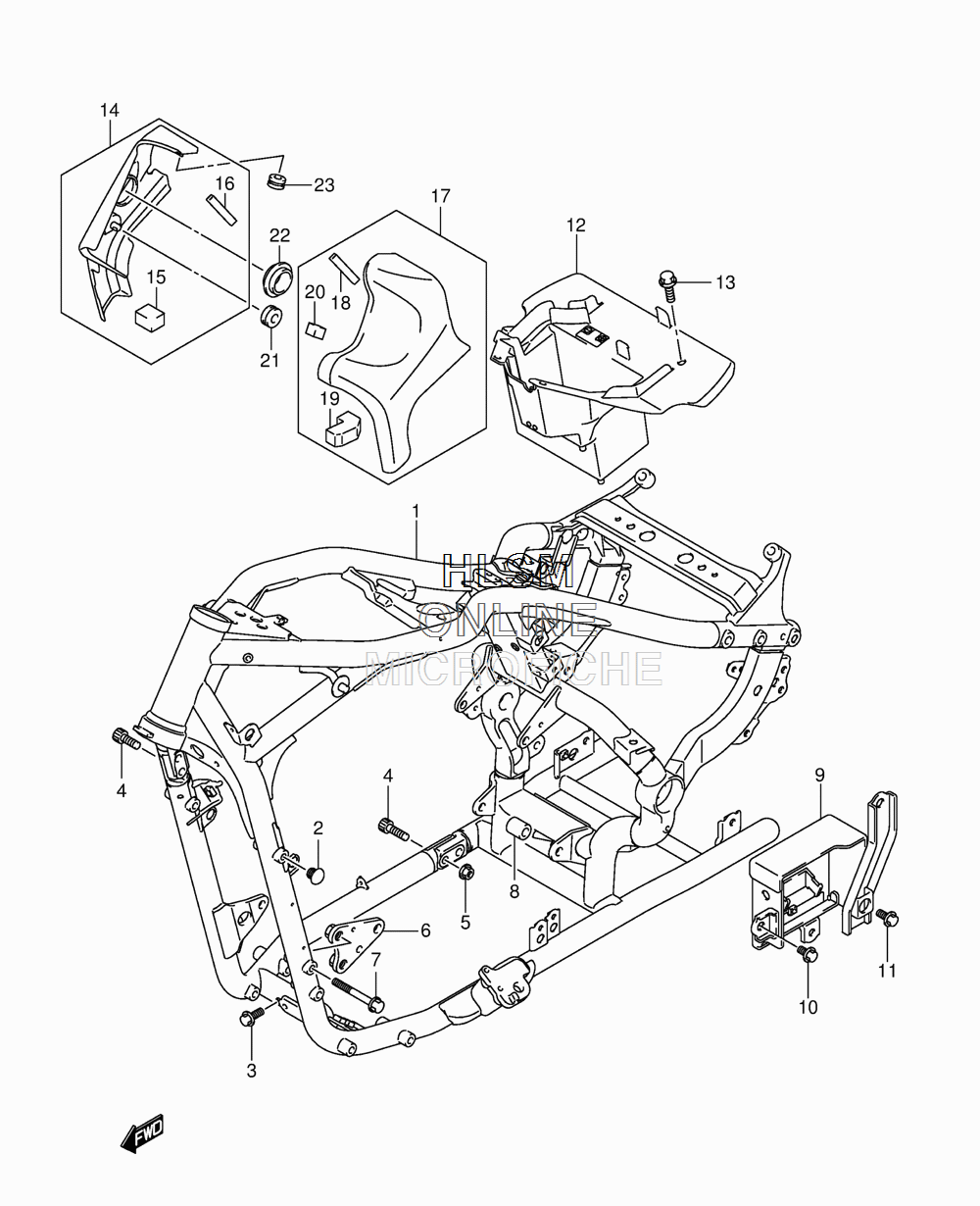

FRAME для Suzuki VZ800 L4 M50 - 2014 года выпуска
-
№АртикулНазвание
-
141100-41F70-019 FRAME (019 - BLACK)FRAME (019 - BLACK)
-
209250-09001 CAP (OD:14)CAP (OD:14)
-
301550-0816B BOLTBOLT
-
407130-1035B BOLTBOLT
-
508319-3110B NUTNUT
-
641920-41F00 PLATE, ENGINE MOUNT LEFT HANDPLATE, ENGINE MOUNT LEFT HAND
-
709112-08013 BOLT (8X65)BOLT (8X65)
-
841941-41F00 SPACER, LOWERSPACER, LOWER
-
941540-41F30 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
1001547-0612A BOLTBOLT
-
1101550-0816A BOLTBOLT
-
1247410-41F02 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
1309113-06001 BOLT (6X16)BOLT (6X16)
-
1447350-39G10-019 COVER, FRAME HEAD RIGHT HAND (019 - BLACK)COVER, FRAME HEAD RIGHT HAND (019 - BLACK)
-
1517798-39G00 CUSHION, LOWERCUSHION, LOWER
-
1653145-40A00 CUSHIONCUSHION
-
1747360-41F12-019 COVER, FRAME HEAD LEFT HAND (019 - BLACK)COVER, FRAME HEAD LEFT HAND (019 - BLACK)
-
1853145-40A00 CUSHIONCUSHION
-
1953146-05G00 CUSHION, LOWERCUSHION, LOWER
-
2094422-06G00 CUSHION, FRONTCUSHION, FRONT
-
2109320-08018 CUSHIONCUSHION
-
2247355-41F01 CAP, HEAD COVER RIGHT HANDCAP, HEAD COVER RIGHT HAND
-
2309320-09501 CUSHIONCUSHION
