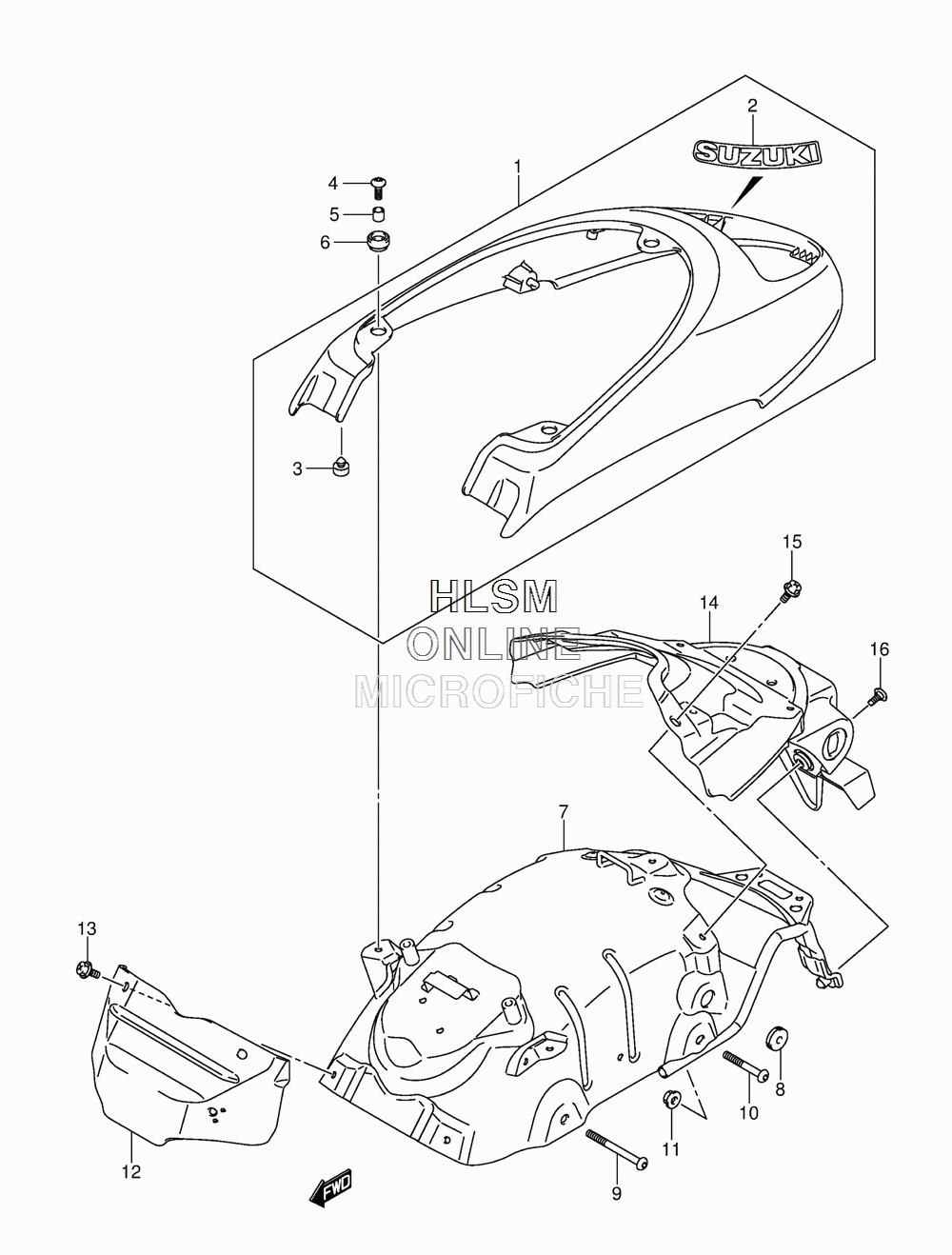

FENDER - REAR для Suzuki VZ800 L4 M50 - 2014 года выпуска
-
№АртикулНазвание
-
163110-39G50-YVB FENDER, REAR (BLACK)FENDER, REAR (BLACK)
-
163110-39G50-YVZ FENDER, REAR (RED)FENDER, REAR (RED)
-
268641-19F00-YES EMBLEM ''SUZUKI'' (SILVER)EMBLEM ''SUZUKI'' (SILVER)
-
309250-06012 PLUG (OD:10)PLUG (OD:10)
-
409136-06105 SCREW (6X20)SCREW (6X20)
-
509180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
647312-37H00 CUSHIONCUSHION
-
763140-39G00 BRACE, FENDERBRACE, FENDER
-
809320-08029 CUSHIONCUSHION
-
909106-08182 BOLT (8X70)BOLT (8X70)
-
1009106-08183 BOLT (8X50)BOLT (8X50)
-
1108316-1008A NUTNUT
-
1263112-39G50 FENDER, FRONTFENDER, FRONT
-
1309111-06107 BOLT (6X12)BOLT (6X12)
-
1463311-39G00 EXTENSIONEXTENSION
-
1509111-06107 BOLT (6X12)BOLT (6X12)
-
1609139-06144 SCREW (6X12)SCREW (6X12)
