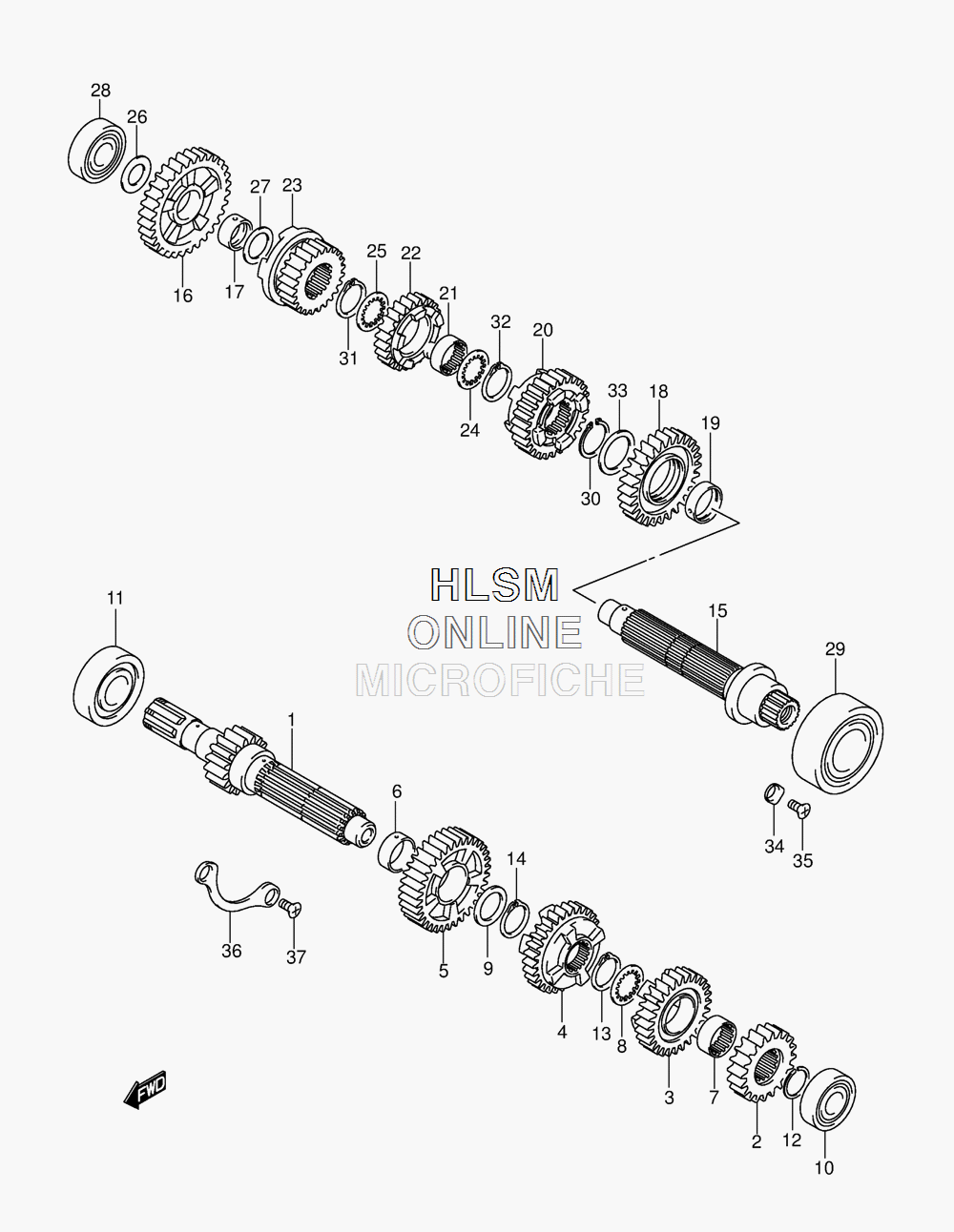

TRANSMISSION для Suzuki VL1500 L4 C90 - 2014 года выпуска
-
№АртикулНазвание
-
124120-40H00 SHAFT, COUNTER (NT:16)SHAFT, COUNTER (NT:16)
-
224221-48G00 GEAR, 2ND DRIVE (NT:20)GEAR, 2ND DRIVE (NT:20)
-
324231-48G10 GEAR, 3RD DRIVE (NT:26)GEAR, 3RD DRIVE (NT:26)
-
424241-06J00 GEAR, 4TH DRIVE (NT:32)GEAR, 4TH DRIVE (NT:32)
-
524251-40H00 GEAR, 5TH DRIVE (NT:33)GEAR, 5TH DRIVE (NT:33)
-
624252-24F10 BUSH, 5TH DRIVE GEARBUSH, 5TH DRIVE GEAR
-
724262-24F10 BUSH, 3RD DRIVE GEARBUSH, 3RD DRIVE GEAR
-
809167-27003 LOCK WASHERLOCK WASHER
-
909181-27014 SHIM (27X36X2.5)SHIM (27X36X2.5)
-
1009262-20080 BEARING (20X52X15)BEARING (20X52X15)
-
1109262-25153 BEARING (25X62X17)BEARING (25X62X17)
-
1209380-27004 CIRCLIPCIRCLIP
-
1309380-27006 CIRCLIPCIRCLIP
-
1409380-27006 CIRCLIPCIRCLIP
-
1524130-40H00 SHAFT, DRIVESHAFT, DRIVE
-
1624311-48G00 GEAR, 1ST DRIVEN (NT:35)GEAR, 1ST DRIVEN (NT:35)
-
1724312-24F10 BUSH, 1ST DRIVEN GEARBUSH, 1ST DRIVEN GEAR
-
1824321-48G10 GEAR, 2ND DRIVEN (NT:28)GEAR, 2ND DRIVEN (NT:28)
-
1924322-48G00 BUSH, 2ND DRIVEN GEARBUSH, 2ND DRIVEN GEAR
-
2024331-06J00 GEAR, 3RD DRIVEN (NT:27)GEAR, 3RD DRIVEN (NT:27)
-
2124332-24F10 BUSH, 4TH DRIVEN GEARBUSH, 4TH DRIVEN GEAR
-
2224341-40H00 GEAR, 4TH DRIVEN (NT:28)GEAR, 4TH DRIVEN (NT:28)
-
2324351-40H00 GEAR, 5TH DRIVEN (NT:26)GEAR, 5TH DRIVEN (NT:26)
-
2409167-30008 LOCK WASHERLOCK WASHER
-
2509167-30008 LOCK WASHERLOCK WASHER
-
2609181-22223 SHIM (22X34X1)SHIM (22X34X1)
-
2709181-24005 SHIM (24X34X1)SHIM (24X34X1)
-
2809262-22024 BEARING (22X56X16)BEARING (22X56X16)
-
2909267-35004 BEARING (35X72X27)BEARING (35X72X27)
-
3009380-30009 CIRCLIPCIRCLIP
-
3109380-30009 CIRCLIPCIRCLIP
-
3209380-30009 CIRCLIPCIRCLIP
-
3308211-30403 WASHERWASHER
-
3424741-20A00 RETAINER, DRIVE SHAFT LEFT HANDRETAINER, DRIVE SHAFT LEFT HAND
-
3509126-06011 SCREW (6X12)SCREW (6X12)
-
3624741-27A00 RETAINER, COUNTER SHAFT RIGHT HANDRETAINER, COUNTER SHAFT RIGHT HAND
-
3709126-06011 SCREW (6X12)SCREW (6X12)
