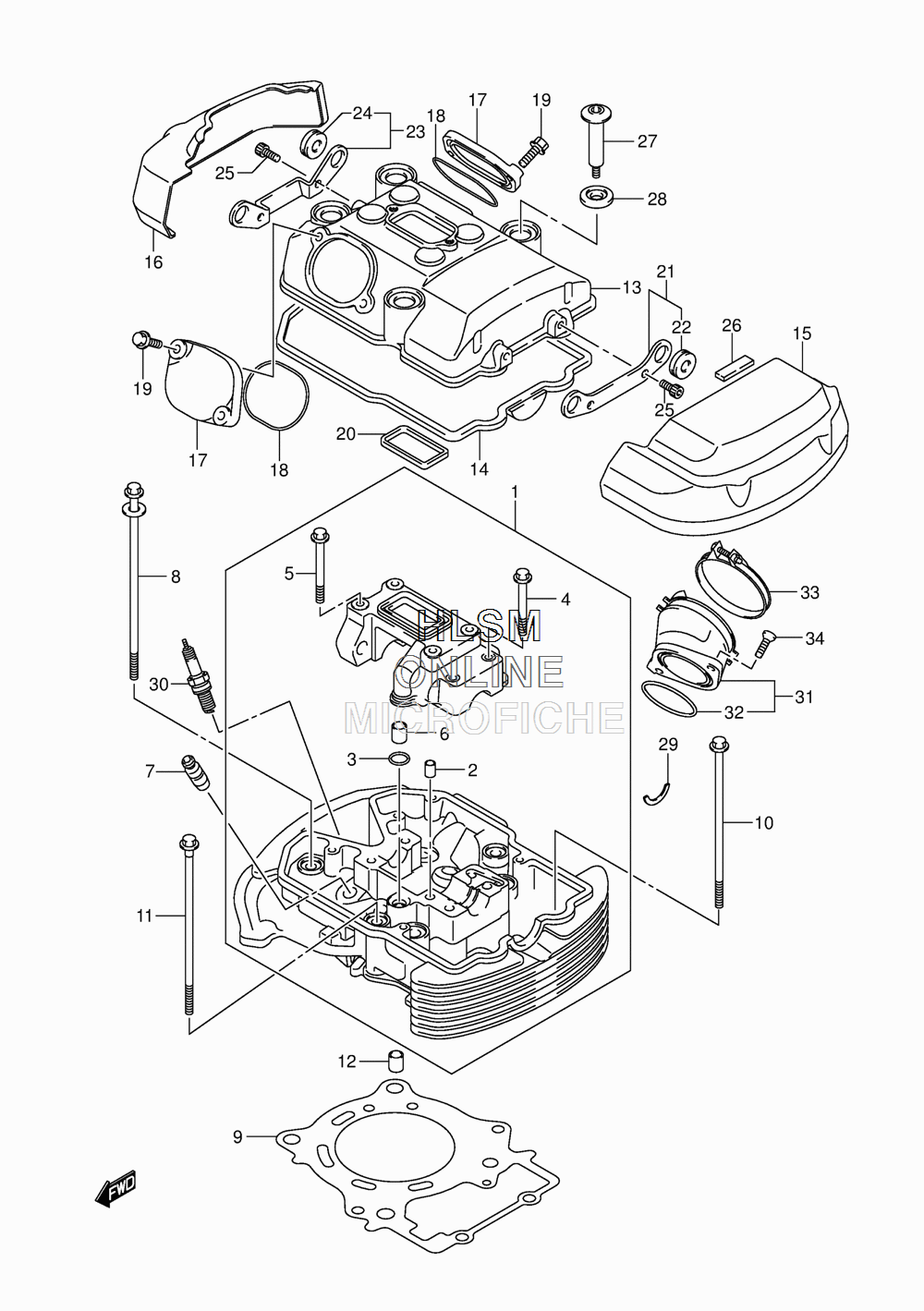

CYLINDER HEAD (FRONT) (CANADA) для Suzuki VL1500 L4 C90 - 2014 года выпуска`
-
№АртикулНазвание
-
111101-40H10 HEAD ASSY, CYLINDER FRONTHEAD ASSY, CYLINDER FRONT
-
209206-08001 PIN (8X11)PIN (8X11)
-
309280-11001 O RING (D:2.4,ID:10.8)O RING (D:2.4,ID:10.8)
-
401547-0650A BOLTBOLT
-
501547-0665A BOLTBOLT
-
604211-11129 PINPIN
-
711115-32E70 GUIDE, VALVE (OS 0.3)GUIDE, VALVE (OS 0.3)
-
811117-05H00 BOLT, CYLINDER HEADBOLT, CYLINDER HEAD
-
911141-40H00 GASKET, CYLINDER HEAD FRONTGASKET, CYLINDER HEAD FRONT
-
1009103-08528 BOLT (8X160)BOLT (8X160)
-
1109103-08529 BOLT (8X180)BOLT (8X180)
-
1204211-13189 PINPIN
-
1311171-40H00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
1411173-40H00 GASKET, HEAD COVER NO.1GASKET, HEAD COVER NO.1
-
1511174-40H00 CAP, CYLINDER HEAD COVER NO.1CAP, CYLINDER HEAD COVER NO.1
-
1611175-40H00 CAP, CYLINDER HEAD COVER NO.2CAP, CYLINDER HEAD COVER NO.2
-
1711176-40H00 CAP, INSPECTIONCAP, INSPECTION
-
1809280-60004 O RING (D:2.4,ID:23)O RING (D:2.4,ID:23)
-
1901547-0620A BOLTBOLT
-
2011177-40H00 GASKET, HEAD COVER NO.2GASKET, HEAD COVER NO.2
-
2111180-40H00 BRACKET, HEAD COVER CAP NO.1BRACKET, HEAD COVER CAP NO.1
-
2209320-08013 CUSHIONCUSHION
-
2311180-40H10 BRACKET, HEAD COVER CAP NO.2BRACKET, HEAD COVER CAP NO.2
-
2409320-08013 CUSHIONCUSHION
-
2507130-0612A BOLTBOLT
-
2694424-03H00 CUSHION, HEAD COVER CAPCUSHION, HEAD COVER CAP
-
2709106-07022 BOLT (7X57)BOLT (7X57)
-
2811191-27E00 WASHERWASHER
-
2909390-22002 C RINGC RING
-
3009482-00620 SPARK PLUG (NGK, CPR6EA-9) (STD)SPARK PLUG (NGK, CPR6EA-9) (STD)
-
3009482-00626 SPARK PLUG (DENSO, U20EPR9) (STD)SPARK PLUG (DENSO, U20EPR9) (STD)
-
3009482-00516 SPARK PLUG (NGK, CR7E) (OPT)SPARK PLUG (NGK, CR7E) (OPT)
-
3009482-00515 SPARK PLUG (DENSO, U22ESR-N) (OPT)SPARK PLUG (DENSO, U22ESR-N) (OPT)
-
3113101-40HA0 PIPE ASSY, INTAKEPIPE ASSY, INTAKE
-
3209280-45004 O RING (D:2.4,ID:44.7)O RING (D:2.4,ID:44.7)
-
3313170-40H00 CLAMPCLAMP
-
3409120-06008 BOLT (6X20.5)BOLT (6X20.5)
