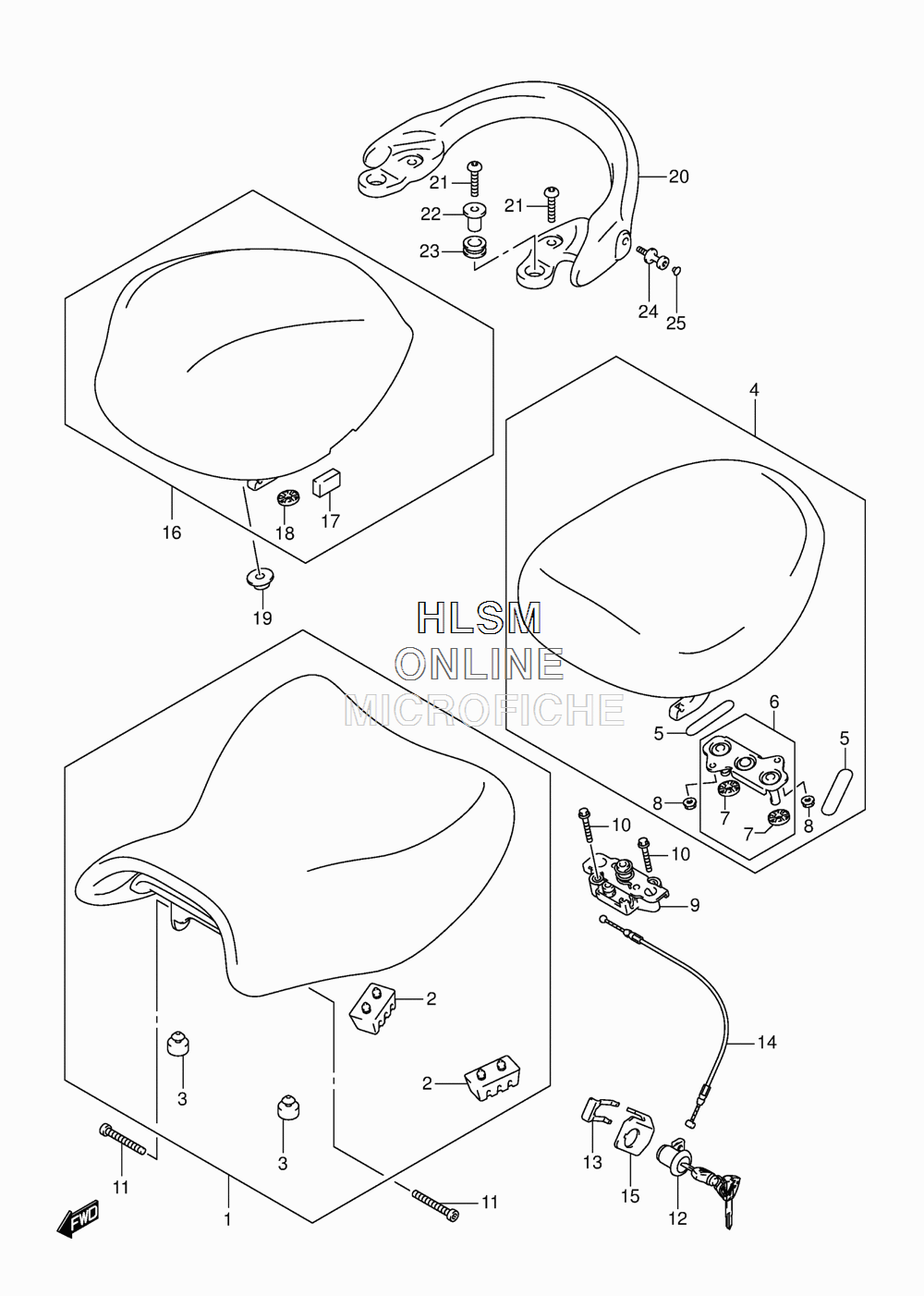

SEAT для Suzuki GSX-1300R L4 - 2014 года выпуска
-
№АртикулНазвание
-
145100-15H01-EJY SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
245149-45330 CUSHIONCUSHION
-
309321-10011 CUSHIONCUSHION
-
445300-15H10-U6H SEAT ASSY, PILLION (BLACK)SEAT ASSY, PILLION (BLACK)
-
545149-15H00 CUSHIONCUSHION
-
645290-15H00 STRIKER, SEAT LOCKSTRIKER, SEAT LOCK
-
745213-42F00 CUSHIONCUSHION
-
808316-1006A NUTNUT
-
945220-15H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1001547-0630A BOLTBOLT
-
1145191-15H00 BOLT, SEAT FRONTBOLT, SEAT FRONT
-
1295700-14F00 LOCK ASSY, SEATLOCK ASSY, SEAT
-
1345289-11F00 PLATE, SEAT LOCKPLATE, SEAT LOCK
-
1445280-18G01 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1545288-14F20 GUIDE, CABLEGUIDE, CABLE
-
1645550-15H01-YVB BOX, SEAT TAIL (BLACK)BOX, SEAT TAIL (BLACK)
-
1645550-15H01-YVZ BOX, SEAT TAIL (RED)BOX, SEAT TAIL (RED)
-
1645550-15H01-YKY BOX, SEAT TAIL (BLUE)BOX, SEAT TAIL (BLUE)
-
1745553-15H00 CUSHIONCUSHION
-
1845213-42F00 CUSHIONCUSHION
-
1947190-24F01 WASHERWASHER
-
2046211-15H00-YVB HANDLE, PILLION RIDER (BLACK)HANDLE, PILLION RIDER (BLACK)
-
2046211-15H00-YVZ HANDLE, PILLION RIDER (RED)HANDLE, PILLION RIDER (RED)
-
2046211-15H00-YKY HANDLE, PILLION RIDER (BLUE)HANDLE, PILLION RIDER (BLUE)
-
2109106-08137 BOLT (8X33)BOLT (8X33)
-
2247190-24F11 WASHER, PILLION RIDER HANDLEWASHER, PILLION RIDER HANDLE
-
2346217-24F00 CUSHION, PILLION RIDER HANDLECUSHION, PILLION RIDER HANDLE
-
2446212-24F11 HOOK, HANDLEHOOK, HANDLE
-
2509250-05009 CAP (OD:10)CAP (OD:10)
