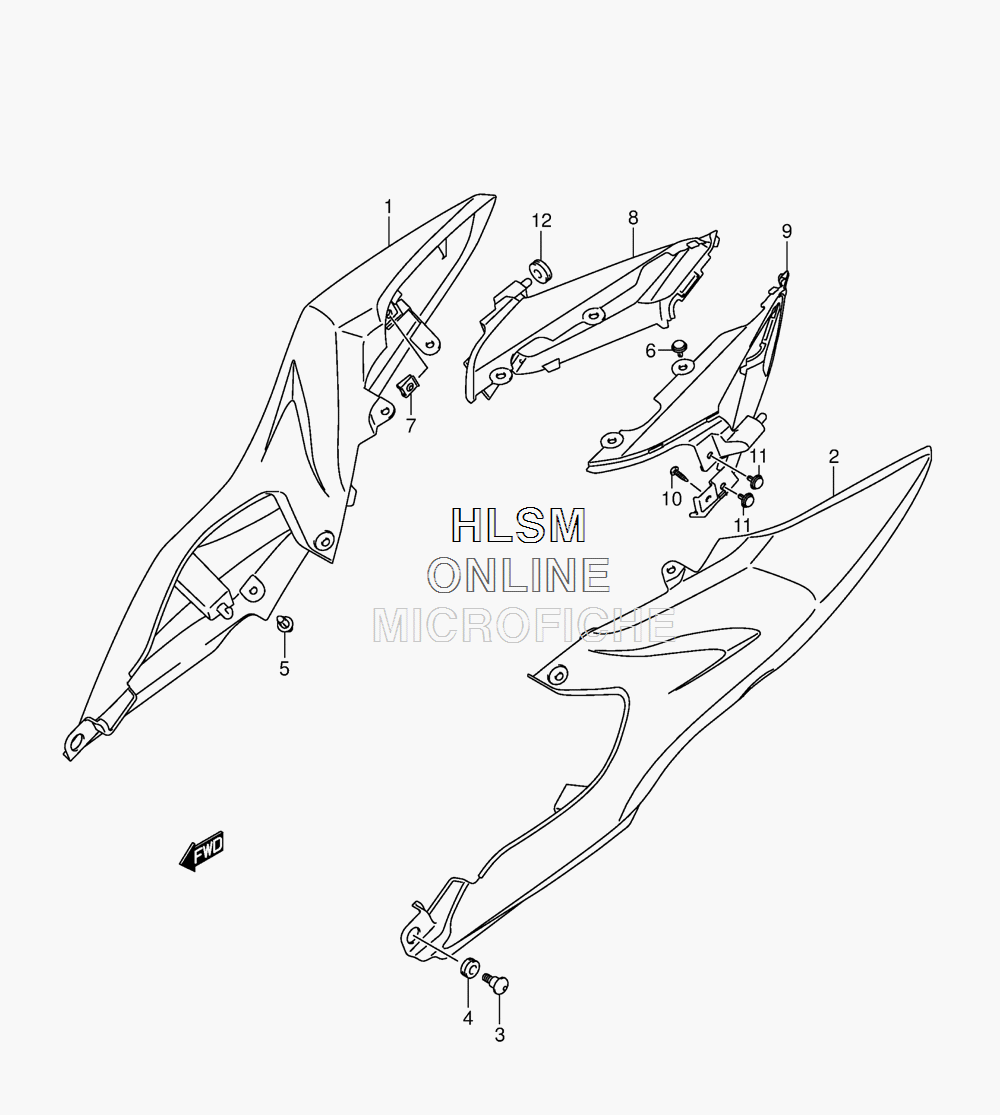

SIDE COVER для Suzuki GSX-1000R L4 - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-47H00-YWW COVER, FRAME RIGHT HAND (WHITE) FOR AGQ (BLUE/WHITE)
    COVER, FRAME RIGHT HAND (WHITE) FOR AGQ (BLUE/WHITE)
  • 1
    47111-47H00-YVB COVER, FRAME RIGHT HAND (BLACK) FOR AR4 (BLACK/GRAY)
    COVER, FRAME RIGHT HAND (BLACK) FOR AR4 (BLACK/GRAY)
  • 2
    47211-47H00-YWW COVER, FRAME LEFT HAND (WHITE) FOR AGQ (BLUE/WHITE)
    COVER, FRAME LEFT HAND (WHITE) FOR AGQ (BLUE/WHITE)
  • 2
    47211-47H00-YVB COVER, FRAME LEFT HAND (BLACK) FOR AR4 (BLACK/GRAY)
    COVER, FRAME LEFT HAND (BLACK) FOR AR4 (BLACK/GRAY)
  • 3
    47133-43H00 SCREW, FRONT
    SCREW, FRONT
  • 4
    09320-08021 CUSHION
    CUSHION
  • 5
    09409-06314-5PK CLIP (BLACK)
    CLIP (BLACK)
  • 6
    09409-06328 CLIP
    CLIP
  • 7
    09148-05038 NUT
    NUT
  • 8
    47611-47H00-YVB COVER, FRAME REAR RIGHT HAND (BLACK) FOR AGQ (BLUE/WHITE)
    COVER, FRAME REAR RIGHT HAND (BLACK) FOR AGQ (BLUE/WHITE)
  • 8
    47611-47H00-YKV COVER, FRAME REAR RIGHT HAND (BLACK) FOR AR4 (BLACK/GRAY)
    COVER, FRAME REAR RIGHT HAND (BLACK) FOR AR4 (BLACK/GRAY)
  • 9
    47621-47H00-YVB COVER, FRAME REAR LEFT HAND (BLACK) FOR AGQ (BLUE/WHITE)
    COVER, FRAME REAR LEFT HAND (BLACK) FOR AGQ (BLUE/WHITE)
  • 9
    47621-47H00-YKV COVER, FRAME REAR LEFT HAND (BLACK) FOR AR4 (BLACK/GRAY)
    COVER, FRAME REAR LEFT HAND (BLACK) FOR AR4 (BLACK/GRAY)
  • 10
    03541-0512A SCREW
    SCREW
  • 11
    09409-06328 CLIP
    CLIP
  • 12
    09320-06504 CUSHION
    CUSHION
