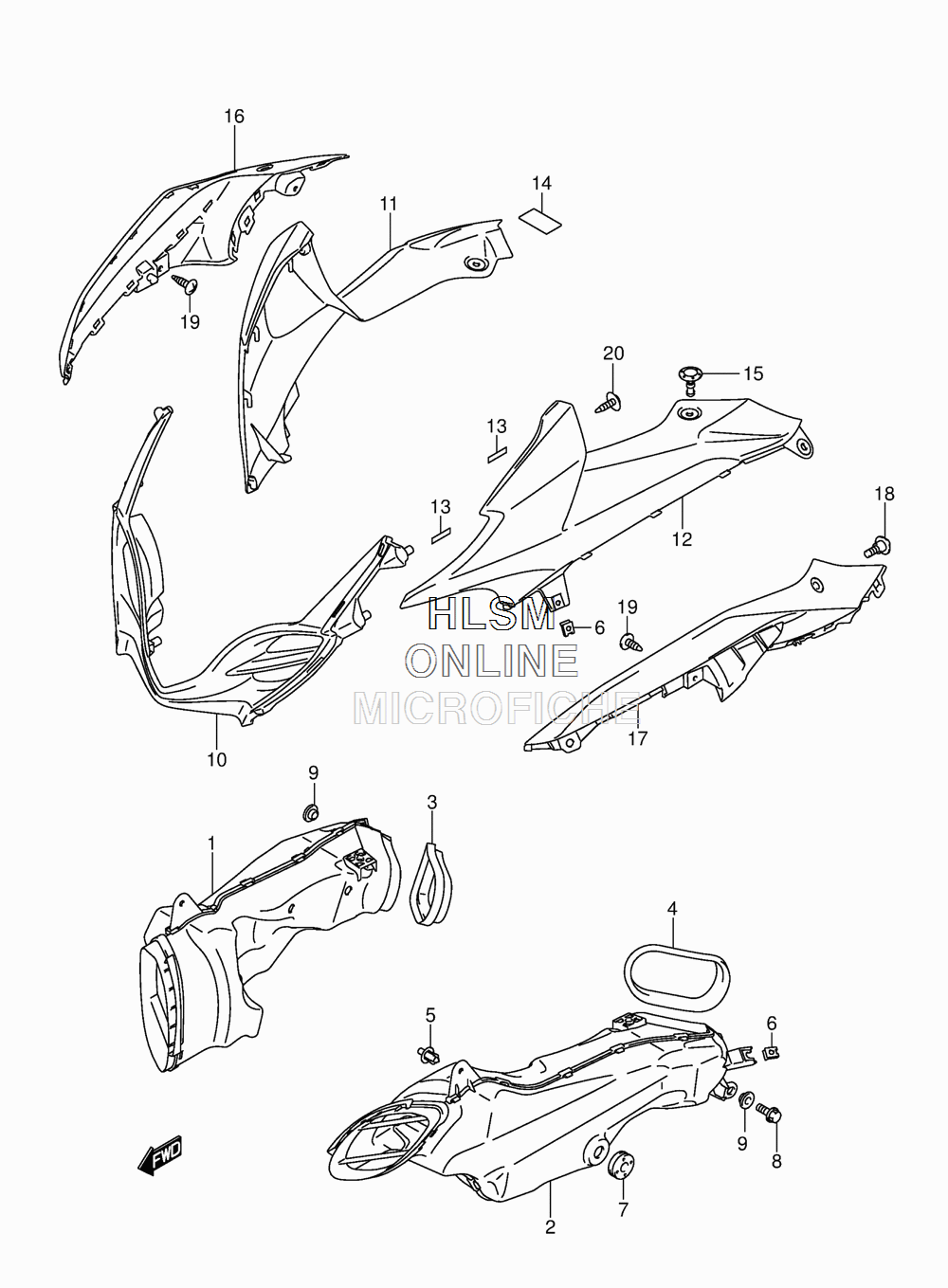

INTAKE PIPE для Suzuki GSX-1000R L4 - 2014 года выпуска

№

Артикул

Название
1

94420-47H00 PIPE, AIR INTAKE RIGHT HAND

PIPE, AIR INTAKE RIGHT HAND
2

94430-47H00 PIPE, AIR INTAKE LEFT HAND

PIPE, AIR INTAKE LEFT HAND
3

94423-47H00 MOLDING, RIGHT HAND

MOLDING, RIGHT HAND
4

94433-47H00 MOLDING, LEFT HAND

MOLDING, LEFT HAND
5

09409-06314-5PK CLIP (BLACK)

CLIP (BLACK)
6

09148-05052 NUT

NUT
7

09320-08028 CUSHION

CUSHION
8

09103-06310 BOLT

BOLT
9

09169-06082 WASHER

WASHER
10

94671-47H10-YHG COVER, INTAKE FRONT (BLUE) FOR AGQ (BLUE/WHITE)

COVER, INTAKE FRONT (BLUE) FOR AGQ (BLUE/WHITE)
10

94671-47H10-YKV COVER, INTAKE FRONT (SILVER) FOR AR4 (BLACK/GRAY)

COVER, INTAKE FRONT (SILVER) FOR AR4 (BLACK/GRAY)
11

94672-47H10-YSF COVER, INTAKE RIGHT HAND (BLUE) FOR AGQ (BLUE/WHITE)

COVER, INTAKE RIGHT HAND (BLUE) FOR AGQ (BLUE/WHITE)
11

94672-47H10-YVB COVER, INTAKE RIGHT HAND (BLACK) FOR AR4 (BLACK/GRAY)

COVER, INTAKE RIGHT HAND (BLACK) FOR AR4 (BLACK/GRAY)
12

94682-47H10-YSF COVER, INTAKE LEFT HAND (BLUE) FOR AGQ (BLUE/WHITE)

COVER, INTAKE LEFT HAND (BLUE) FOR AGQ (BLUE/WHITE)
12

94682-47H10-YVB COVER, INTAKE LEFT HAND (BLACK) FOR AR4 (BLACK/GRAY)

COVER, INTAKE LEFT HAND (BLACK) FOR AR4 (BLACK/GRAY)
13

94443-06G00 TAPE

TAPE
14

33652-13E00 CUSHION

CUSHION
15

94479-35F00 CLIP

CLIP
16

94473-47H00-YWW COWL, SIDE UPPER RIGHT HAND (BLUE) FOR AGQ (BLUE/WHITE)

COWL, SIDE UPPER RIGHT HAND (BLUE) FOR AGQ (BLUE/WHITE)
16

94473-47H00-PGZ COWL, SIDE UPPER RIGHT HAND (BLACK) FOR AG4 (BLACK/GRAY)

COWL, SIDE UPPER RIGHT HAND (BLACK) FOR AG4 (BLACK/GRAY)
17

94483-47H00-YWW COWL, SIDE UPPER LEFT HAND (BLUE) FOR AGQ (BLUE/WHITE)

COWL, SIDE UPPER LEFT HAND (BLUE) FOR AGQ (BLUE/WHITE)
17

94483-47H00-PGZ COWL, SIDE UPPER LEFT HAND (BLACK) FOR AG4 (BLACK/GRAY)

COWL, SIDE UPPER LEFT HAND (BLACK) FOR AG4 (BLACK/GRAY)
18

09139-05077 SCREW (5X16)

SCREW (5X16)
19

03541-0516A SCREW

SCREW
20

09132-05050 SCREW (5X12)

SCREW (5X12)
