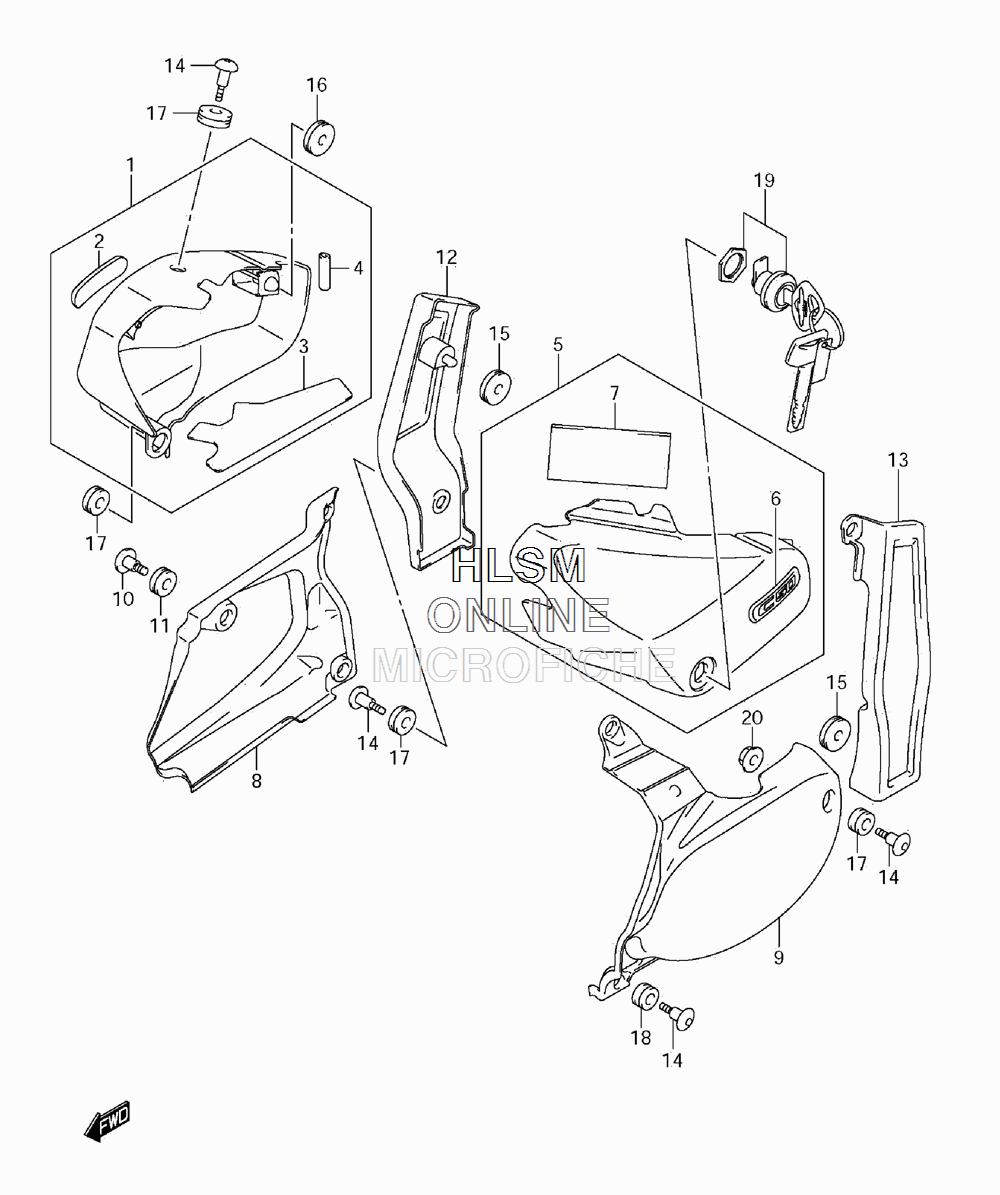

SIDE COVER для Suzuki VZ800C L2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    47110-41F60-YVB COVER, FRAME RIGHT HAND (YVB - BLACK FOR RED/BLACK) (INCL. 2-4)
    COVER, FRAME RIGHT HAND (YVB - BLACK FOR RED/BLACK) (INCL. 2-4)
  • 1
    47110-41F60-YWC COVER, FRAME RIGHT HAND (YWC - GRAY FOR WHITE/GREY) (INCL. 2-4)
    COVER, FRAME RIGHT HAND (YWC - GRAY FOR WHITE/GREY) (INCL. 2-4)
  • 2
    68131-41F40 EMBLEM, ''C50''
    EMBLEM, ''C50''
  • 3
    47166-41F00 SHIELD, FRAME COVER RIGHT HAND
    SHIELD, FRAME COVER RIGHT HAND
  • 4
    94631-35F00 MOLDING, RIGHT HAND
    MOLDING, RIGHT HAND
  • 5
    47210-41FL0-YVB COVER, FRAME LEFT HAND (YVB - BLACK FOR RED/BLACK) (INCL. 6, 7)
    COVER, FRAME LEFT HAND (YVB - BLACK FOR RED/BLACK) (INCL. 6, 7)
  • 5
    47210-41FL0-YWC COVER, FRAME LEFT HAND (YWC - GRAY FOR WHITE/GREY) (INCL. 6, 7)
    COVER, FRAME LEFT HAND (YWC - GRAY FOR WHITE/GREY) (INCL. 6, 7)
  • 6
    68131-41F40 EMBLEM, ''C50''
    EMBLEM, ''C50''
  • 7
    47217-41F00 CUSHION, LEFT HAND
    CUSHION, LEFT HAND
  • 8
    47130-41F00 COVER, SIDE LOWER RIGHT HAND
    COVER, SIDE LOWER RIGHT HAND
  • 9
    47231-41F00 COVER, SIDE LOWER LEFT HAND
    COVER, SIDE LOWER LEFT HAND
  • 10
    47133-43H00 SCREW
    SCREW
  • 11
    09320-08021 CUSHION
    CUSHION
  • 12
    47141-41F01-019 COVER, SIDE REAR RIGHT HAND (019 - BLACK)
    COVER, SIDE REAR RIGHT HAND (019 - BLACK)
  • 13
    47241-41F00-019 COVER, SIDE REAR LEFT HAND (019 - BLACK)
    COVER, SIDE REAR LEFT HAND (019 - BLACK)
  • 14
    09139-06126 SCREW (6X20)
    SCREW (6X20)
  • 15
    09320-08018 CUSHION
    CUSHION
  • 16
    09320-08028 CUSHION
    CUSHION
  • 17
    09320-09501 CUSHION
    CUSHION
  • 18
    09320-09045 CUSHION
    CUSHION
  • 19
    95700-07860 LOCK SET, FUEL LID
    LOCK SET, FUEL LID
  • 20
    08316-1006B NUT
    NUT
