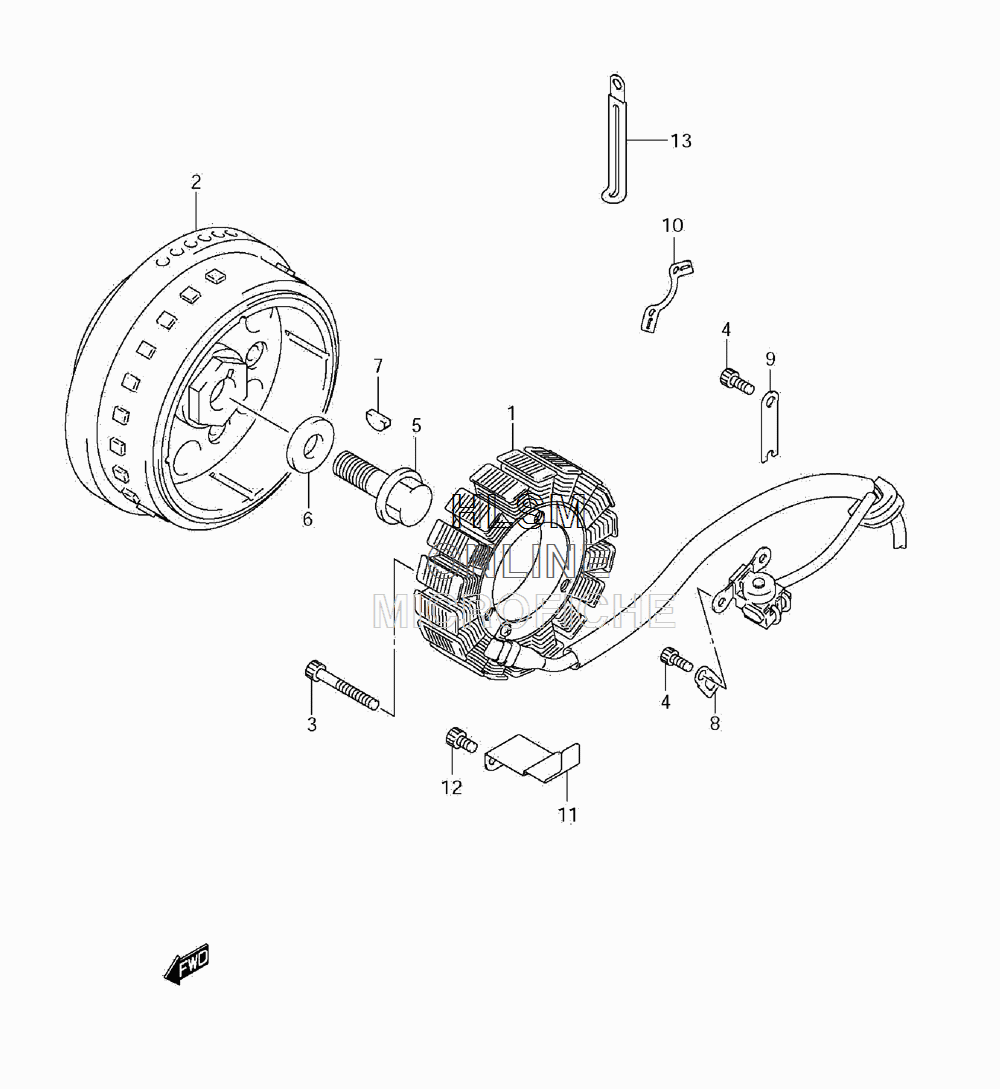

MAGNETO для Suzuki VZ800C L2 - 2012 года выпуска
-
№АртикулНазвание
-
132101-41F10 STATORSTATOR
-
232102-41F10 ROTORROTOR
-
307130-0640A BOLTBOLT
-
407130-0510A BOLTBOLT
-
509103-14001 BOLT (14X43)BOLT (14X43)
-
609160-14021 WASHER (14X29X4)WASHER (14X29X4)
-
709420-05007 KEYKEY
-
831497-45000 CLAMPCLAMP
-
932371-38A10 CLAMPCLAMP
-
1032371-41F00 CLAMPCLAMP
-
1132371-45C00 CLAMPCLAMP
-
1207130-0610A BOLTBOLT
-
1309404-08419 CLAMP (L:97)CLAMP (L:97)
