GASKET SET для Suzuki GSX-R1000 L2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1

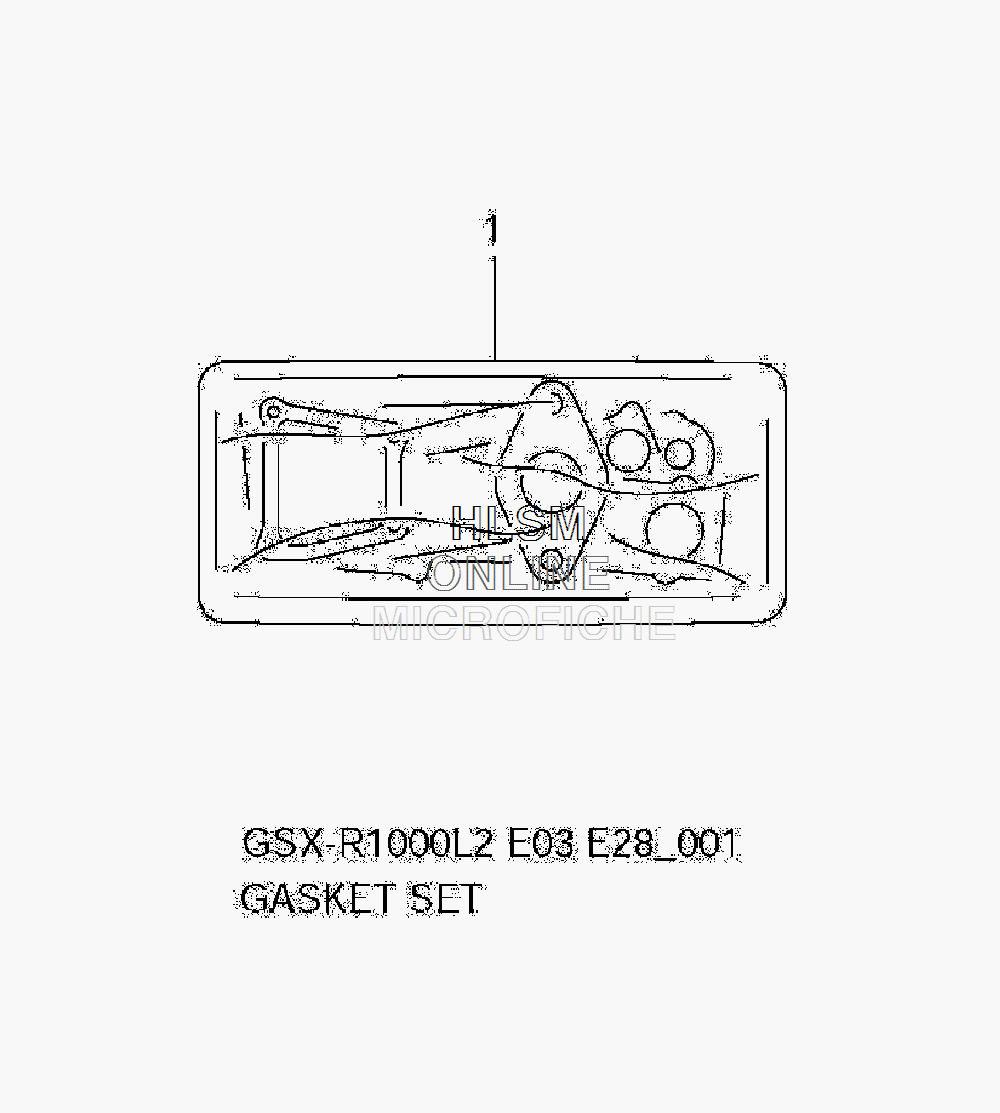

    11401-47841 GASKET SET (SHOWN)
    GASKET SET (SHOWN)
  • 2
    11141-47H01 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 3
    11173-35F00 GASKET, CYLINDER HEAD COVER NO.1
    GASKET, CYLINDER HEAD COVER NO.1
  • 4
    11178-33E00 GASKET, CYLINDER HEAD COVER NO.2
    GASKET, CYLINDER HEAD COVER NO.2
  • 5
    11182-35F10 COVER, 2ND AIR PASSAGE
    COVER, 2ND AIR PASSAGE
  • 6
    11191-27E00 WASHER, HEAD COVER
    WASHER, HEAD COVER
  • 7
    11482-47H00 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 8
    11483-47H00 GASKET, MAGNETO COVER
    GASKET, MAGNETO COVER
  • 9
    11489-47H00 GASKET, OIL PAN
    GASKET, OIL PAN
  • 10
    12837-02H00 GASKET, TENSIONER ADJUSTER
    GASKET, TENSIONER ADJUSTER
  • 11
    14181-22D01 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
