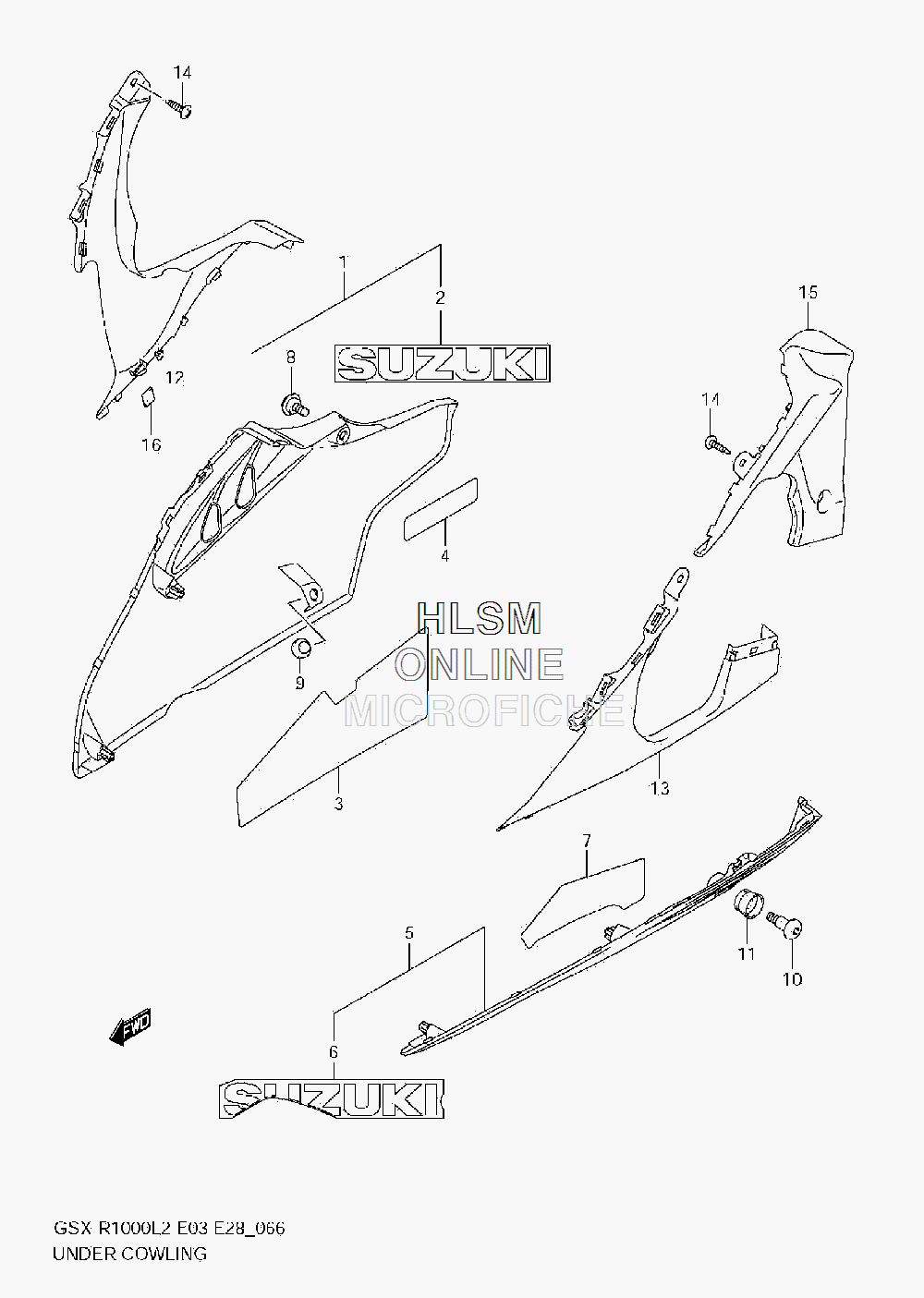

COWLING - UNDER BODY для Suzuki GSX-R1000 L2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    94470-47H00-YBD COWL, UNDER RIGHT HAND (INCL. 2) (YBD - WHITE FOR GLR)
    COWL, UNDER RIGHT HAND (INCL. 2) (YBD - WHITE FOR GLR)
  • 1
    94470-47H00-4UX COWL, UNDER RIGHT HAND (INCL. 2) (4UX - BLACK FOR KGL)
    COWL, UNDER RIGHT HAND (INCL. 2) (4UX - BLACK FOR KGL)
  • 2
    68181-33C20-019 EMBLEM, ''SUZUKI'' (BLACK)
    EMBLEM, ''SUZUKI'' (BLACK)
  • 3
    94476-47H00 SHIELD, HEAT FRONT RIGHT HAND
    SHIELD, HEAT FRONT RIGHT HAND
  • 4
    44194-31G00 SHIELD, HEAT REAR RIGHT HAND
    SHIELD, HEAT REAR RIGHT HAND
  • 5
    94480-47H00-YBD COWL, UNDER LEFT HAND (INCL. 6) (YBD - WHITE FOR GLR)
    COWL, UNDER LEFT HAND (INCL. 6) (YBD - WHITE FOR GLR)
  • 5
    94480-47H00-4UX COWL, UNDER LEFT HAND (INCL. 6) (4UX - BLACK FOR KGL)
    COWL, UNDER LEFT HAND (INCL. 6) (4UX - BLACK FOR KGL)
  • 6
    68191-47H00-019 EMBLEM, ''SUZUKI'' (BLACK)
    EMBLEM, ''SUZUKI'' (BLACK)
  • 7
    94486-47H00 SHIELD, HEAT LEFT HAND
    SHIELD, HEAT LEFT HAND
  • 8
    09139-05064 SCREW (5X13)
    SCREW (5X13)
  • 9
    09321-10018 CUSHION
    CUSHION
  • 10
    09139-06126 SCREW (6X20)
    SCREW (6X20)
  • 11
    94479-15H00 CUSHION
    CUSHION
  • 12
    94474-47H00 COWL, SIDE LOWER RIGHT HAND
    COWL, SIDE LOWER RIGHT HAND
  • 13
    94484-47H00 COWL, SIDE LOWER LEFT HAND
    COWL, SIDE LOWER LEFT HAND
  • 14
    03541-0516A SCREW
    SCREW
  • 15
    94482-47H00 COVER, SIDE COWL LEFT HAND
    COVER, SIDE COWL LEFT HAND
  • 16
    63115-37H00 CUSHION, SIDE COWL
    CUSHION, SIDE COWL
