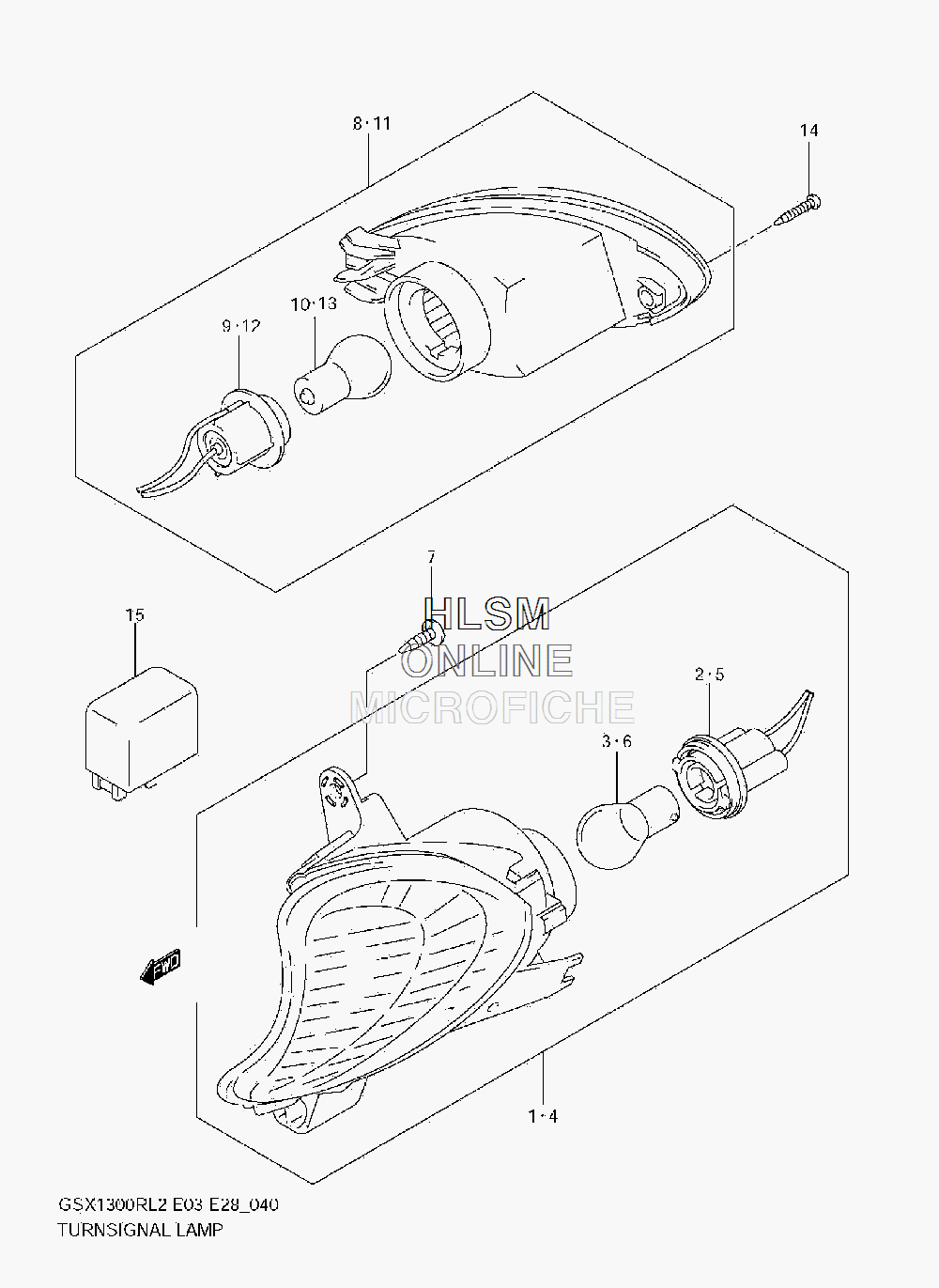

TURN SIGNAL ASSY. для Suzuki GSX-1300R L2 - 2012 года выпуска
-
№АртикулНазвание
-
35601-15H01 LAMP ASSY, FRONT TURN, RIGHT HAND (INCL. 2, 3)LAMP ASSY, FRONT TURN, RIGHT HAND (INCL. 2, 3)
-
235618-15H00 SOCKET AND CORD, RIGHT HANDSOCKET AND CORD, RIGHT HAND
-
309471-12186 BULB (12V21W)BULB (12V21W)
-
435602-15H01 LAMP ASSY, FRONT TURN, LEFT HAND (INCL. 5, 6)LAMP ASSY, FRONT TURN, LEFT HAND (INCL. 5, 6)
-
535638-15H00 SOCKET AND CORD, LEFT HANDSOCKET AND CORD, LEFT HAND
-
609471-12186 BULB (12V21W)BULB (12V21W)
-
703541-0516B SCREWSCREW
-
835603-15H01 LAMP ASSY, REAR TURN, RIGHT HAND (INCL. 9. 10)LAMP ASSY, REAR TURN, RIGHT HAND (INCL. 9. 10)
-
935658-15H00 SOCKET AND CORD, RIGHT HANDSOCKET AND CORD, RIGHT HAND
-
1009471-12186 BULB (12V21W)BULB (12V21W)
-
1135604-15H01 LAMP ASSY, REAR TURN, LEFT HAND (INCL. 12, 13)LAMP ASSY, REAR TURN, LEFT HAND (INCL. 12, 13)
-
1235678-15H00 SOCKET AND CORD, LEFT HANDSOCKET AND CORD, LEFT HAND
-
1309471-12186 BULB (12V21W)BULB (12V21W)
-
1409132-04032 SCREW (4X20)SCREW (4X20)
-
1538610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
