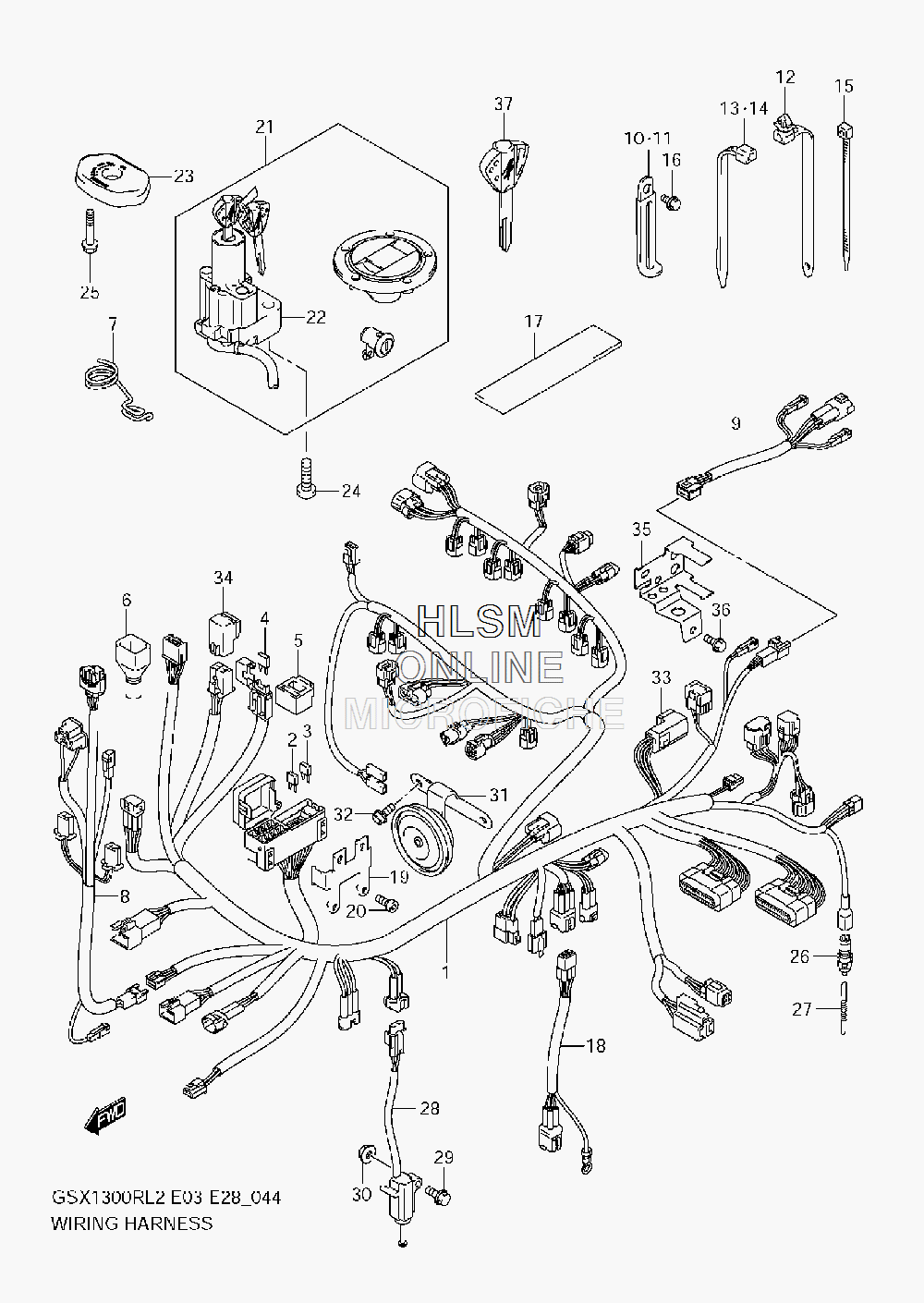

ELECTRICAL - WIRING HARNESS (CALIF ONLY) для Suzuki GSX-1300R L2 - 2012 года выпуска`
-
№АртикулНазвание
-
136610-15H40 HARNESS, WIRINGHARNESS, WIRING
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
409481-15101 FUSE (15A)FUSE (15A)
-
536742-39D00 HOLDERHOLDER
-
636618-33E00 BOOT, METERBOOT, METER
-
736619-15H00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
836620-15H00 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
936857-15H00 WIRE, REAR COMBWIRE, REAR COMB
-
1009404-06429 CLAMP (L:45)CLAMP (L:45)
-
1109404-06435 CLAMP (L:135)CLAMP (L:135)
-
1209407-14408 CLAMP (L:120)CLAMP (L:120)
-
1309407-14403 CLAMP (L:125)CLAMP (L:125)
-
1409407-18402 CLAMP (L:165)CLAMP (L:165)
-
1509407-14407 CLAMP (L:145)CLAMP (L:145)
-
1601550-0610A BOLTBOLT
-
1736920-45G00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1836855-15H00 WIRE, O2 SENSORWIRE, O2 SENSOR
-
1936744-24F00 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
2007120-0510B BOLTBOLT
-
2137100-15860 LOCK SETLOCK SET
-
2237100-15H80 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
2337180-15H00 COVER, STEERING LOCKCOVER, STEERING LOCK
-
2409139-08016 BOLT (8X20)BOLT (8X20)
-
2501547-0530A BOLTBOLT
-
2637740-19F00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2709443-06012 BRAKE SWITCH SPRINGBRAKE SWITCH SPRING
-
2837840-24F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2909103-08357 BOLT (8X35)BOLT (8X35)
-
3008316-1008B NUTNUT
-
3138500-24F00 HORN ASSYHORN ASSY
-
3201550-0612B BOLTBOLT
-
3338740-26E00 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
3438740-26E00 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
3538741-24F00 BRACKET, FUEL PUMP RELAYBRACKET, FUEL PUMP RELAY
-
3601550-0612B BOLTBOLT
-
3737146-15H00 KEY, BLANKKEY, BLANK
