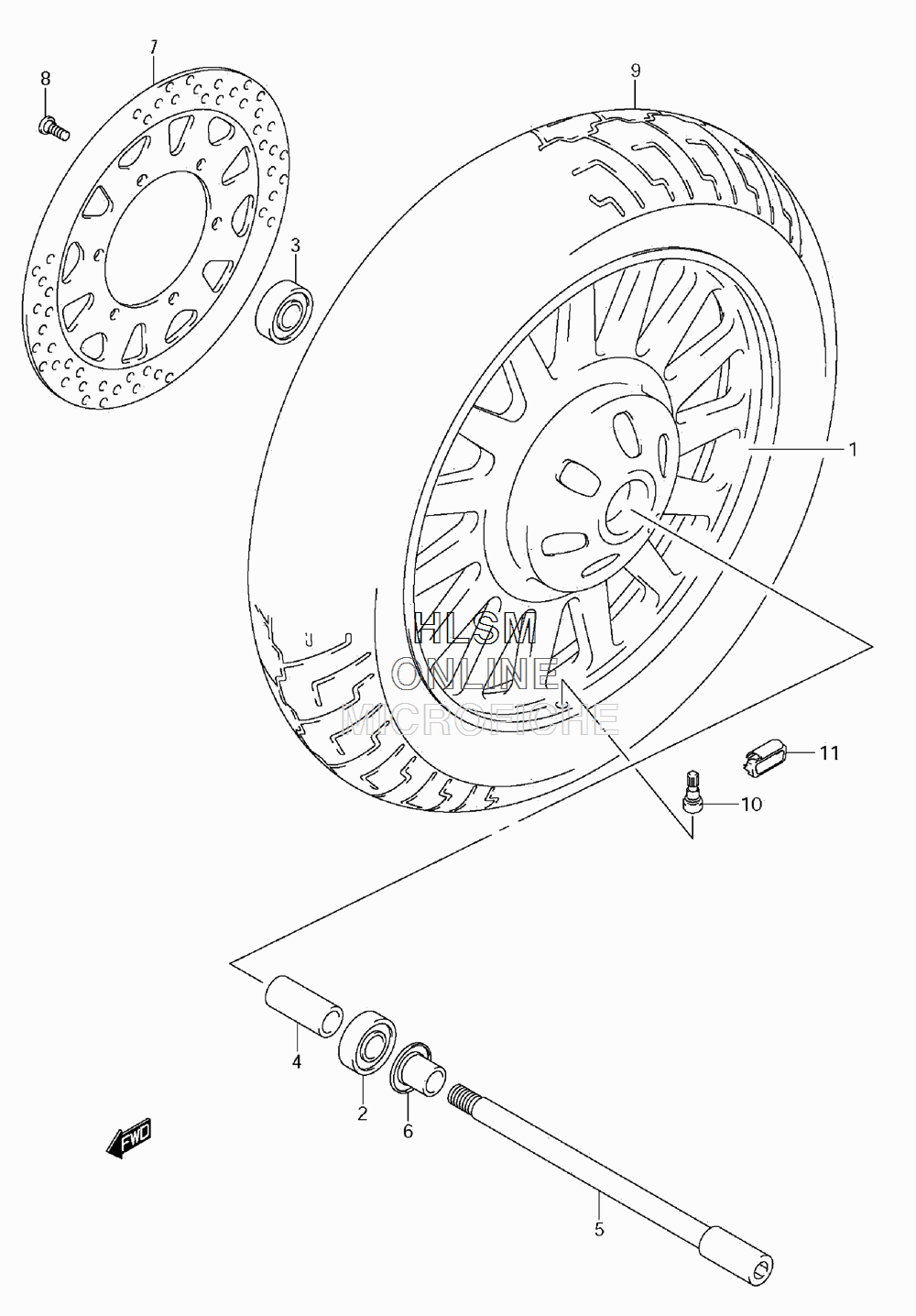

WHEEL - FRONT (CANADA) для Suzuki VL800C L1 - 2011 года выпуска
-
№АртикулНазвание
-
154111-41F10-20H WHEEL, FRONT (16M/CXMT3.00)WHEEL, FRONT (16M/CXMT3.00)
-
208133-62037 BEARING, FRONT HUB LEFT HANDBEARING, FRONT HUB LEFT HAND
-
308143-62037 BEARING, FRONT HUB RIGHT HANDBEARING, FRONT HUB RIGHT HAND
-
409180-17080 SPACER, BEARINGSPACER, BEARING
-
554711-41F00 AXLE, FRONTAXLE, FRONT
-
654740-32C00 SPACER, AXLE LEFT HANDSPACER, AXLE LEFT HAND
-
759211-41F00 DISC, FRONT BRAKE RIGHT HANDDISC, FRONT BRAKE RIGHT HAND
-
809106-08160 BOLT (8X21)BOLT (8X21)
-
955110-41F20 TIRE, FRONT, 130/90-16M/C 67H (IRC)TIRE, FRONT, 130/90-16M/C 67H (IRC)
-
1043130-24A00 VALVE ASSY, WHEEL RIMVALVE ASSY, WHEEL RIM
-
1143222-73H10 BALANCER, WHEEL NO.1BALANCER, WHEEL NO.1
-
1143224-73H10 BALANCER, WHEEL NO.2BALANCER, WHEEL NO.2
-
1143226-73H10 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
