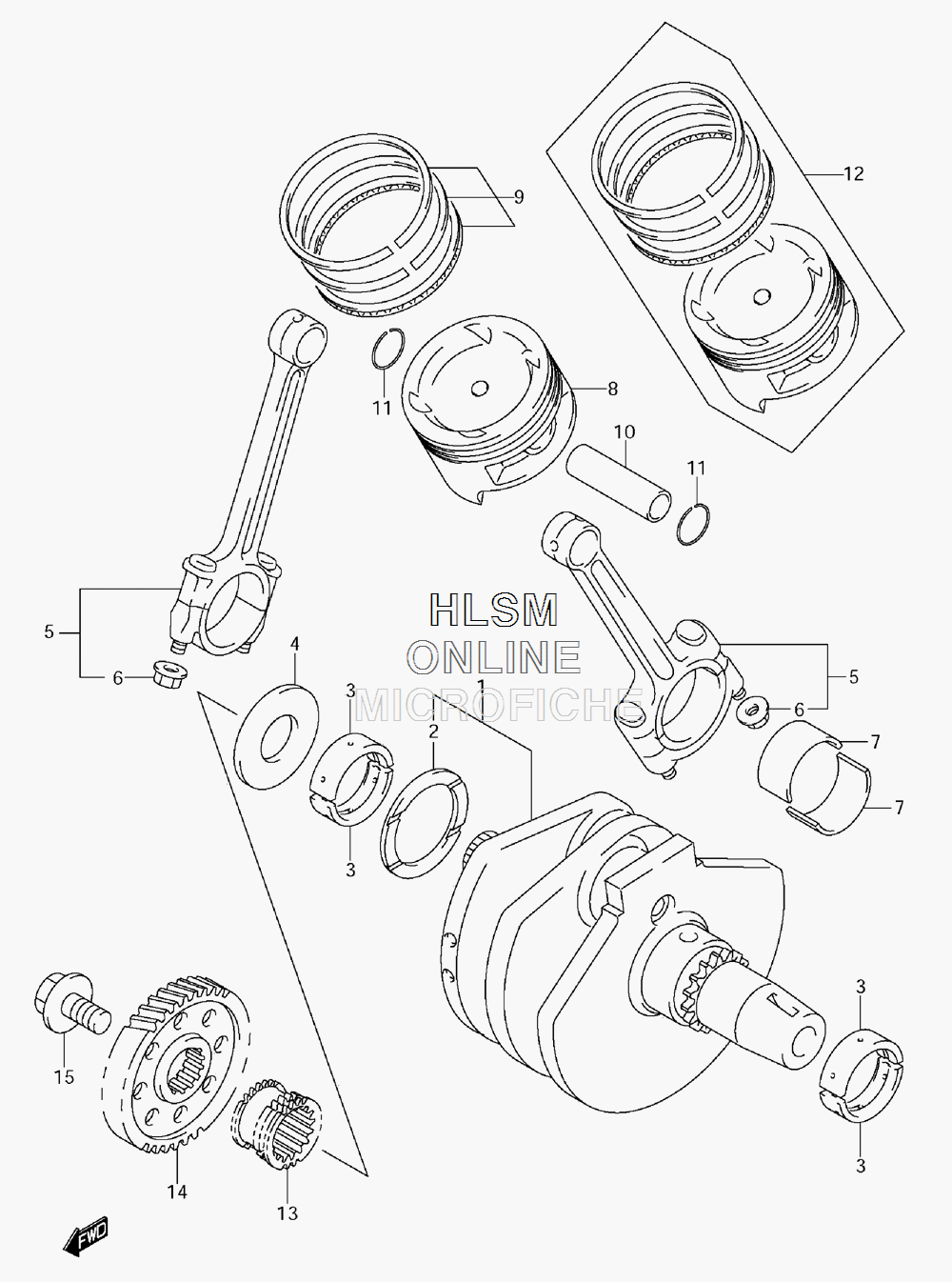

CRANKSHAFT W/ PISTON для Suzuki VL800C L1 - 2011 года выпуска
-
№АртикулНазвание
-
112000-41810 CRANKSHAFT SET (INC 2)CRANKSHAFT SET (INC 2)
-
209160-48001 WASHER, CRANK THRUST (T:1.94)WASHER, CRANK THRUST (T:1.94)
-
209160-48002 WASHER, CRANK THRUST (T:1.96)WASHER, CRANK THRUST (T:1.96)
-
209160-48003 WASHER, CRANK THRUST (T:1.99)WASHER, CRANK THRUST (T:1.99)
-
209160-48004 WASHER, CRANK THRUST (T:2.01)WASHER, CRANK THRUST (T:2.01)
-
209160-48005 WASHER, CRANK THRUST (T:2.04)WASHER, CRANK THRUST (T:2.04)
-
209160-48006 WASHER, CRANK THRUST (T:2.06)WASHER, CRANK THRUST (T:2.06)
-
209160-48007 WASHER, CRANK THRUST (T:2.09)WASHER, CRANK THRUST (T:2.09)
-
209160-48008 WASHER, CRANK THRUST (T:2.11)WASHER, CRANK THRUST (T:2.11)
-
209160-48009 WASHER, CRANK THRUST (T:2.14)WASHER, CRANK THRUST (T:2.14)
-
209160-48010 WASHER, CRANK THRUST (T:2.16)WASHER, CRANK THRUST (T:2.16)
-
312229-39G00-0A0 BEARING, CRANKSHAFT (A)BEARING, CRANKSHAFT (A)
-
312229-39G00-0B0 BEARING, CRANKSHAFT (B)BEARING, CRANKSHAFT (B)
-
312229-39G00-0C0 BEARING, CRANKSHAFT (C)BEARING, CRANKSHAFT (C)
-
412652-38A00 WASHER, CRANK THRUSTWASHER, CRANK THRUST
-
512160-45C30 ROD ASSY, CONNECTING (INCL. 6)ROD ASSY, CONNECTING (INCL. 6)
-
609159-09001 NUTNUT
-
712164-38E00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
712164-38E00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
712164-38E00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
712164-38E00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
712164-38E00-0E0 BEARING, CRANK PIN (BLUE)BEARING, CRANK PIN (BLUE)
-
812111-41F00-0F0 PISTONPISTON
-
912140-41F00 RING SET, PISTONRING SET, PISTON
-
1012151-24A00 PIN, PISTONPIN, PISTON
-
1109381-20004 CIRCLIPCIRCLIP
-
1212100-41F00-050 PISTON SET (OS:0.5)PISTON SET (OS:0.5)
-
1312731-38A00 SPROCKET, CAM CHAIN DRIVE RIGHT HANDSPROCKET, CAM CHAIN DRIVE RIGHT HAND
-
1421111-38A00 GEAR, PRIMARY DRIVE NT:42GEAR, PRIMARY DRIVE NT:42
-
1509103-12013 BOLT (12X28)BOLT (12X28)
