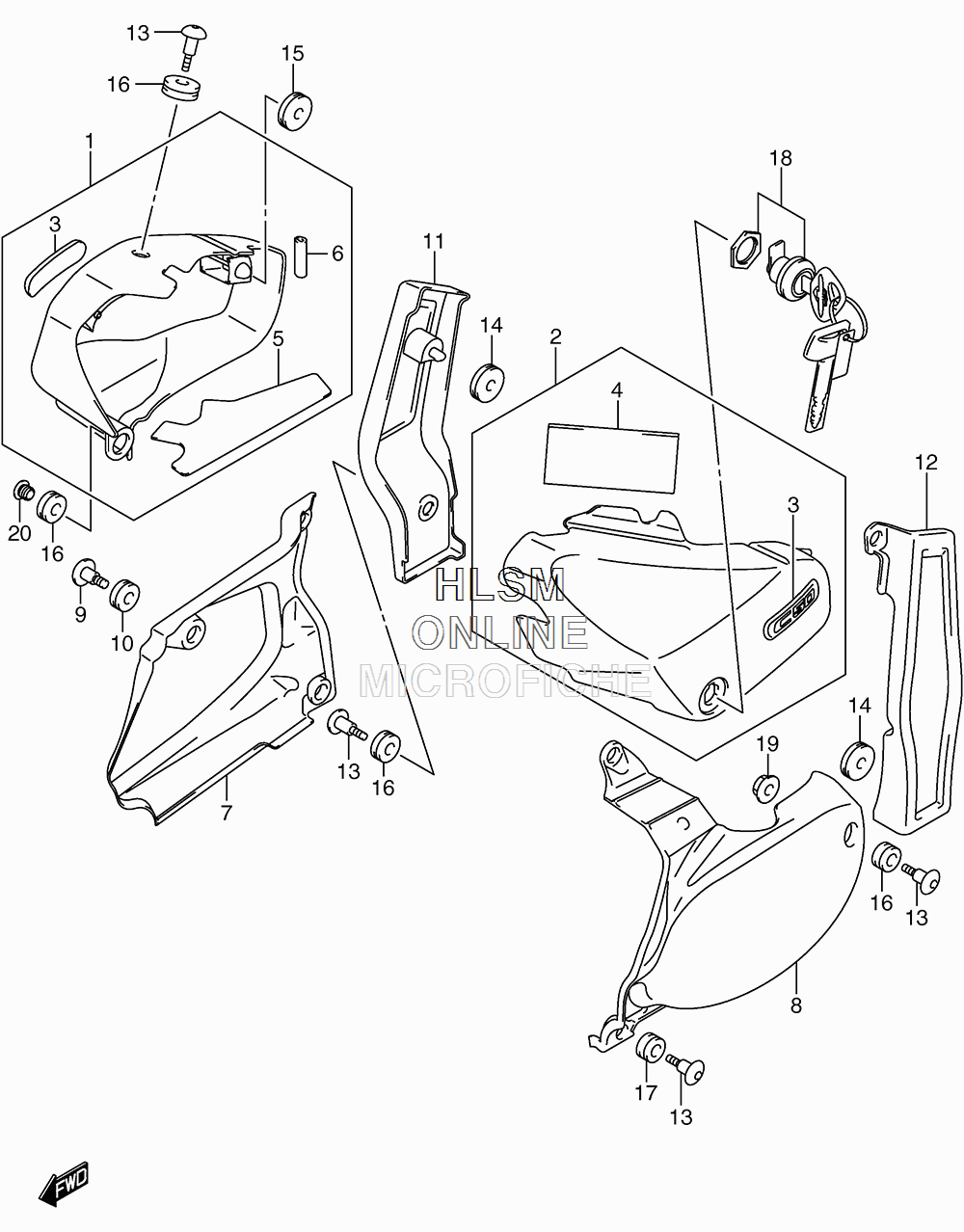

SIDE COVER для Suzuki VL800T L0 - 2010 года выпуска

№

Артикул

Название
1

47110-41FN0-YAY COVER, FRAME RIGHT HAND (YAY - BLACK FOR HDV - BLACK/RED)

COVER, FRAME RIGHT HAND (YAY - BLACK FOR HDV - BLACK/RED)
1

47110-41FN0-YML COVER, FRAME RIGHT HAND (YML - BLUE FOR HBZ - BLUE/WHITE)

COVER, FRAME RIGHT HAND (YML - BLUE FOR HBZ - BLUE/WHITE)
1

47110-41FP1-YAY COVER, FRAME RIGHT HAND (YAY - BLACK FOR HDV - BLACK/RED) (CALIF ONLY)

COVER, FRAME RIGHT HAND (YAY - BLACK FOR HDV - BLACK/RED) (CALIF ONLY)
1

47110-41FP1-YML COVER, FRAME RIGHT HAND (YML - BLUE FOR HBZ - BLUE/WHITE) (CALIF ONLY)

COVER, FRAME RIGHT HAND (YML - BLUE FOR HBZ - BLUE/WHITE) (CALIF ONLY)
2

47210-41FM0-YAY COVER, FRAME LEFT HAND (YAY - BLACK FOR HDV - BLACK/RED)

COVER, FRAME LEFT HAND (YAY - BLACK FOR HDV - BLACK/RED)
2

47210-41FM0-YML COVER, FRAME LEFT HAND (YML - BLUE FOR HBZ - BLUE/WHITE)

COVER, FRAME LEFT HAND (YML - BLUE FOR HBZ - BLUE/WHITE)
3

68131-41F50 ...EMBLEM, C50T

...EMBLEM, C50T
4

47217-41F00 ...CUSHION, LH

...CUSHION, LH
5

47166-41F00 ...SHIELD, FRAME COVER RH

...SHIELD, FRAME COVER RH
6

94631-35F00 ...MOLDING, RH

...MOLDING, RH
7

47130-41F00 COVER, SIDE LOWER RH

COVER, SIDE LOWER RH
8

47231-41F00 COVER, SIDE LOWER LH

COVER, SIDE LOWER LH
9

47133-43H00 SCREW

SCREW
10

09320-08021 CUSHION

CUSHION
11

47141-41F01-019 COVER, SIDE REAR RIGHT HAND (BLACK)

COVER, SIDE REAR RIGHT HAND (BLACK)
12

47241-41F00-019 COVER, SIDE REAR LEFT HAND (BLACK)

COVER, SIDE REAR LEFT HAND (BLACK)
13

09139-06126 SCREW

SCREW
14

09320-08018 CUSHION

CUSHION
15

09320-08028 CUSHION BOX REAR

CUSHION BOX REAR
16

09320-09501 CUSHION

CUSHION
17

09320-09045 CUSHION BOX FRONT

CUSHION BOX FRONT
18

95700-07860 LOCK SET, FUEL LID

LOCK SET, FUEL LID
19

08316-1006B NUT, SIDE LOWER LH

NUT, SIDE LOWER LH
20

09250-09001 CAP

CAP
