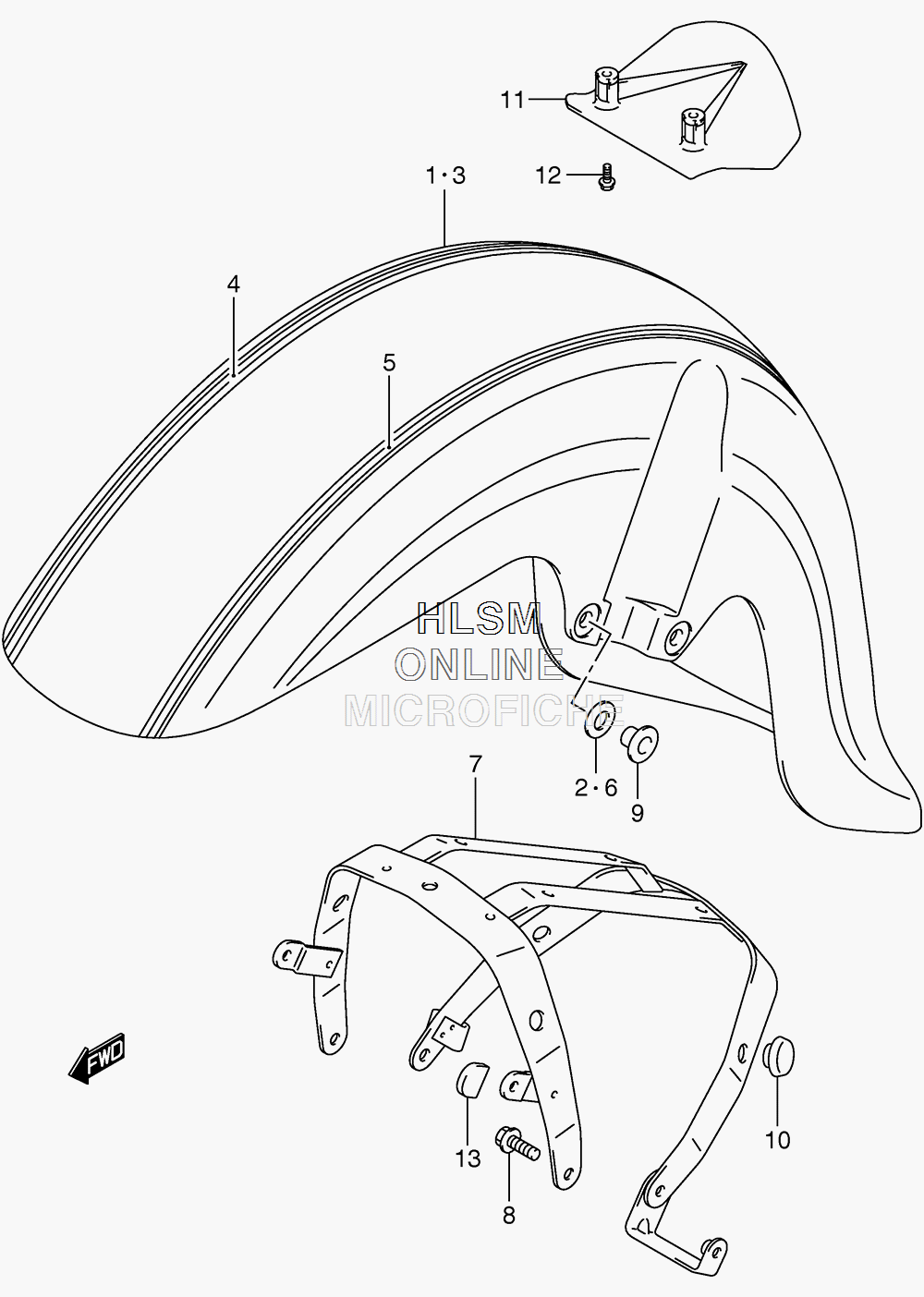

FENDER - FRONT для Suzuki VL800T L0 - 2010 года выпуска

  • №
    Артикул
    Название
  • 3
    53110-43HA0-HBZ FENDER, FRONT (HBZ - BLUE/WHITE)
    FENDER, FRONT (HBZ - BLUE/WHITE)
  • 3
    53110-43HA0-HDV FENDER, FRONT (HDV - BLACK/RED)
    FENDER, FRONT (HDV - BLACK/RED)
  • 4
    68150-43H00-HEE ...TAPE SET, RIGHT HAND (HEE - WHITE/GREEN/GREEN FOR HBZ - BLUE/WHITE)
    ...TAPE SET, RIGHT HAND (HEE - WHITE/GREEN/GREEN FOR HBZ - BLUE/WHITE)
  • 4
    68150-43H00-HEF ...TAPE SET, RIGHT HAND (HEF - BLUE/GRAY/BLACK FOR HDV - BLACK/RED)
    ...TAPE SET, RIGHT HAND (HEF - BLUE/GRAY/BLACK FOR HDV - BLACK/RED)
  • 5
    68750-43H00-HEE ...TAPE SET, LEFT HAND (HEE - WHITE/GREEN/GREEN FOR HBZ - BLUE/WHITE)
    ...TAPE SET, LEFT HAND (HEE - WHITE/GREEN/GREEN FOR HBZ - BLUE/WHITE)
  • 5
    68750-43H00-HEF ...TAPE SET, LEFT HAND (HEF - BLUE/GRAY/BLACK FOR HDV - BLACK/RED) (INC 6)
    ...TAPE SET, LEFT HAND (HEF - BLUE/GRAY/BLACK FOR HDV - BLACK/RED) (INC 6)
  • 6
    53121-41FA0 ...CUSHION
    ...CUSHION
  • 7
    53120-43H10 BRACE, FRONT FENDER
    BRACE, FRONT FENDER
  • 8
    01547-0620A BOLT
    BOLT
  • 9
    53276-41F10 WASHER
    WASHER
  • 10
    09321-10007 CUSHION
    CUSHION
  • 11
    53181-41F00 WING, FRONT
    WING, FRONT
  • 12
    09113-06001 BOLT
    BOLT
  • 13
    09329-18001 CUSHION, BRACE
    CUSHION, BRACE
