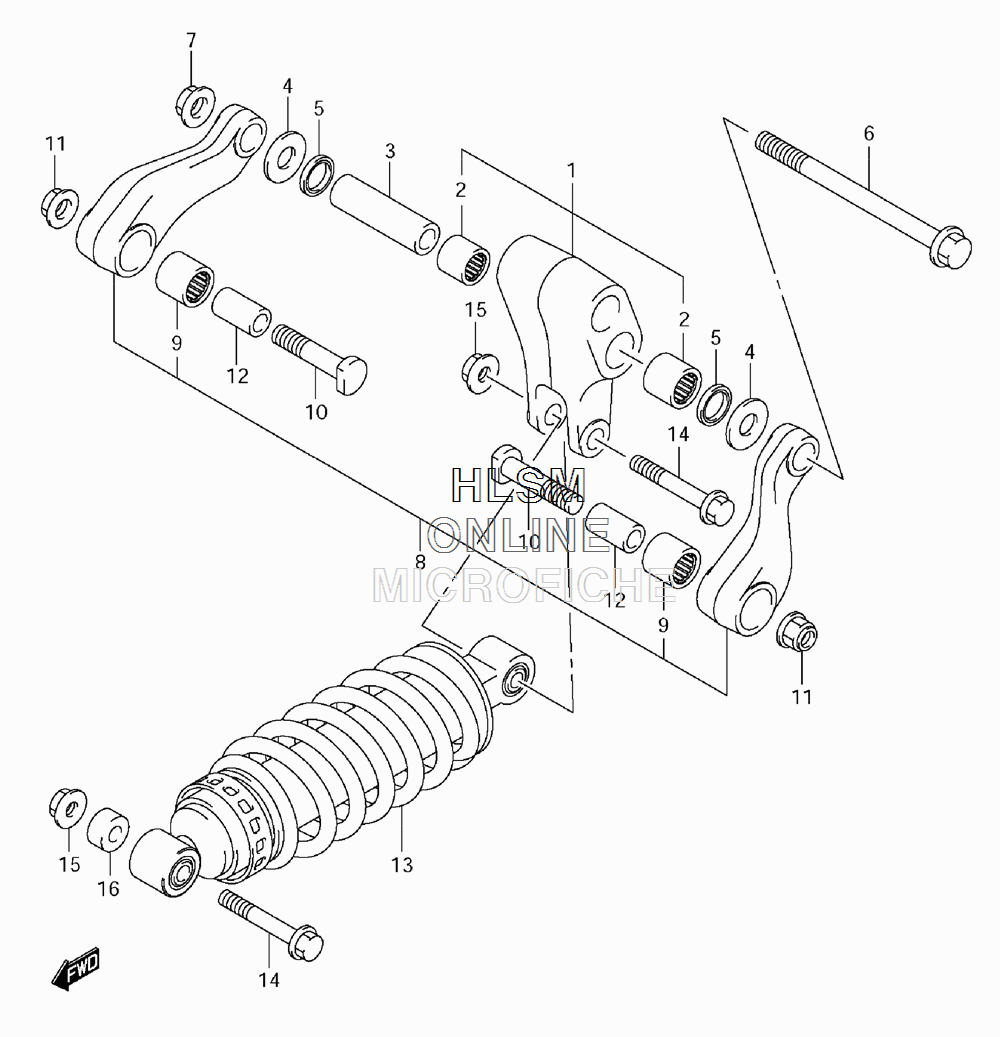

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki VLR1800 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
162600-22830 LEVER SET, REAR CUSHION (INCL. 2)LEVER SET, REAR CUSHION (INCL. 2)
-
209263-22071 BEARING, 22X29X25BEARING, 22X29X25
-
362645-28E00 SPACER, RR CUSHION LEVERSPACER, RR CUSHION LEVER
-
409160-16052 WASHER, RR CUSHION LEVERWASHER, RR CUSHION LEVER
-
509285-22001 SEAL, RR CUSHION LEVERSEAL, RR CUSHION LEVER
-
662658-44G10 BOLT, RR CUSHION LEVERBOLT, RR CUSHION LEVER
-
708319-3116A NUT, RR CUSHION LEVERNUT, RR CUSHION LEVER
-
862600-22840 ROD SET, REAR CUSHION (INCL. 9)ROD SET, REAR CUSHION (INCL. 9)
-
909263-20074 BEARING, 20X27X32BEARING, 20X27X32
-
1009119-14006 BOLT, RR CUSHION ROD FRBOLT, RR CUSHION ROD FR
-
1108319-3114A NUT, RR CUSHION RODNUT, RR CUSHION ROD
-
1209180-14014 SPACER, RR CUSHION RODSPACER, RR CUSHION ROD
-
1362100-22H00 ABSORBER ASSY, REAR SHOCK (CANADA ONLY)ABSORBER ASSY, REAR SHOCK (CANADA ONLY)
-
1362100-22H10 ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
1462658-27C10 BOLT, RR SHOCK ABSBOLT, RR SHOCK ABS
-
1509159-12056 NUT, RR SHOCK ABSNUT, RR SHOCK ABS
-
1609180-12157 SPACER, RR SHOCK ABS FRSPACER, RR SHOCK ABS FR
