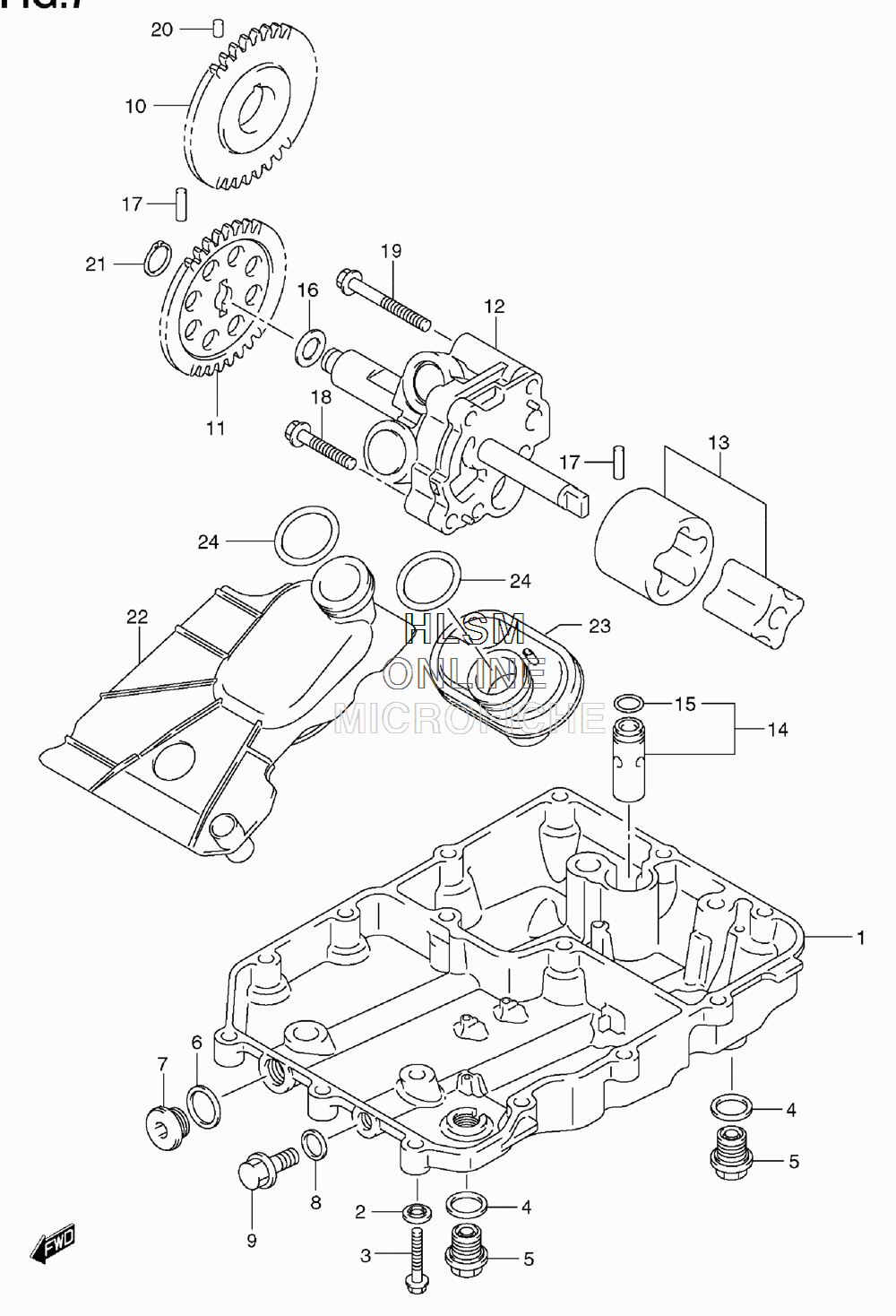

OIL PAN W/ OIL PUMP ASSY. для Suzuki VLR1800 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
111511-48G00 PAN, OILPAN, OIL
-
209168-06023 GASKETGASKET
-
301547-0630A BOLTBOLT
-
409168-14002 GASKETGASKET
-
509247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
609168-16002 GASKETGASKET
-
709248-16012 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
809168-10002 GASKETGASKET
-
909247-10008 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1016321-48G00 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
1116331-48G00 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
1216400-48G00 PUMP ASSY, ENG OILPUMP ASSY, ENG OIL
-
1316410-48G00 ROTOR SET, OIL PUMPROTOR SET, OIL PUMP
-
1416440-24F00 VALVE ASSY, OIL RELIEF (INCL. 15)VALVE ASSY, OIL RELIEF (INCL. 15)
-
1509280-13004 O RINGO RING
-
1609181-10158 WASHERWASHER
-
1709261-04009 PINPIN
-
1801547-0635A BOLTBOLT
-
1901547-0655A BOLTBOLT
-
2004221-04069 PINPIN
-
2108331-31106 CIRCLIPCIRCLIP
-
2216530-48G00 STRAINER, ENG OIL FRONTSTRAINER, ENG OIL FRONT
-
2316520-48G00 STRAINER, ENG OIL REARSTRAINER, ENG OIL REAR
-
2409280-22016 O RINGO RING
