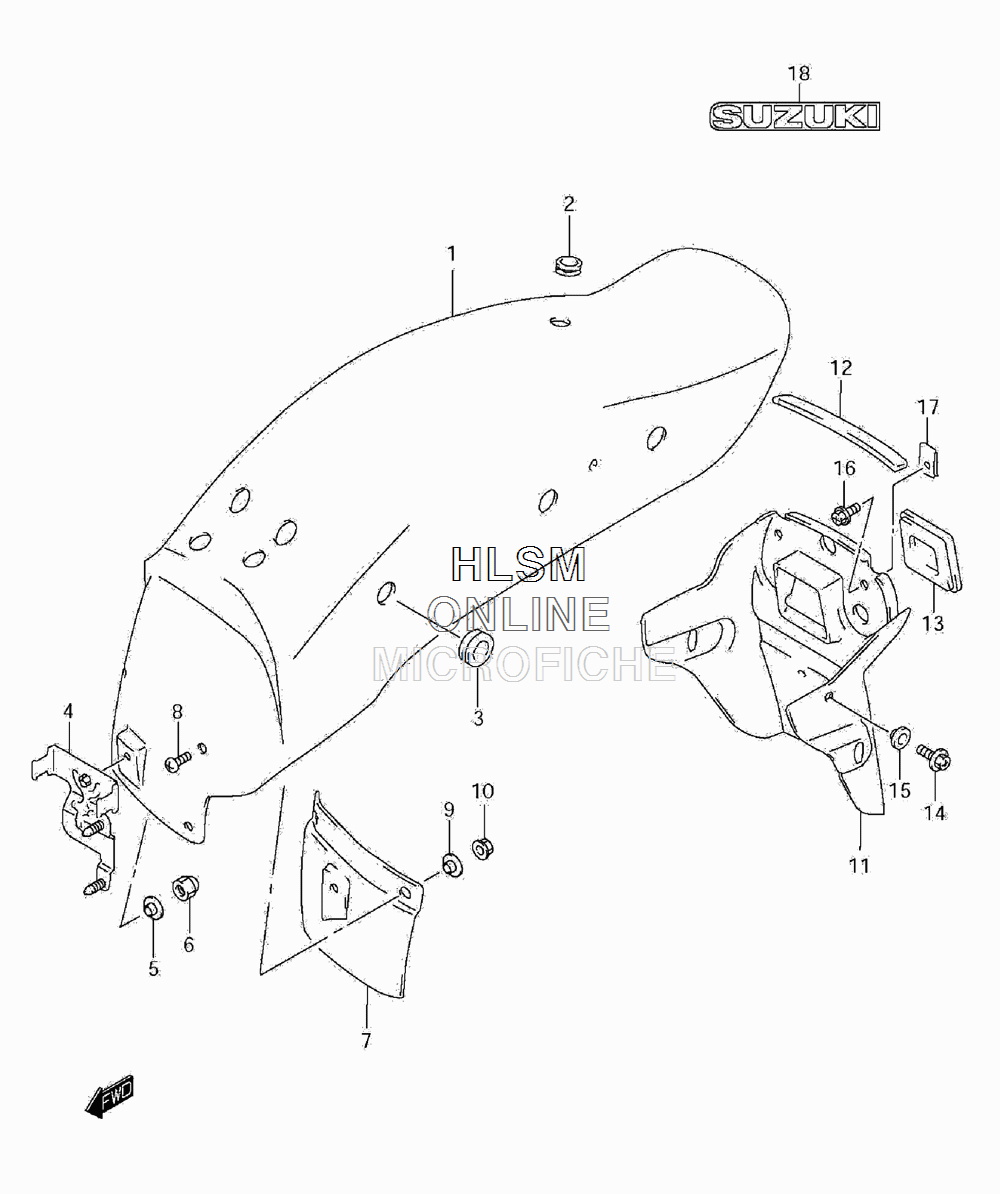

FENDER - REAR для Suzuki GZ 250 K9 - 2009 года выпуска
-
№АртикулНазвание
-
163111-12F00-YAY FENDER, REAR (BLACK) (YAY)FENDER, REAR (BLACK) (YAY)
-
163111-12F00-YC3 FENDER, REAR (WHITE) (YC3)FENDER, REAR (WHITE) (YC3)
-
209320-13015 CUSHION, UPPERCUSHION, UPPER
-
363118-12F00 CUSHION, SIDECUSHION, SIDE
-
463140-13F00 BRACKET, REAR FENDERBRACKET, REAR FENDER
-
509689-06055 WASHERWASHER
-
608313-1006B NUTNUT
-
763331C12F00J000 MUD GUARD, REAR FENDERMUD GUARD, REAR FENDER
-
802142-0616B SCREWSCREW
-
909169-06055 WASHERWASHER
-
1008316-1006B NUTNUT
-
1163311C12F00J000 EXTENSION, REAR FENDEREXTENSION, REAR FENDER
-
1263312-48E00 CUSHION, EXTENSIONCUSHION, EXTENSION
-
1363191-48E00 CAP, EXTENSIONCAP, EXTENSION
-
1402162-0612B BOLT, SIDEBOLT, SIDE
-
1509689-06055 WASHERWASHER
-
1602162-0616B BOLT, REARBOLT, REAR
-
1747153-19C01 NUT, REAR FENDER EXT.NUT, REAR FENDER EXT.
-
1868171-12F00-YD8 EMBLEM ''SUZUKI'' (SILVER) (FOR YAY, YHG)EMBLEM ''SUZUKI'' (SILVER) (FOR YAY, YHG)
-
1868171-12F00-YU8 EMBLEM ''SUZUKI'' (GRAY) (FOR YC3)EMBLEM ''SUZUKI'' (GRAY) (FOR YC3)
