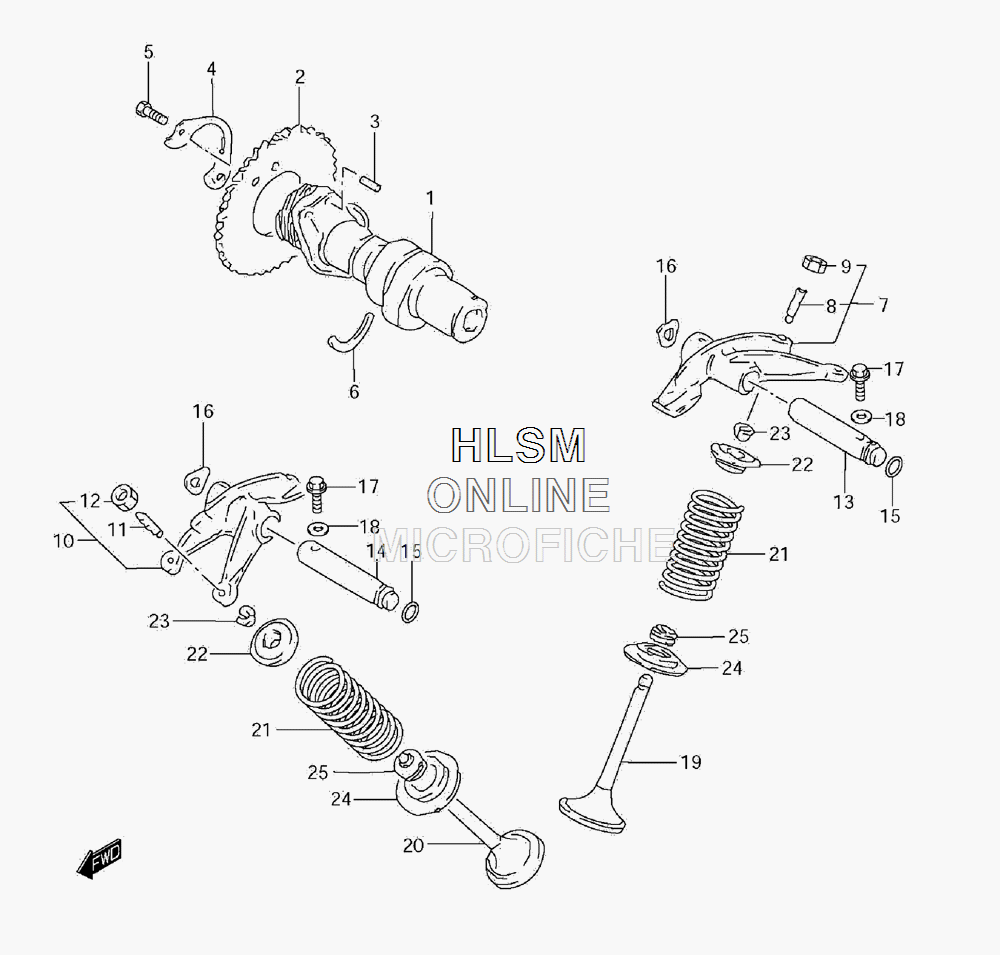

CAMSHAFT W/ VALVES для Suzuki GZ 250 K9 - 2009 года выпуска
-
№АртикулНазвание
-
112711-13F00 CAM SHAFTCAM SHAFT
-
212741-37400 SPROCKET, CAM SHAFT (NT:42)SPROCKET, CAM SHAFT (NT:42)
-
304221-05109 PINPIN
-
412747-44001 WASHER, SPROCKETWASHER, SPROCKET
-
509111-06027 BOLT (6X12.5)BOLT (6X12.5)
-
609390-25003 C RINGC RING
-
712840-13F00 ARM, VALVE ROCKER IN (INCL. 8 - 9)ARM, VALVE ROCKER IN (INCL. 8 - 9)
-
812842-49201 SCREW, TAPPET ADJUSTINGSCREW, TAPPET ADJUSTING
-
912843-27A00 NUT, TAPPET ADJUSTINGNUT, TAPPET ADJUSTING
-
1012850-13F00 ARM, VALVE ROCKER EX (INCL. 11 - 12)ARM, VALVE ROCKER EX (INCL. 11 - 12)
-
1112842-49201 SCREW, TAPPET ADJUSTINGSCREW, TAPPET ADJUSTING
-
1212843-27A00 NUT, TAPPET ADJUSTINGNUT, TAPPET ADJUSTING
-
1312861-38200 SHAFT, VALVE ROCKER ARM INTAKE (L:91.5)SHAFT, VALVE ROCKER ARM INTAKE (L:91.5)
-
1412871-38200 SHAFT, VALVE ROCKER ARM EXHAUSTSHAFT, VALVE ROCKER ARM EXHAUST
-
1509280-09005 O RING (D:1.9,ID:8.6)O RING (D:1.9,ID:8.6)
-
1609164-12018 WASHERWASHER
-
1702162-0630B BOLTBOLT
-
1809168-06023 GASKETGASKET
-
1912911-38200 VALVE, INTAKEVALVE, INTAKE
-
2012912-38201 VALVE, EXHAUSTVALVE, EXHAUST
-
2112921-38211 SPRING, VALVESPRING, VALVE
-
2212931-49201 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
2312932-49200 COTTER, VALVECOTTER, VALVE
-
2412933-38200 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
2509289-05015 OIL SEALOIL SEAL
