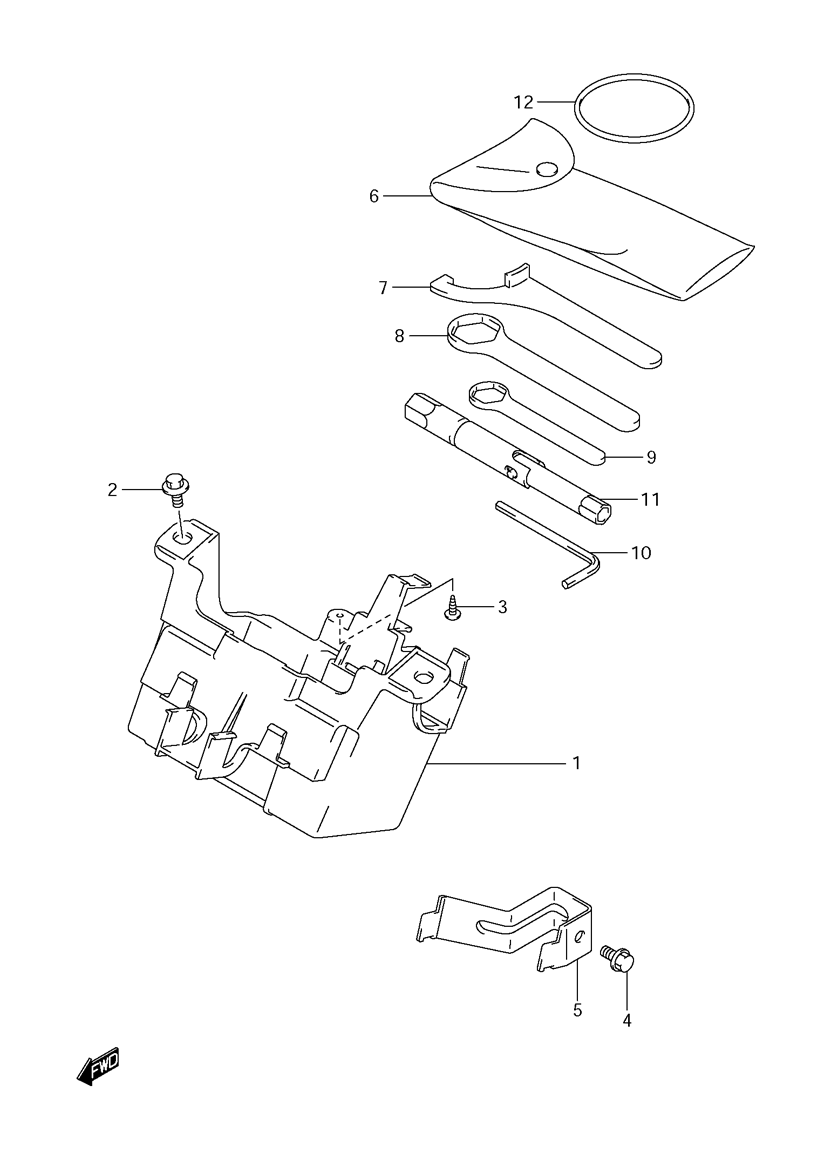

TOOLKIT AND MANUAL STORAGE для Suzuki GSX650F K9 - 2009 года выпуска
-
№АртикулНазвание
-
147430-18H02 HOLDER, BATTERYHOLDER, BATTERY
-
263161-43E00 SCREWSCREW
-
303541-0516B SCREWSCREW
-
401550-0610A BOLTBOLT
-
547410-38G01 PLATE, FUSE BOXPLATE, FUSE BOX
-
609800-21055 TOOL ASSEMBLYTOOL ASSEMBLY
-
709822-00005 CLAMP WRENCHCLAMP WRENCH
-
809817-00040 RING, SPANNERRING, SPANNER
-
909817-00037 RING, SPANNERRING, SPANNER
-
1009816-00059 SPANNER, HEXAGON 5SPANNER, HEXAGON 5
-
1009816-00102 SPANNER, HEXAGON 3SPANNER, HEXAGON 3
-
1109816-00149 SPANNER, BOXSPANNER, BOX
-
1209280-61002 BAND, TOOLBAND, TOOL
