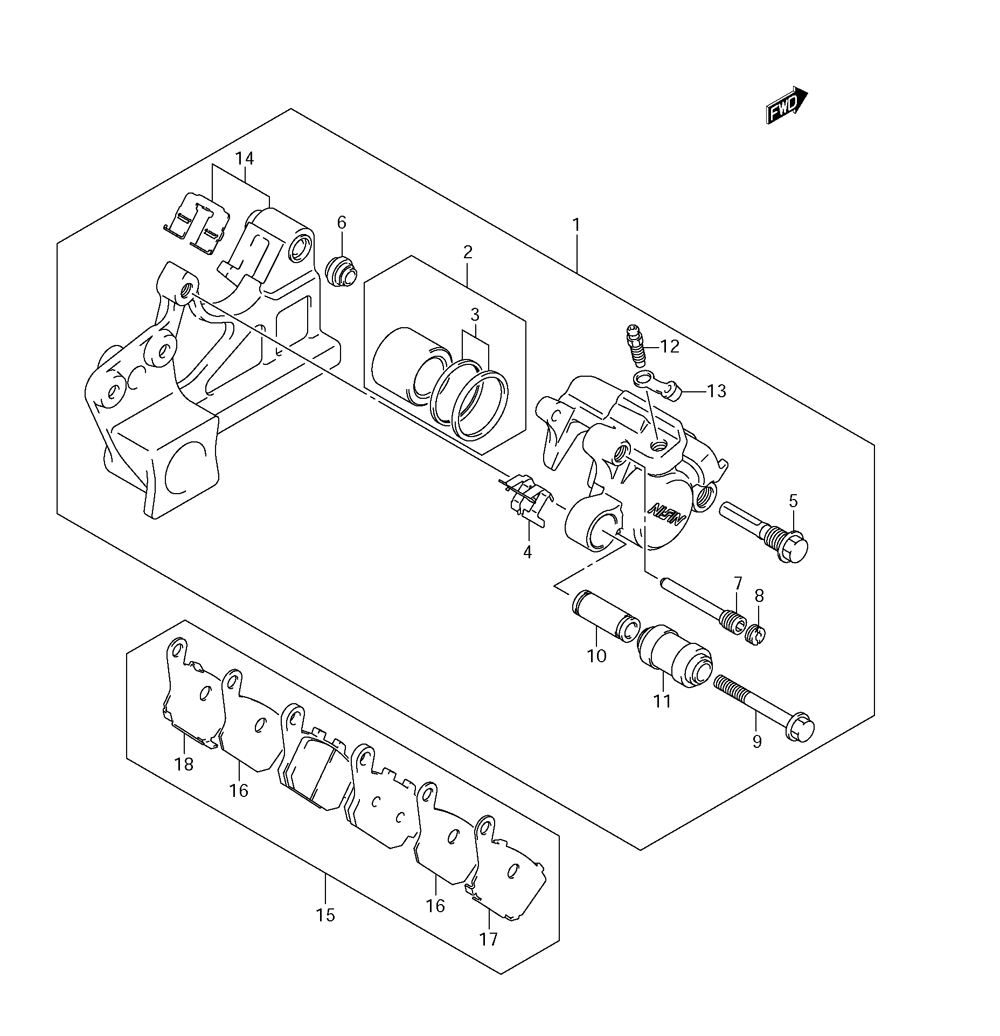

BRAKE - REAR CALIPER для Suzuki GSX650F K9 - 2009 года выпуска

№

Артикул

Название
1

69100-38G30-999 CALIPER ASSEMBLY, REAR

CALIPER ASSEMBLY, REAR
2

69100-04810 ...PISTON SET

...PISTON SET
3

69100-04820 ......SEAL SET, PISTON

......SEAL SET, PISTON
4

69115-06G00 ...SPRING, PAD

...SPRING, PAD
5

69105-04F00 ...BOLT

...BOLT
6

59303-14500 ...BOOT

...BOOT
7

69141-40F00 ...PIN, HANGER

...PIN, HANGER
8

59146-21E10 ...PLUG

...PLUG
9

69182-04F00 ...BOLT

...BOLT
10

69185-04F00 ...SLEEVE

...SLEEVE
11

69186-04F00 ...BOOT

...BOOT
12

59121-01A00 ...BLEEDER

...BLEEDER
13

59122-01A00 ...CAP

...CAP
14

69150-38G30 ...BRACKET

...BRACKET
15

69100-06830 PAD & RETAINER SET

PAD & RETAINER SET
16

69132-06G00 ...INSULATOR

...INSULATOR
17

69133-06G00 ...RETAINER

...RETAINER
18

69134-06G00 ...RETAINER

...RETAINER
