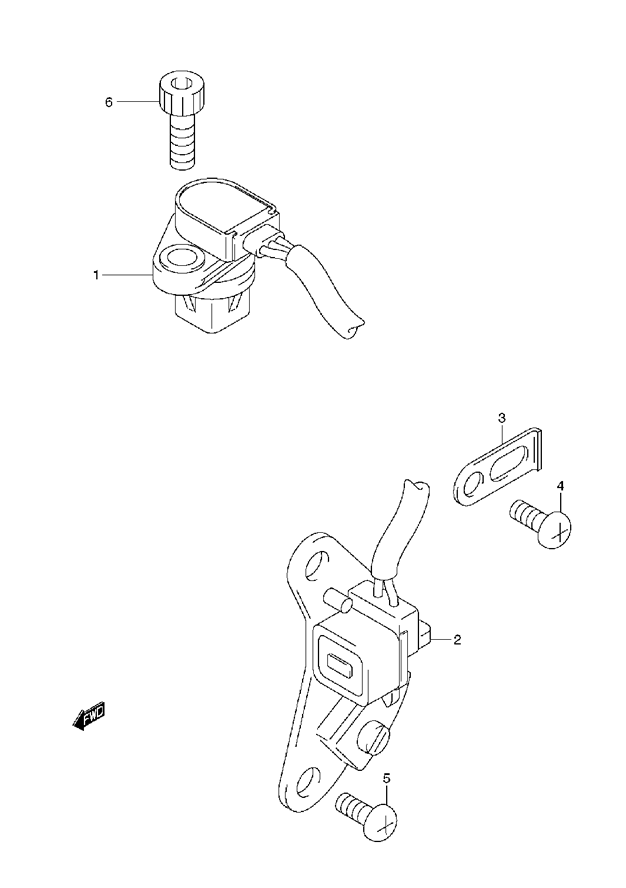

IGNITER ASSY. W/ SIGNAL GENERATOR для Suzuki GSX-R600 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
133220-01H00 SENSOR ASSY, CAM POSITIONSENSOR ASSY, CAM POSITION
-
233110-01H00 STATOR, SIGNAL GENERATORSTATOR, SIGNAL GENERATOR
-
333115-33E00 CLAMP, SIGNAL GENERATORCLAMP, SIGNAL GENERATOR
-
402112-0510A SCREW, CLAMPSCREW, CLAMP
-
502112-0510A SCREW, STATORSCREW, STATOR
-
607130-0616A BOLT, CAM POSITIONBOLT, CAM POSITION
