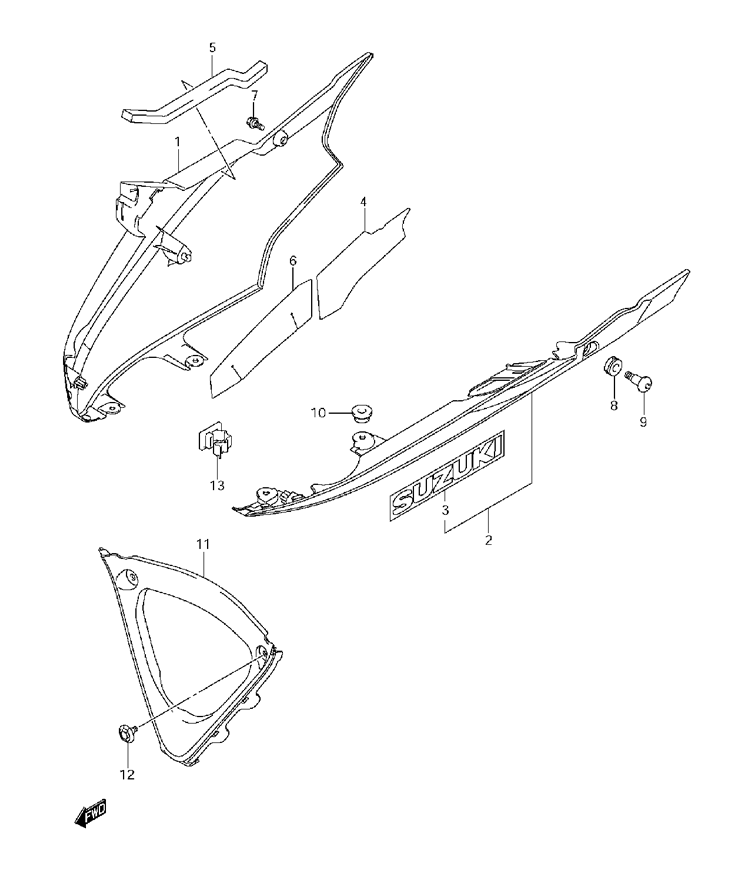

COWLING - UNDER BODY для Suzuki GSX-R600 K9 - 2009 года выпуска

№

Артикул

Название
1

94470-37H00-02X COWLING, UNDER RIGHT HAND (BLACK) (02X) (FOR 019)

COWLING, UNDER RIGHT HAND (BLACK) (02X) (FOR 019)
1

94470-37H00-YPA COWLING, UNDER RIGHT HAND (WHITE) (YPA) (FOR YPA)

COWLING, UNDER RIGHT HAND (WHITE) (YPA) (FOR YPA)
1

94470-37H00-14X COWLING, UNDER RIGHT HAND (BLACK) (14X) (FOR ECE)

COWLING, UNDER RIGHT HAND (BLACK) (14X) (FOR ECE)
1

94470-37H00-YSF COWLING, UNDER RIGHT HAND (BLUE) (YSF) (FOR EAK)

COWLING, UNDER RIGHT HAND (BLUE) (YSF) (FOR EAK)
2

94480-37H00-02X COWLING, UNDER LEFT HAND (BLACK) (02X) (FOR 019) (INCL. 3-3)

COWLING, UNDER LEFT HAND (BLACK) (02X) (FOR 019) (INCL. 3-3)
2

94480-37H00-YPA COWLING, UNDER LEFT HAND (WHITE) (YPA) (FOR YPA) (INCL. 3-3)

COWLING, UNDER LEFT HAND (WHITE) (YPA) (FOR YPA) (INCL. 3-3)
2

94480-37H00-14X COWLING, UNDER LEFT HAND (BLACK) (14X) (FOR ECE) (INCL. 3-3)

COWLING, UNDER LEFT HAND (BLACK) (14X) (FOR ECE) (INCL. 3-3)
2

94480-37H00-YSF COWLING, UNDER LEFT HAND (BLUE) (YSF) (FOR GLR) (INCL. 3-3)

COWLING, UNDER LEFT HAND (BLUE) (YSF) (FOR GLR) (INCL. 3-3)
3

68181-33C20-17U EMBLEM (GRAY) (17U) (FOR 02X)

EMBLEM (GRAY) (17U) (FOR 02X)
3

68181-33C20-YLC EMBLEM (GOLD) (YLC) (FOR YPA)

EMBLEM (GOLD) (YLC) (FOR YPA)
3

68181-33C20-YD8 EMBLEM (SILVER) (YD8) (FOR 14X)

EMBLEM (SILVER) (YD8) (FOR 14X)
3

68181-33C20-YBD EMBLEM (WHITE) (YBD) (FOR YSF)

EMBLEM (WHITE) (YBD) (FOR YSF)
4

94472-37H00 SHIELD, HEAT REAR UPPER RIGHT HAND

SHIELD, HEAT REAR UPPER RIGHT HAND
5

94477-37H00 CUSHION

CUSHION
6

94472-37H10 SHIELD, HEAT RIGHT HAND

SHIELD, HEAT RIGHT HAND
7

09139-05064 SCREW, RIGHT HAND

SCREW, RIGHT HAND
8

09320-09016 CUSHION, LEFT HAND

CUSHION, LEFT HAND
9

09139-06126 SCREW, LEFT HAND

SCREW, LEFT HAND
10

09321-10018 CUSHION

CUSHION
11

94498-37H00 COWLING, UNDER CENTER

COWLING, UNDER CENTER
12

94479-35F00 CLIP

CLIP
13

09403-14311 CLAMP, DRAIN HOSE

CLAMP, DRAIN HOSE
