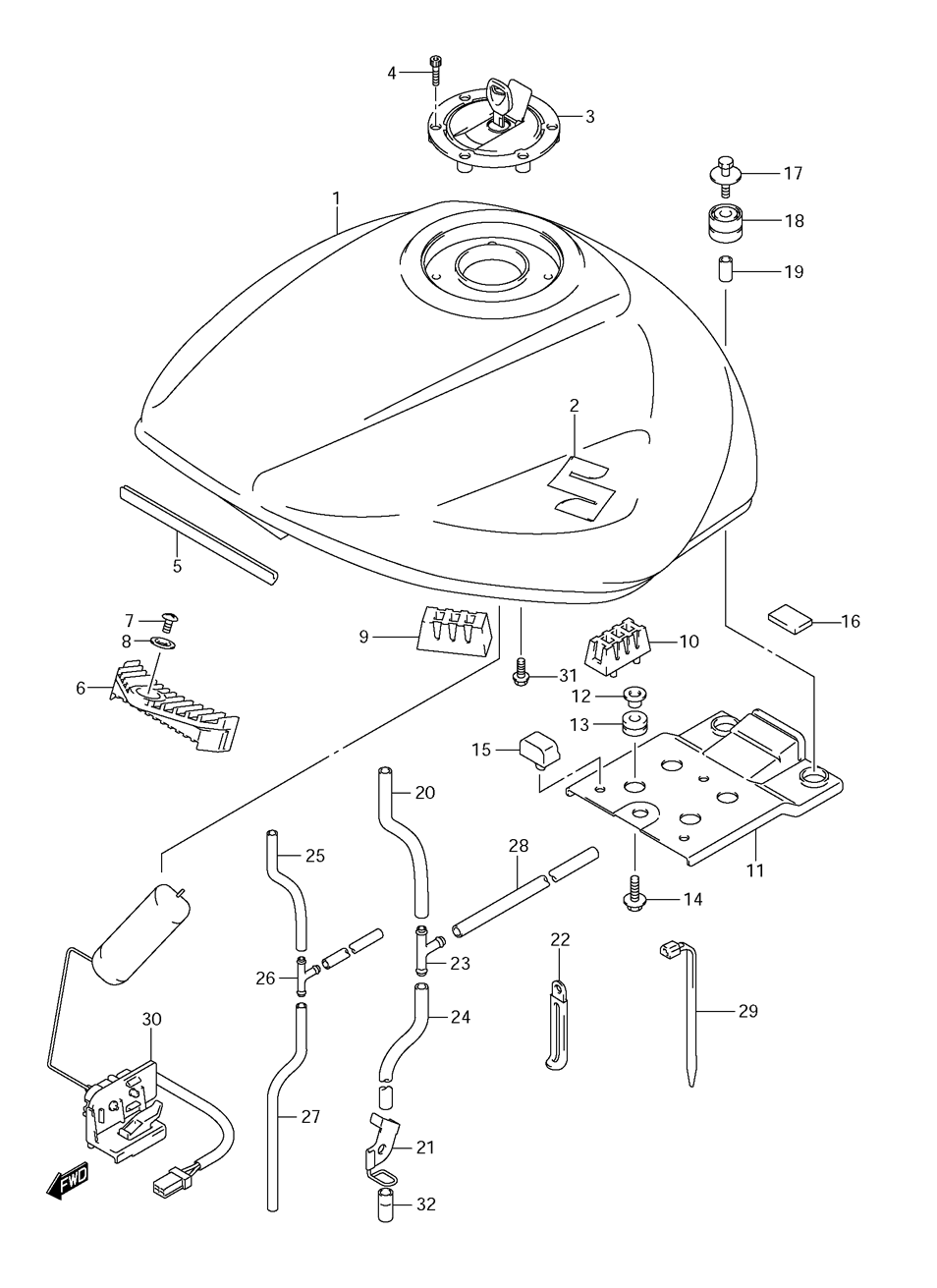

FUEL TANK для Suzuki GSF1250SA K9 BANDIT W/ ABS - 2009 года выпуска
-
№АртикулНазвание
-
144100-18H00-YAY TANK ASSEMBLY, FUEL (BLACK) (YAY) (FOR CANADA ONLY)TANK ASSEMBLY, FUEL (BLACK) (YAY) (FOR CANADA ONLY)
-
144100-18H00-YHG TANK ASSEMBLY, FUEL (GRAY) (YHG) (FOR CANADA ONLY)TANK ASSEMBLY, FUEL (GRAY) (YHG) (FOR CANADA ONLY)
-
144100-18H00-YKZ TANK ASSEMBLY, FUEL (BLUE) (YKZ) (FOR CANADA ONLY)TANK ASSEMBLY, FUEL (BLUE) (YKZ) (FOR CANADA ONLY)
-
144100-18H00-YMK TANK ASSEMBLY, FUEL (RED) (YMK) (FOR CANADA ONLY)TANK ASSEMBLY, FUEL (RED) (YMK) (FOR CANADA ONLY)
-
144100-18H20-YAY TANK ASSEMBLY, FUEL (BLACK) (YAY) (FOR CALF. ONLY)TANK ASSEMBLY, FUEL (BLACK) (YAY) (FOR CALF. ONLY)
-
144100-18H20-YHG TANK ASSEMBLY, FUEL (GRAY) (YHG) (FOR CALF. ONLY)TANK ASSEMBLY, FUEL (GRAY) (YHG) (FOR CALF. ONLY)
-
144100-18H20-YKZ TANK ASSEMBLY, FUEL (BLUE) (YKZ) (FOR CALF. ONLY)TANK ASSEMBLY, FUEL (BLUE) (YKZ) (FOR CALF. ONLY)
-
144100-18H20-YMK TANK ASSEMBLY, FUEL (RED) (YMK) (FOR CALF. ONLY)TANK ASSEMBLY, FUEL (RED) (YMK) (FOR CALF. ONLY)
-
268111-18G20 EMBLEM, "S"EMBLEM, "S"
-
344200-16850 CAP SET, FUEL TANK (FOR CANADA ONLY)CAP SET, FUEL TANK (FOR CANADA ONLY)
-
344200-16870 CAP SET, FUEL TANK (FOR CALF. ONLY)CAP SET, FUEL TANK (FOR CALF. ONLY)
-
409106-05017 BOLTBOLT
-
568241-04X50-300 MOLDINGMOLDING
-
644511-27E00 CUSHION, FRONTCUSHION, FRONT
-
702142-0510B SCREWSCREW
-
809169-05012 WASHERWASHER
-
945149-45330 CUSHION, SIDECUSHION, SIDE
-
1044541-31F00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
1144141-38G00 BRACKET, REARBRACKET, REAR
-
1209169-06062 WASHER, LOWERWASHER, LOWER
-
1309320-08001 CUSHIONCUSHION
-
1409116-06192 BOLTBOLT
-
1545149-21G00 CUSHIONCUSHION
-
1647163-10FA0 CUSHIONCUSHION
-
1709116-06172 BOLTBOLT
-
1844541-38G00 CUSHIONCUSHION
-
1909180-06271 SPACERSPACER
-
2044423-16G10 HOSE, DRAINHOSE, DRAIN
-
2144480-18H00 GUIDE, DRAIN HOSEGUIDE, DRAIN HOSE
-
2209404-10417 CLAMPCLAMP
-
2309367-08004 3 WAY, DRAIN HOSE3 WAY, DRAIN HOSE
-
2409352-70103-600 HOSE, DRAIN NO.2HOSE, DRAIN NO.2
-
2544424-38G00 HOSE, BREATHERHOSE, BREATHER
-
2609367-06002 3 WAY3 WAY
-
2709352-50823-600 HOSE, NO.1 (LENGTH: 600->300)HOSE, NO.1 (LENGTH: 600->300)
-
2809352-50823-00B HOSE, NO.2 (LENGTH: 1000->610)HOSE, NO.2 (LENGTH: 1000->610)
-
2909407-14403 CLAMPCLAMP
-
3034810-18H00 GAUGE, FUEL LEVELGAUGE, FUEL LEVEL
-
3101500-0612A BOLTBOLT
-
3209352-13162-600 HOSE & DRAIN (LENGTH: 600->10)HOSE & DRAIN (LENGTH: 600->10)
