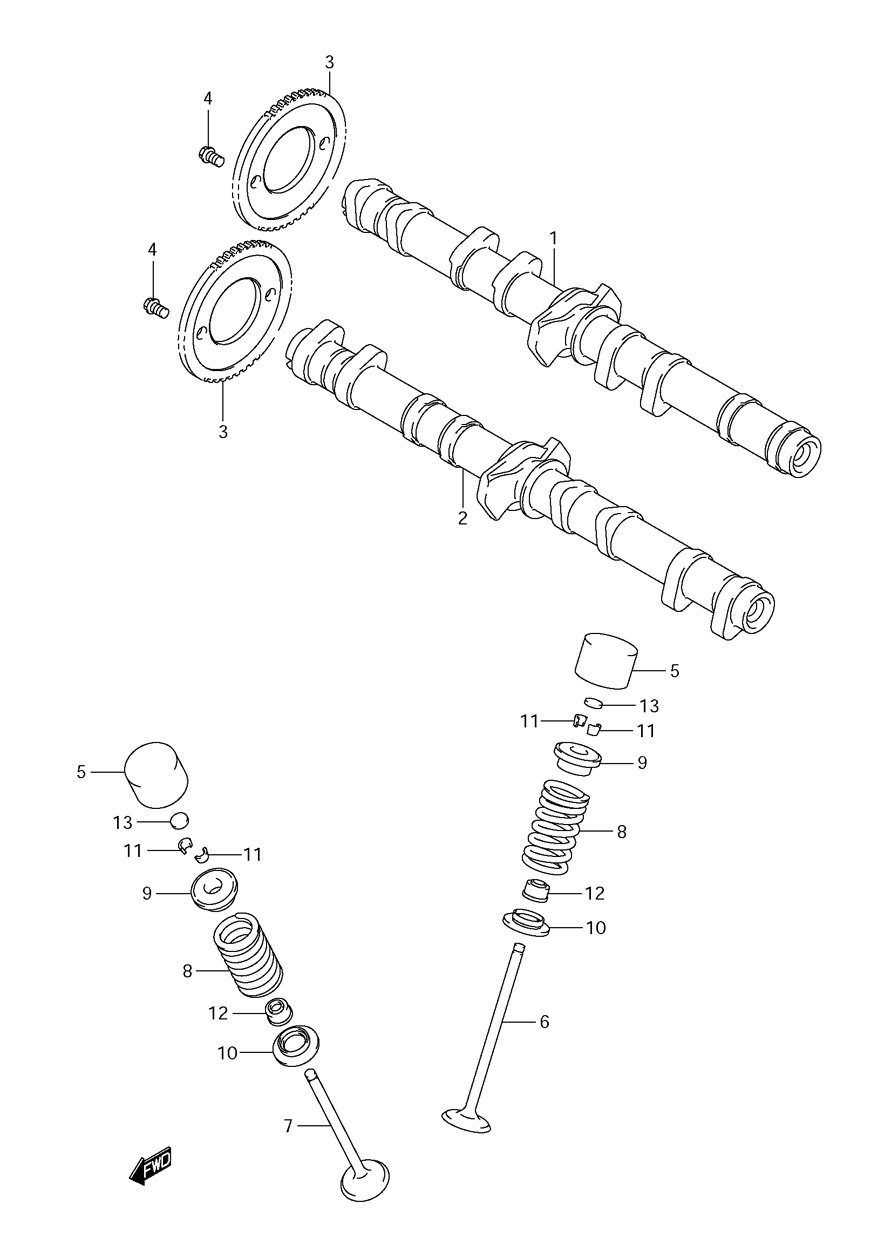

CAMSHAFT W/ VALVES для Suzuki GSF1250SA K9 BANDIT W/ ABS - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    12710-18H00 CAMSHAFT, INTAKE
    CAMSHAFT, INTAKE
  • 2
    12720-18H00 CAMSHAFT, EXHAUST
    CAMSHAFT, EXHAUST
  • 3
    12741-18H00 SPROCKET
    SPROCKET
  • 4
    09103-07001 BOLT
    BOLT
  • 5
    12891-18H00 TAPPET
    TAPPET
  • 6
    12911-18H00 VALVE, INTAKE
    VALVE, INTAKE
  • 7
    12912-46E00 VALVE, EXHAUST
    VALVE, EXHAUST
  • 8
    12921-18H00 SPRING, VALVE
    SPRING, VALVE
  • 9
    12931-17E01 RETAINER, VALVE SPRING
    RETAINER, VALVE SPRING
  • 10
    12933-17E00 SEAT, VALVE SPRING
    SEAT, VALVE SPRING
  • 11
    12932-32C00 COTTER, VALVE
    COTTER, VALVE
  • 12
    09289-04002 OIL SEAL
    OIL SEAL
  • 13
    12892-05C00-120 SHIM, TAPPET (THICKNESS: 1.20)
    SHIM, TAPPET (THICKNESS: 1.20)
  • 13
    12892-05C00-125 SHIM, TAPPET (THICKNESS: 1.25)
    SHIM, TAPPET (THICKNESS: 1.25)
  • 13
    12892-05C00-130 SHIM, TAPPET (THICKNESS: 1.30)
    SHIM, TAPPET (THICKNESS: 1.30)
  • 13
    12892-05C00-135 SHIM, TAPPET (THICKNESS: 1.35)
    SHIM, TAPPET (THICKNESS: 1.35)
  • 13
    12892-05C00-140 SHIM, TAPPET (THICKNESS: 1.40)
    SHIM, TAPPET (THICKNESS: 1.40)
  • 13
    12892-05C00-145 SHIM, TAPPET (THICKNESS: 1.45)
    SHIM, TAPPET (THICKNESS: 1.45)
  • 13
    12892-05C00-150 SHIM, TAPPET (THICKNESS: 1.50)
    SHIM, TAPPET (THICKNESS: 1.50)
  • 13
    12892-05C00-155 SHIM, TAPPET (THICKNESS: 1.55)
    SHIM, TAPPET (THICKNESS: 1.55)
  • 13
    12892-05C00-160 SHIM, TAPPET (THICKNESS: 1.60)
    SHIM, TAPPET (THICKNESS: 1.60)
  • 13
    12892-05C00-165 SHIM, TAPPET (THICKNESS: 1.65)
    SHIM, TAPPET (THICKNESS: 1.65)
  • 13
    12892-05C00-170 SHIM, TAPPET (THICKNESS: 1.70)
    SHIM, TAPPET (THICKNESS: 1.70)
  • 13
    12892-05C00-175 SHIM, TAPPET (THICKNESS: 1.75)
    SHIM, TAPPET (THICKNESS: 1.75)
  • 13
    12892-05C00-180 SHIM, TAPPET (THICKNESS: 1.80)
    SHIM, TAPPET (THICKNESS: 1.80)
  • 13
    12892-05C00-185 SHIM, TAPPET (THICKNESS: 1.85)
    SHIM, TAPPET (THICKNESS: 1.85)
  • 13
    12892-05C00-190 SHIM, TAPPET (THICKNESS: 1.90)
    SHIM, TAPPET (THICKNESS: 1.90)
  • 13
    12892-05C00-195 SHIM, TAPPET (THICKNESS: 1.95)
    SHIM, TAPPET (THICKNESS: 1.95)
  • 13
    12892-05C00-200 SHIM, TAPPET (THICKNESS: 2.00)
    SHIM, TAPPET (THICKNESS: 2.00)
  • 13
    12892-05C00-205 SHIM, TAPPET (THICKNESS: 2.05)
    SHIM, TAPPET (THICKNESS: 2.05)
  • 13
    12892-05C00-210 SHIM, TAPPET (THICKNESS: 2.10)
    SHIM, TAPPET (THICKNESS: 2.10)
  • 13
    12892-05C00-215 SHIM, TAPPET (THICKNESS: 2.15)
    SHIM, TAPPET (THICKNESS: 2.15)
  • 13
    12892-05C00-220 SHIM, TAPPET (THICKNESS: 2.20)
    SHIM, TAPPET (THICKNESS: 2.20)
  • 14
    12800-05830 SHIM SET, TAPPET THICKNESS: 1.20, 1.25...2.95, 3.00 (5PCS.EACH) & NO.15 (OPTIONAL) (NOT SHOWN)
    SHIM SET, TAPPET THICKNESS: 1.20, 1.25...2.95, 3.00 (5PCS.EACH) & NO.15 (OPTIONAL) (NOT SHOWN)
  • 15
    99000-69491 ...CASE, TAPPET SHIM (OPTIONAL) (NOT SHOWN)
    ...CASE, TAPPET SHIM (OPTIONAL) (NOT SHOWN)
