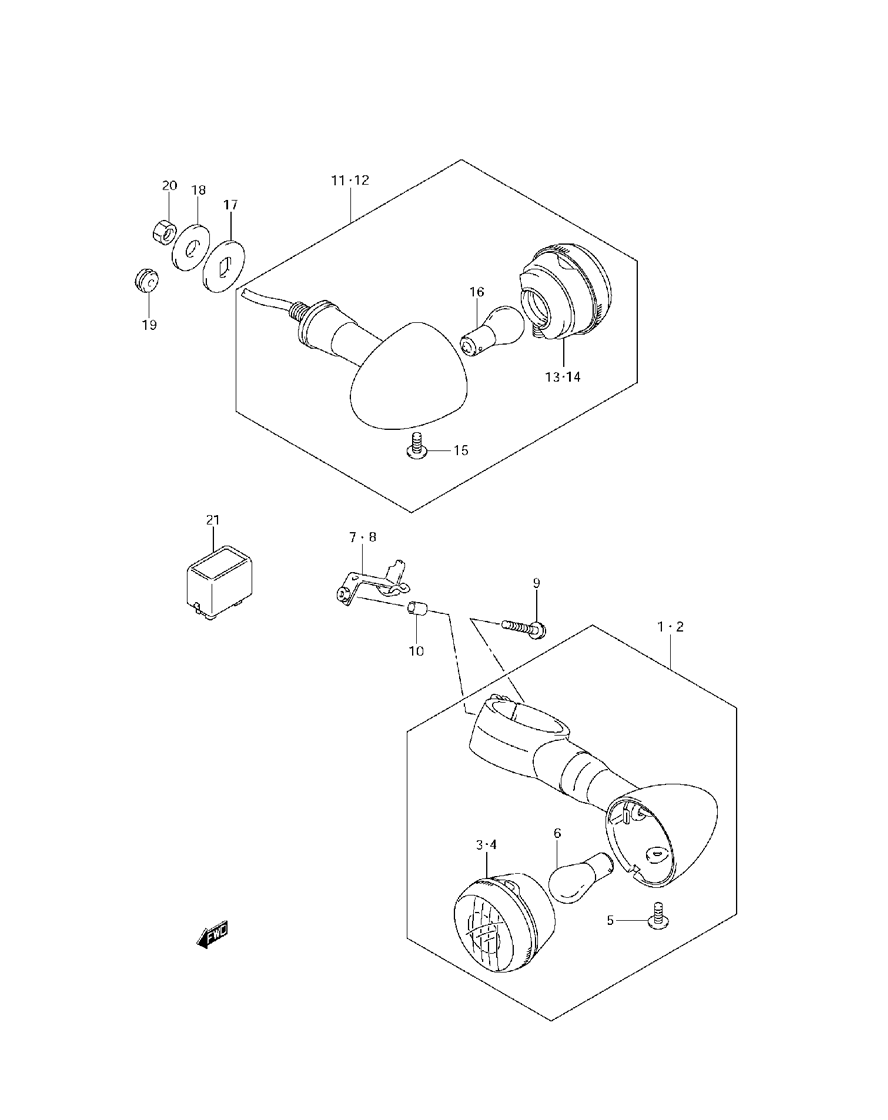

TAILLIGHT/TURN SIGNAL ASSY. для Suzuki VZ800 K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    35601-48E70 FRONT TURNSIGNAL ASSY, RIGHT HAND (VZ800) (INCLUDES ITEM(S) 3 - 6)
    FRONT TURNSIGNAL ASSY, RIGHT HAND (VZ800) (INCLUDES ITEM(S) 3 - 6)
  • 2
    35602-48E70 FRONT TURNSIGNAL ASSY, LEFT HAND (VZ800) (INCLUDES ITEM(S) 3 - 6)
    FRONT TURNSIGNAL ASSY, LEFT HAND (VZ800) (INCLUDES ITEM(S) 3 - 6)
  • 5
    35623-38AA0 SCREW
    SCREW
  • 6
    09471-12083 BULB (12V21/5W) (VZ800)
    BULB (12V21/5W) (VZ800)
  • 7
    35671-39G00 BRACKET, FONT, RIGHT HAND
    BRACKET, FONT, RIGHT HAND
  • 8
    35681-39G00 BRACKET, FRONT, LEFT HAND
    BRACKET, FRONT, LEFT HAND
  • 9
    09136-06082 SCREW
    SCREW
  • 10
    09180-06121 SPACER (6.4X9.2X12)
    SPACER (6.4X9.2X12)
  • 11
    35603-38AE0 LAMP ASSY, REAR RIGHT HAND (VZ800) (INCLUDES ITEM(S) 13 - 16)
    LAMP ASSY, REAR RIGHT HAND (VZ800) (INCLUDES ITEM(S) 13 - 16)
  • 12
    35604-38AE0 LAMP ASSY, REAR LEFT HAND (VZ800) (INCLUDES ITEM(S) 13 - 16)
    LAMP ASSY, REAR LEFT HAND (VZ800) (INCLUDES ITEM(S) 13 - 16)
  • 13
    35630-38AE1 LENS (VZ800)
    LENS (VZ800)
  • 14
    35610-38AE1 LENS (VZ800)
    LENS (VZ800)
  • 15
    35623-38AA0 SCREW
    SCREW
  • 16
    09471-12045 BULB (12V21W) (VZ800)
    BULB (12V21W) (VZ800)
  • 17
    35695-17C00 SPACER, REAR TURNSIGNAL
    SPACER, REAR TURNSIGNAL
  • 18
    09160-10501 WASHER (10.5X30X2.3)
    WASHER (10.5X30X2.3)
  • 19
    09308-05015 GROMMET
    GROMMET
  • 20
    08310-0010B NUT
    NUT
  • 21
    38610-03F00 RELAY ASSY, TURNSIGNAL LAMP
    RELAY ASSY, TURNSIGNAL LAMP
