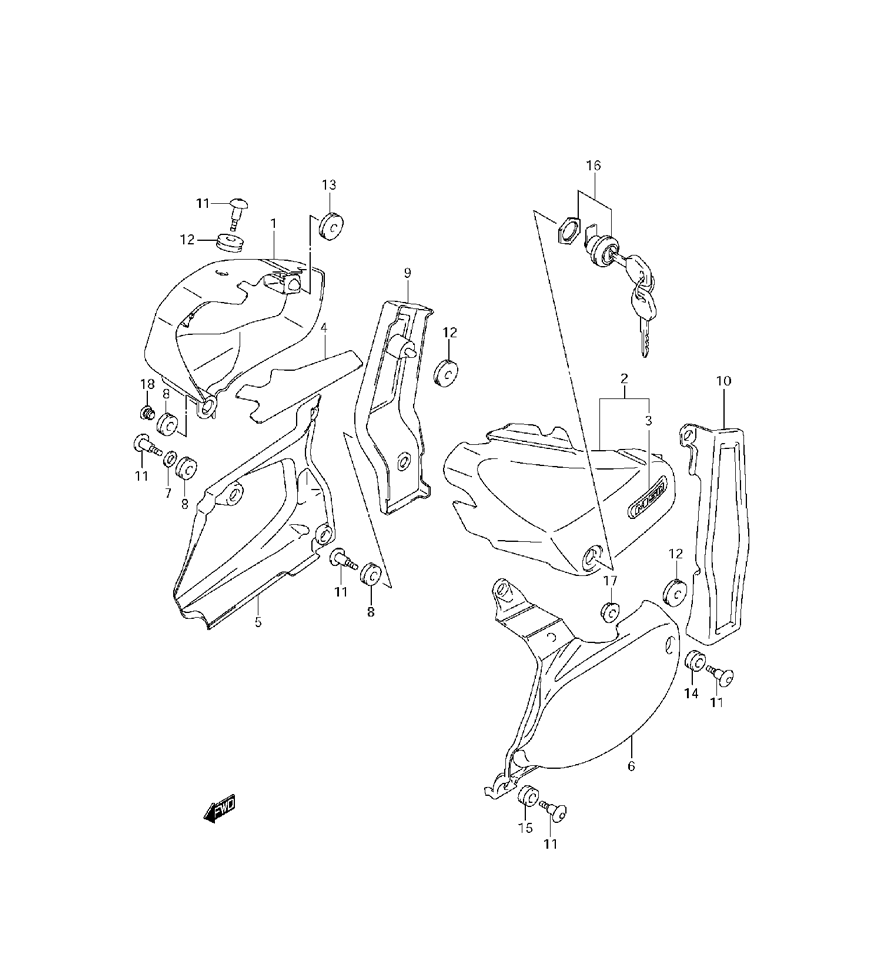

SIDE COVER для Suzuki VZ800 K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    47110-39G00-YAY COVER, FRAME RIGHT HAND (BLACK YAY) (US & CANADA) (INCLUDES ITEM(S) 3)
    COVER, FRAME RIGHT HAND (BLACK YAY) (US & CANADA) (INCLUDES ITEM(S) 3)
  • 1
    47110-39G10-YAY COVER, FRAME RIGHT HAND (BLACK YAY) (CALIF ONLY) (INCLUDES ITEM(S) 3)
    COVER, FRAME RIGHT HAND (BLACK YAY) (CALIF ONLY) (INCLUDES ITEM(S) 3)
  • 2
    47210-39G00-YAY COVER, FRAME LEFT HAND (BLACK YAY) (CALIF ONLY) (INCLUDES ITEM(S) 3)
    COVER, FRAME LEFT HAND (BLACK YAY) (CALIF ONLY) (INCLUDES ITEM(S) 3)
  • 3
    68131-39G00 EMBLEM, M50
    EMBLEM, M50
  • 4
    47166-41F00 SHIELD, FRAME COVER RIGHT HAND
    SHIELD, FRAME COVER RIGHT HAND
  • 5
    47130-41F10 COVER, SIDE LOWER RIGHT HAND
    COVER, SIDE LOWER RIGHT HAND
  • 6
    47231-41F10 COVER, SIDE LOWER LEFT HAND
    COVER, SIDE LOWER LEFT HAND
  • 7
    09160-10123 WASHER, 10.5X20X
    WASHER, 10.5X20X
  • 8
    09320-08021 CUSHION
    CUSHION
  • 9
    47141-41F01-019 COVER, SIDE REAR RIGHT HAND (BLACK 019)
    COVER, SIDE REAR RIGHT HAND (BLACK 019)
  • 10
    47241-41F00-019 COVER, SIDE REAR LEFT HAND (BLACK 019)
    COVER, SIDE REAR LEFT HAND (BLACK 019)
  • 11
    09139-06126 SCREW
    SCREW
  • 12
    09320-08018 CUSHION
    CUSHION
  • 13
    09320-08028 CUSHION BOX REAR
    CUSHION BOX REAR
  • 14
    09320-09501 CUSHION
    CUSHION
  • 15
    09320-09045 CUSHION BOX FRONT
    CUSHION BOX FRONT
  • 16
    95700-07860 LOCK SET, FUEL LID
    LOCK SET, FUEL LID
  • 17
    08316-1006B NUT, SIDE LOWER LEFT HAND
    NUT, SIDE LOWER LEFT HAND
  • 18
    09250-09001 CAP
    CAP
