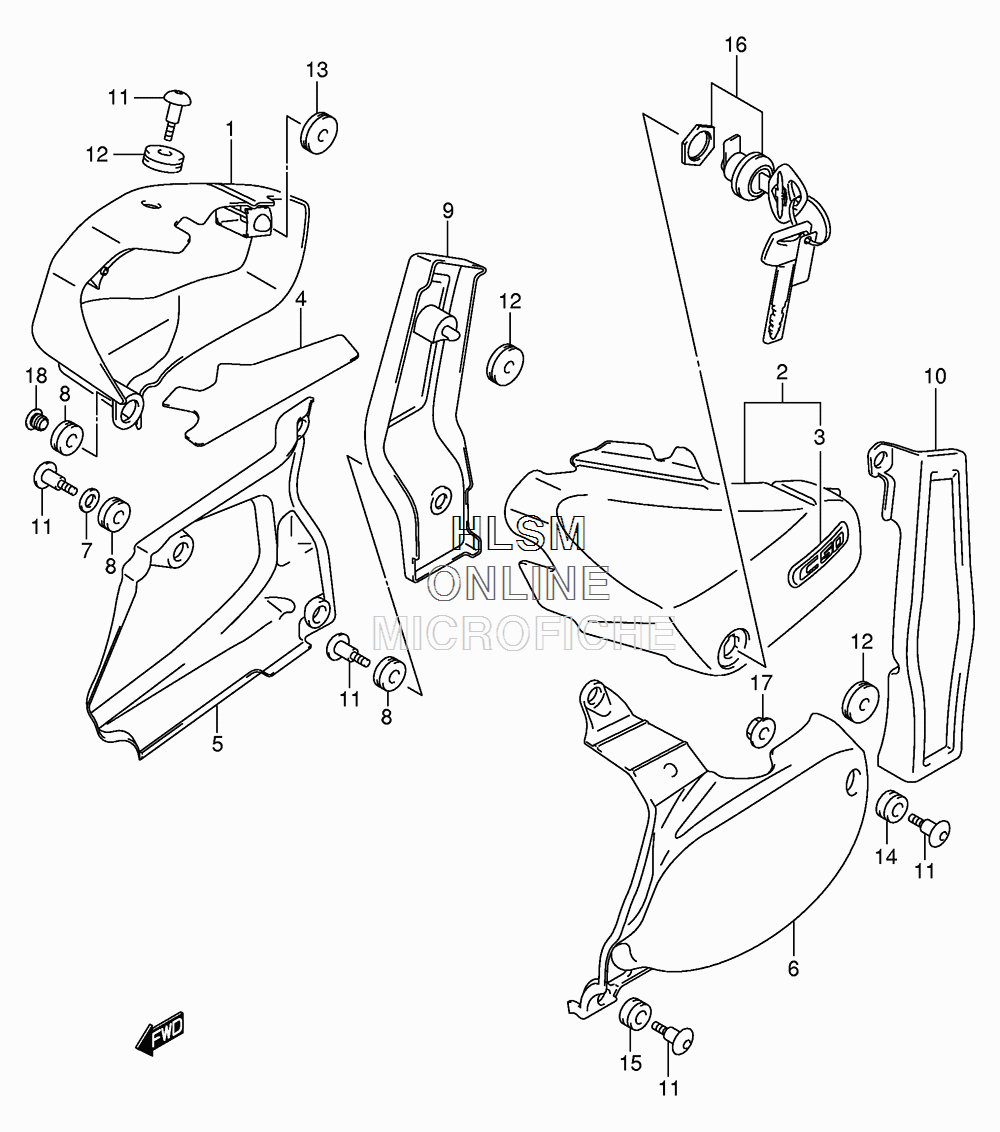

SIDE COVER для Suzuki VL800T K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    47110-41FA1-YAY COVER, FRAME RIGHT HAND (YAY - BLACK)
    COVER, FRAME RIGHT HAND (YAY - BLACK)
  • 1
    47110-41FA1-YHL COVER, FRAME RIGHT HAND (RED) (YHL - RED FOR EUB - RED/WHITE)
    COVER, FRAME RIGHT HAND (RED) (YHL - RED FOR EUB - RED/WHITE)
  • 1
    47110-41FB1-YAY COVER, FRAME RIGHT HAND (YAY - BLACK) (CALIF ONLY)
    COVER, FRAME RIGHT HAND (YAY - BLACK) (CALIF ONLY)
  • 1
    47110-41FB1-YHL COVER, FRAME RIGHT HAND (YHL - RED FOR EUB - RED/WHITE) (CALIF ONLY)
    COVER, FRAME RIGHT HAND (YHL - RED FOR EUB - RED/WHITE) (CALIF ONLY)
  • 2
    47210-41FA0-YAY COVER, FRAME LEFT HAND (YAY - BLACK)
    COVER, FRAME LEFT HAND (YAY - BLACK)
  • 2
    47210-41FA0-YHL COVER, FRAME LEFT HAND (YHL - RED FOR EUB - RED/WHITE)
    COVER, FRAME LEFT HAND (YHL - RED FOR EUB - RED/WHITE)
  • 3
    68131-41F50 ...EMBLEM, C50T
    ...EMBLEM, C50T
  • 4
    47166-41F00 SHIELD, FRAME COVER RH
    SHIELD, FRAME COVER RH
  • 5
    47130-41F00 COVER, SIDE LOWER RH
    COVER, SIDE LOWER RH
  • 6
    47231-41F00 COVER, SIDE LOWER LH
    COVER, SIDE LOWER LH
  • 7
    09160-10123 WASHER
    WASHER
  • 8
    09320-08021 CUSHION
    CUSHION
  • 9
    47141-41F01-019 COVER, SIDE REAR RIGHT HAND (019 - BLACK)
    COVER, SIDE REAR RIGHT HAND (019 - BLACK)
  • 10
    47241-41F00-019 COVER, SIDE REAR LEFT HAND (019 - BLACK)
    COVER, SIDE REAR LEFT HAND (019 - BLACK)
  • 11
    09139-06126 SCREW
    SCREW
  • 12
    09320-08018 CUSHION
    CUSHION
  • 13
    09320-08028 CUSHION BOX REAR
    CUSHION BOX REAR
  • 14
    09320-09501 CUSHION
    CUSHION
  • 15
    09320-09045 CUSHION BOX FRONT
    CUSHION BOX FRONT
  • 16
    95700-07860 LOCK SET, FUEL LID
    LOCK SET, FUEL LID
  • 17
    08316-1006B NUT, SIDE LOWER LH
    NUT, SIDE LOWER LH
  • 18
    09250-09001 CAP
    CAP
