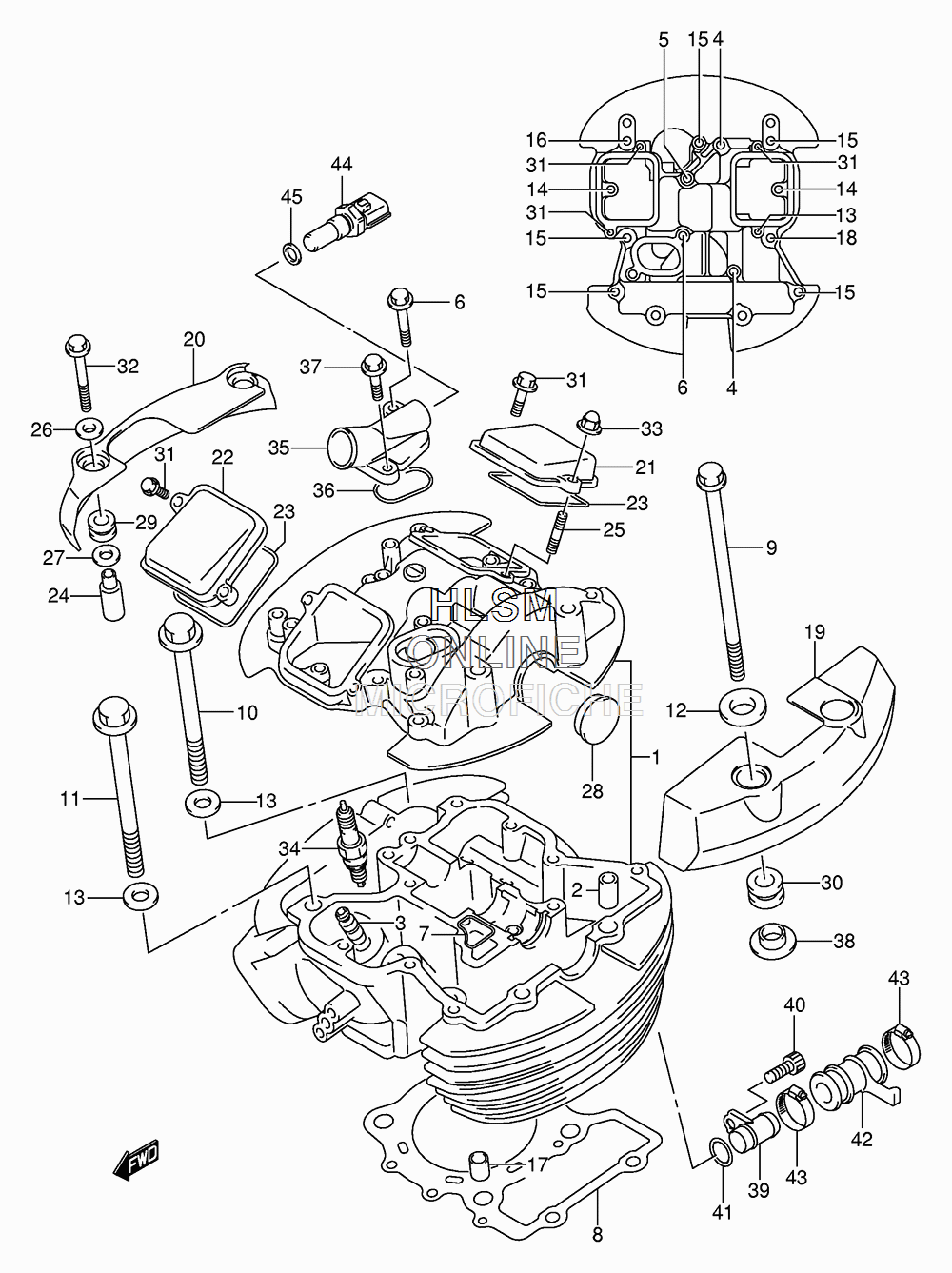

CYLINDER HEAD (FRONT) для Suzuki VL800T K8 - 2008 года выпуска

№

Артикул

Название
1

11101-41FB0 HEAD ASSY, CYLINDER FRONT (INC 2)

HEAD ASSY, CYLINDER FRONT (INC 2)

130 ₽
2

09206-11004 ...PIN (11X14)

...PIN (11X14)

940 ₽
3

11115-38A71 GUIDE, VALVE (OS 0.3) (OPTIONAL)

GUIDE, VALVE (OS 0.3) (OPTIONAL)

5 830 ₽
4

09103-06101 BOLT (6X50)

BOLT (6X50)

350 ₽
5

09103-06102 BOLT (6X55)

BOLT (6X55)

350 ₽
6

07130-0680B BOLT (6X80)

BOLT (6X80)

660 ₽
7

11123-38A00 GASKET, CYLINDER HEAD COVER

GASKET, CYLINDER HEAD COVER

660 ₽
8

11141-41F00 GASKET, CYLINDER HEAD FRONT

GASKET, CYLINDER HEAD FRONT

6 980 ₽
9

09103-08370 BOLT (L:250)

BOLT (L:250)

2 280 ₽
10

09103-10133 BOLT (10X155)

BOLT (10X155)

1 360 ₽
11

09103-10134 BOLT (10X165)

BOLT (10X165)

1 360 ₽
12

09160-08130 WASHER (8.5X24X1.6)

WASHER (8.5X24X1.6)

350 ₽
13

09160-10039 WASHER (10.5X22X2.3)

WASHER (10.5X22X2.3)

390 ₽
14

01550-0625B BOLT (L:25)

BOLT (L:25)

410 ₽
15

01550-0630B BOLT (L:30)

BOLT (L:30)

470 ₽
16

01550-0640B BOLT (L:40)

BOLT (L:40)

670 ₽
17

04211-13189 KNOCK PIN

KNOCK PIN

380 ₽
18

07120-0630B BOLT (L:30)

BOLT (L:30)

590 ₽
19

11171-41FA0 CAP, CYLINDER HEAD COVER FL

CAP, CYLINDER HEAD COVER FL

24 700 ₽
20

11172-41F00 CAP, CYLINDER HEAD COVER FR

CAP, CYLINDER HEAD COVER FR

24 700 ₽
21

11175-38A11 CAP, INSPECTION INTAKE

CAP, INSPECTION INTAKE

3 300 ₽
22

11176-38A11 CAP, INSPECTION EXHAUST

CAP, INSPECTION EXHAUST

3 300 ₽
22

11176-38A11 CAP, INSPECTION EXHAUST

CAP, INSPECTION EXHAUST

3 300 ₽
23

11177-38A00 GASKET, INSPECTION CAP

GASKET, INSPECTION CAP

810 ₽
24

11179-10F10 SPACER, HEAD COVER CAP

SPACER, HEAD COVER CAP

1 810 ₽
25

09108-06102 BOLT, INSPECTION CAP STUD

BOLT, INSPECTION CAP STUD

560 ₽
26

09160-06084 WASHER, HEAD COVER CAP UPPER

WASHER, HEAD COVER CAP UPPER

310 ₽
27

09160-09016 WASHER, HEAD COVER CAP LOWER

WASHER, HEAD COVER CAP LOWER

330 ₽
28

09241-30004 PLUG, CYLINDER HEAD

PLUG, CYLINDER HEAD

1 150 ₽
29

09320-09016 CUSHION, HEAD COVER CAP

CUSHION, HEAD COVER CAP

350 ₽
30

09320-13015 CUSHION, HEAD COVER BOLT

CUSHION, HEAD COVER BOLT

470 ₽
31

01547-0620B BOLT, INSPECTION CAP

BOLT, INSPECTION CAP

420 ₽
32

01547-06507 BOLT, HEAD COVER CAP

BOLT, HEAD COVER CAP

400 ₽
33

09159-06093 NUT, INSPECTION CAP

NUT, INSPECTION CAP

440 ₽
34

09482-00354 SPARK PLUG, DPR7EA-9 (NGK)

SPARK PLUG, DPR7EA-9 (NGK)

590 ₽
34

09482-00355 SPARK PLUG, X22EPR-U9 (ND)

SPARK PLUG, X22EPR-U9 (ND)

590 ₽
34

09482-00330 SPARK PLUG, DPR9EA-9 (NGK) (OPTIONAL)

SPARK PLUG, DPR9EA-9 (NGK) (OPTIONAL)

530 ₽
34

09482-00331 SPARK PLUG, X27EPR-U9 (ND) (OPTIONAL)

SPARK PLUG, X27EPR-U9 (ND) (OPTIONAL)

1 050 ₽
34

09482-00334 SPARK PLUG, DPR8EA-9 (NGK) (OPTIONAL)

SPARK PLUG, DPR8EA-9 (NGK) (OPTIONAL)

490 ₽
34

09482-00335 SPARK PLUG, X24EPR-U9 (ND) (OPTIONAL)

SPARK PLUG, X24EPR-U9 (ND) (OPTIONAL)

1 050 ₽
35

11181-41F00 UNION, CYLINDER HEAD OUTLET

UNION, CYLINDER HEAD OUTLET

7 340 ₽
36

11182-38A00 O RING, OUTLET UNION

O RING, OUTLET UNION

480 ₽
37

07130-0620B BOLT

BOLT

530 ₽
38

09301-08007 BUSH, HEAD COVER BOLT

BUSH, HEAD COVER BOLT

940 ₽
39

17891-41F10 UNION, CYLINDER HEAD JOINT

UNION, CYLINDER HEAD JOINT

2 680 ₽
40

07130-0612B BOLT, JOINT UNION

BOLT, JOINT UNION

530 ₽
41

09280-16005 O RING

O RING

390 ₽
42

17854-41F01 HOSE, HEAD JOINT

HOSE, HEAD JOINT

2 760 ₽
43

09402-28513 CLAMP, JOINT

CLAMP, JOINT

1 200 ₽
44

13650-57F00 SENSOR, WATER TEMP

SENSOR, WATER TEMP

18 050 ₽
45

09168-12017 GASKET

GASKET

350 ₽
