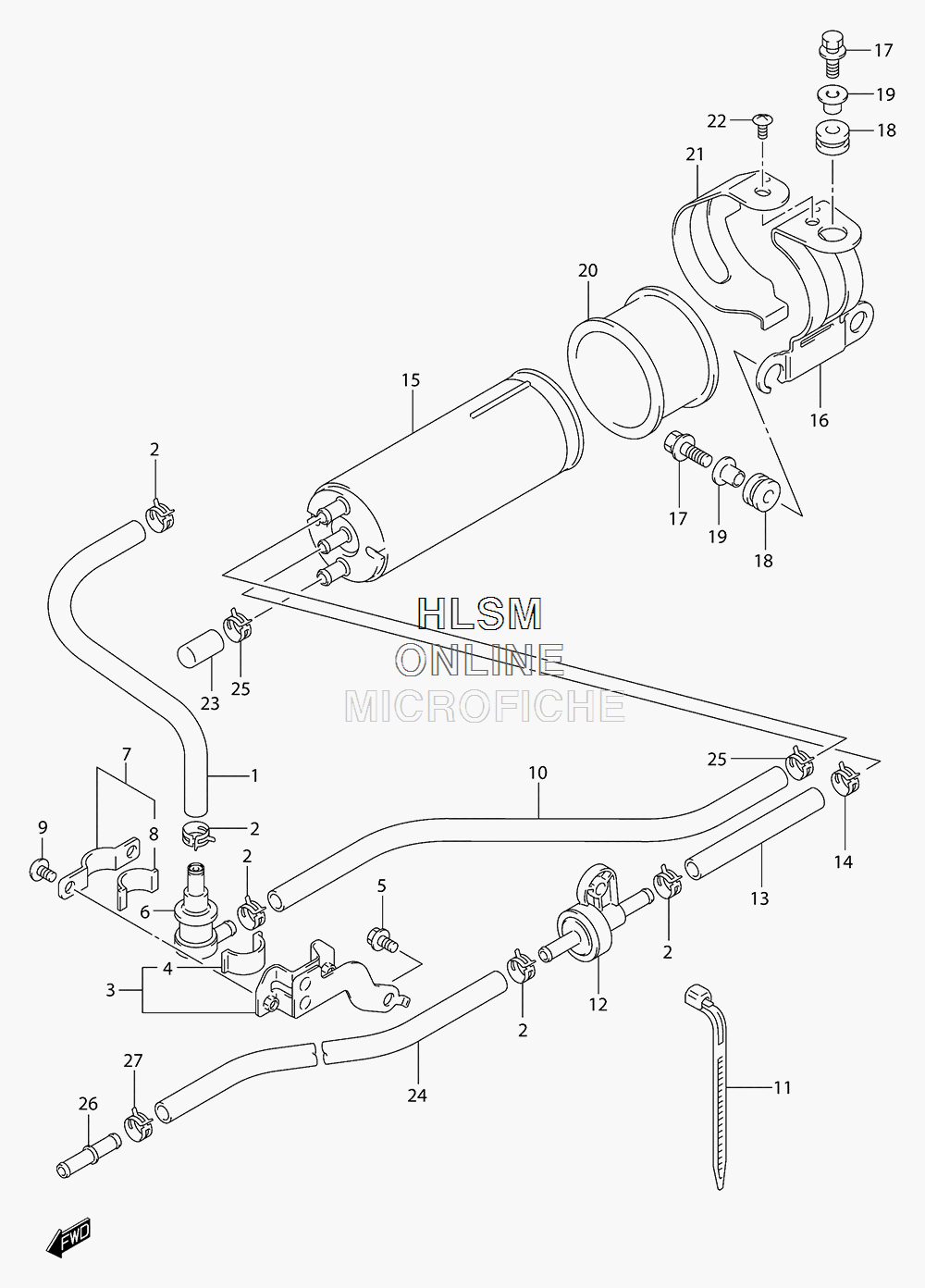

EVAP SYSTEM (CALIF.) для Suzuki SV650S K8 - 2008 года выпуска
-
№АртикулНазвание
-
144434-16G10 HOSE, TANK AND VALVEHOSE, TANK AND VALVE
-
209401-11413 CLIPCLIP
-
344890-16G00 PLATE, BREATHER VALVEPLATE, BREATHER VALVE
-
444894-24A00 ...CUSHION...CUSHION
-
501550-0610B BOLTBOLT
-
644240-17C00 VALVE, TANK BREATHERVALVE, TANK BREATHER
-
744892-24A00 PLATEPLATE
-
844894-24A00 ...CUSHION...CUSHION
-
902142-0408B SCREWSCREW
-
1044435-16G00 HOSE, BREATHER VALVEHOSE, BREATHER VALVE
-
1109407-18402 CLAMPCLAMP
-
1244240-24F00 VALVE, 2 WAYVALVE, 2 WAY
-
1344437-16G00 HOSE, VALVE AND CANISTERHOSE, VALVE AND CANISTER
-
1409401-11413 CLIPCLIP
-
1517210-26E00 CANISTERCANISTER
-
1644881-16G00 BRACKET, CANISTERBRACKET, CANISTER
-
1709116-06025 BOLT, BRACKETBOLT, BRACKET
-
1809320-08001 CUSHIONCUSHION
-
1909169-06062 SPACERSPACER
-
2044883-26E00 CUSHION, CANISTERCUSHION, CANISTER
-
2144882-16G00 PLATE, CANISTERPLATE, CANISTER
-
2202142-0610B SCREWSCREW
-
2309251-07003 CAPCAP
-
2409359-54113-600 HOSE, PURGE (L:600->540)HOSE, PURGE (L:600->540)
-
2509401-12404 CLIPCLIP
-
2609367-06009 JOINTJOINT
-
2709401-11413 CLIPCLIP
