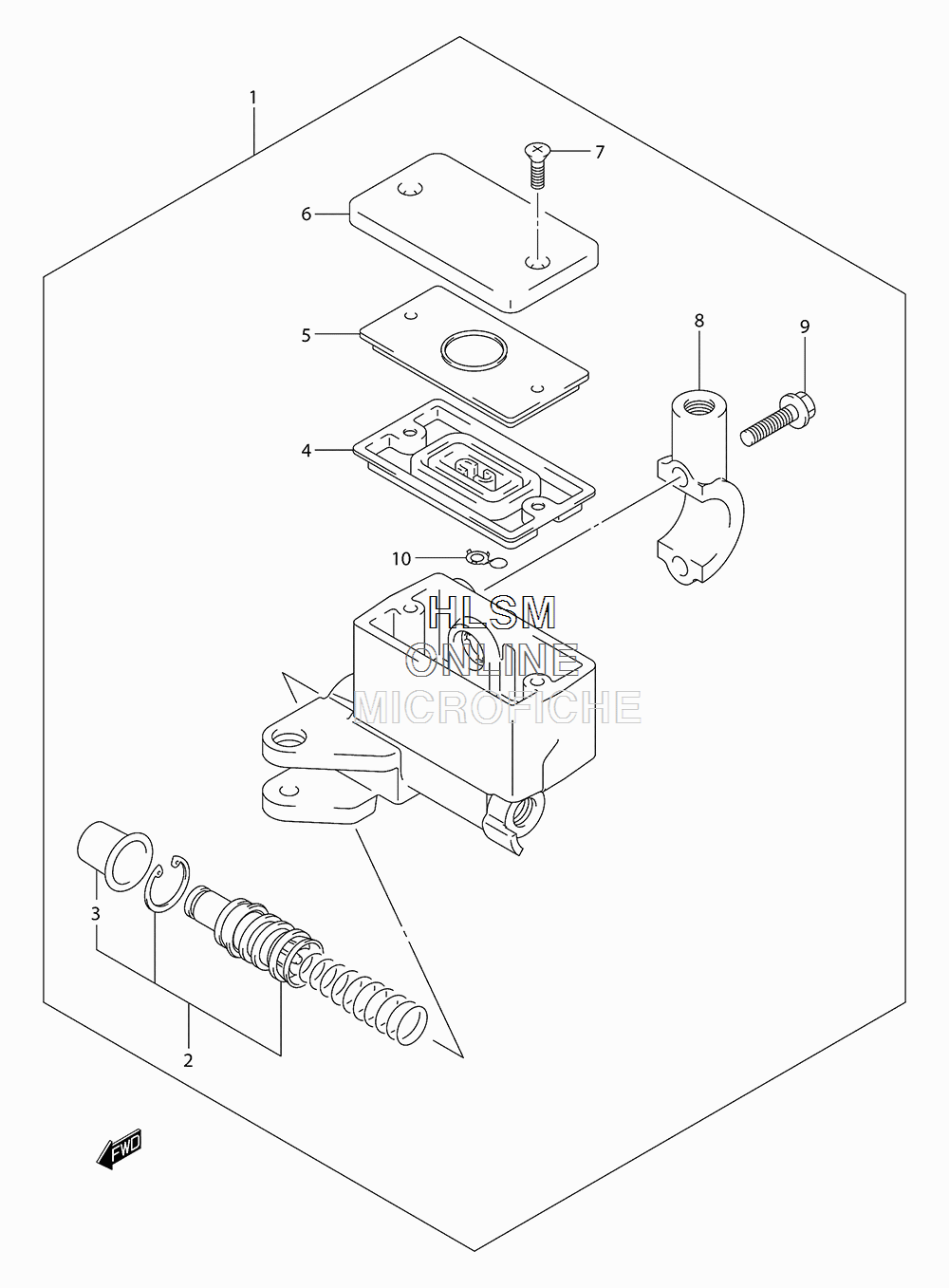

BRAKE - FRONT MASTER CYLINDER для Suzuki SV650S K8 - 2008 года выпуска
-
№АртикулНазвание
-
159600-10G30 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
259600-45870 ...PISTON/CUP SET...PISTON/CUP SET
-
359666-44300 ......BOOT......BOOT
-
459667-49460 ...DIAPHRAGM...DIAPHRAGM
-
559668-41C00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
659669-10G00 ...CAP...CAP
-
769689-49300 ...SCREW...SCREW
-
859671-32F00 ...HOLDER...HOLDER
-
959675-02FA0 ...BOLT (6X22)...BOLT (6X22)
-
1059664-32F00 ...PROTECTOR...PROTECTOR
