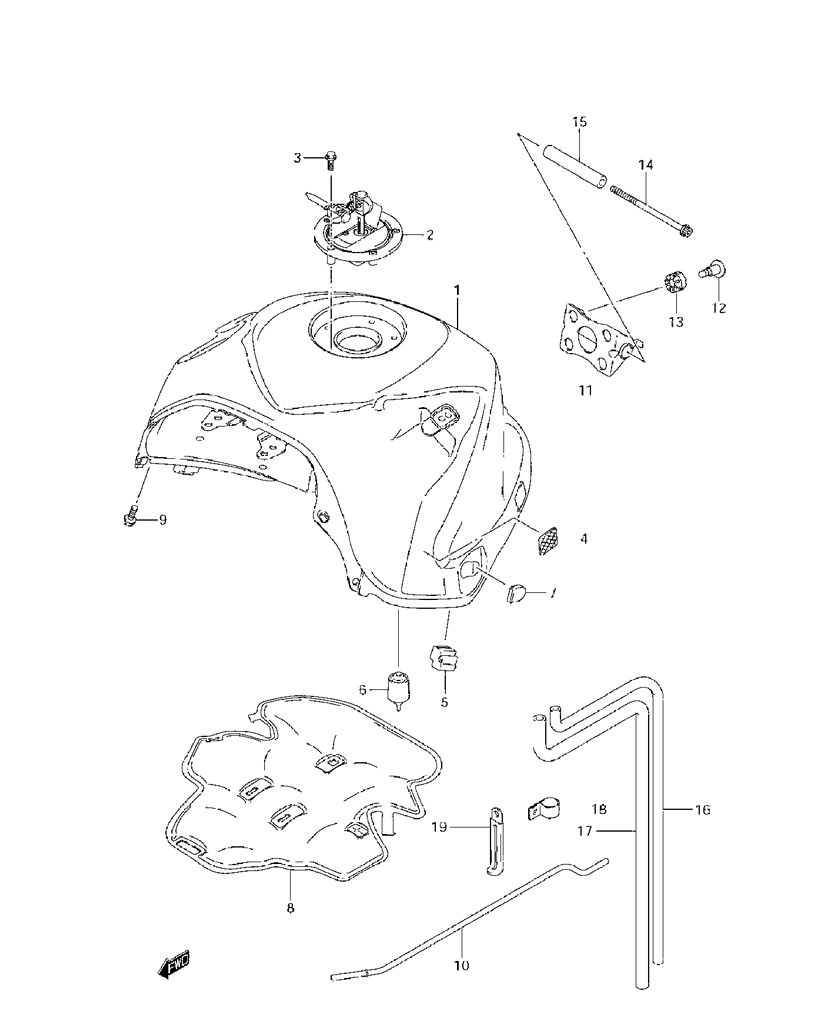

FUEL TANK для Suzuki GSX-R1000 K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    44100-21H60-019 TANK ASSY, FUEL (019 BLACK) (EXCEPT CALIF.) (FOR CRU, FGG)
    TANK ASSY, FUEL (019 BLACK) (EXCEPT CALIF.) (FOR CRU, FGG)
  • 1
    44100-21H60-YKY TANK ASSY, FUEL (YKY BLUE) (EXCEPT CALIF.) (FOR CWH)
    TANK ASSY, FUEL (YKY BLUE) (EXCEPT CALIF.) (FOR CWH)
  • 1
    44100-21H60-YBD TANK ASSY, FUEL (YBD WHITE) (EXCEPT CALIF.) (FOR FGF)
    TANK ASSY, FUEL (YBD WHITE) (EXCEPT CALIF.) (FOR FGF)
  • 1
    44100-21H80-019 TANK ASSY, FUEL (019 BLACK) (CALIF. ONLY) (FOR CRU, FGG)
    TANK ASSY, FUEL (019 BLACK) (CALIF. ONLY) (FOR CRU, FGG)
  • 1
    44100-21H80-YKY TANK ASSY, FUEL (YKY BLUE) (CALIF. ONLY) (FOR CWH)
    TANK ASSY, FUEL (YKY BLUE) (CALIF. ONLY) (FOR CWH)
  • 1
    44100-21H80-YBD TANK ASSY, FUEL (YBD WHITE) (CALIF. ONLY) (FOR FGF)
    TANK ASSY, FUEL (YBD WHITE) (CALIF. ONLY) (FOR FGF)
  • 2
    44200-16850 CAP SET, FUEL TANK (EXCEPT CALIF.)
    CAP SET, FUEL TANK (EXCEPT CALIF.)
  • 2
    44200-16870 CAP SET, FUEL TANK (CALIF. ONLY)
    CAP SET, FUEL TANK (CALIF. ONLY)
  • 3
    09106-05017 BOLT
    BOLT
  • 4
    44572-13G00 FASTENER
    FASTENER
  • 5
    44541-41G00 CUSHION, SIDE
    CUSHION, SIDE
  • 6
    44542-41G00 CUSHION, LOWER
    CUSHION, LOWER
  • 7
    09329-18001 CUSHION, SIDE COVER
    CUSHION, SIDE COVER
  • 8
    44191-21H00 SHIELD, HEAT
    SHIELD, HEAT
  • 9
    09139-06172 SCREW, BRACKET FRONT
    SCREW, BRACKET FRONT
  • 10
    44574-35F00 STAY, FUEL TANK
    STAY, FUEL TANK
  • 11
    44530-41G00 BRACKET, NO.1
    BRACKET, NO.1
  • 12
    09139-06132 SCREW
    SCREW
  • 13
    09320-08071 CUSHION
    CUSHION
  • 14
    09106-06119 BOLT, JOINT
    BOLT, JOINT
  • 15
    44561-18G00 SPACER, JOINT
    SPACER, JOINT
  • 16
    44423-21H00 HOSE, DRAIN
    HOSE, DRAIN
  • 17
    44424-21H00 HOSE, BREATHER
    HOSE, BREATHER
  • 18
    09403-11307 CLAMP, NO.1
    CLAMP, NO.1
  • 19
    09404-06433 CLAMP, NO.2
    CLAMP, NO.2
