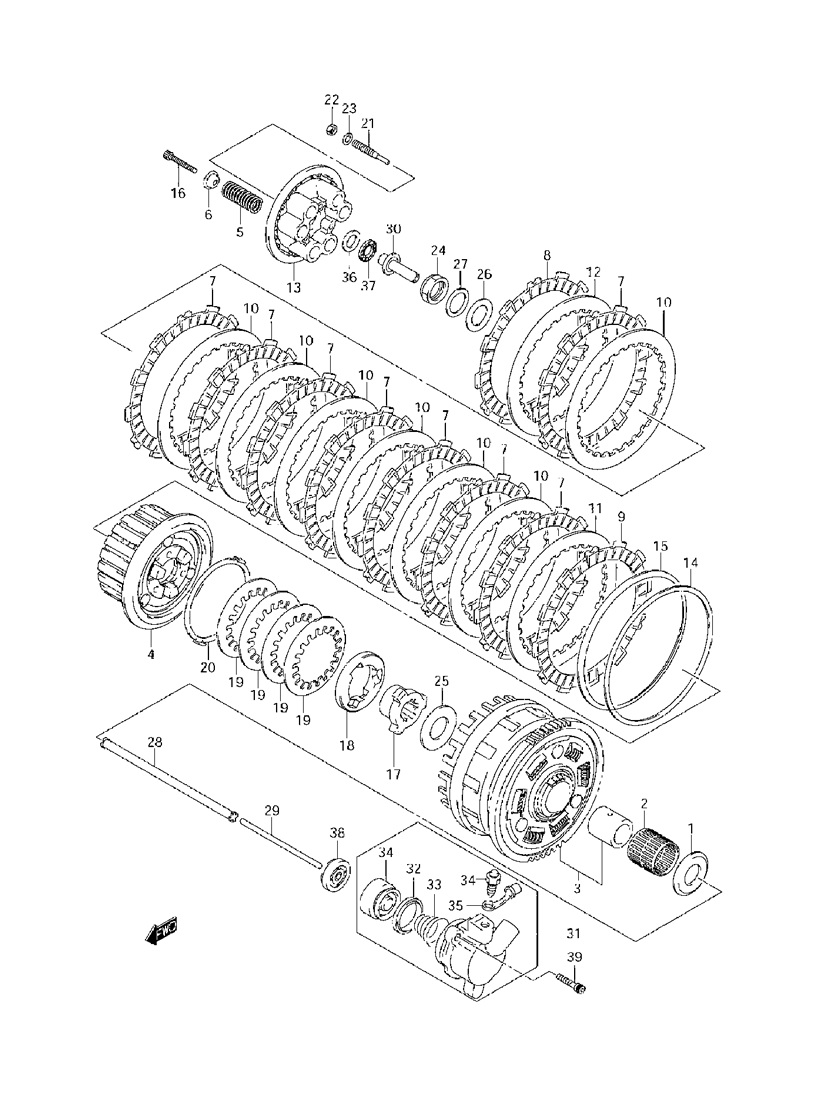

CLUTCH для Suzuki GSX-R1000 K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    09160-25073 WASHER, PRI DRIVEN GEAR THR 25X54X2.4
    WASHER, PRI DRIVEN GEAR THR 25X54X2.4
  • 2
    09263-35017 BEARING, PRIMARY DRIVEN GEAR
    BEARING, PRIMARY DRIVEN GEAR
  • 3
    21200-40880 GEAR ASSY, PRIMARY DRIVEN NT:73
    GEAR ASSY, PRIMARY DRIVEN NT:73
  • 4
    21410-41G20 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 5
    21413-41G00 SPRING, CLUTCH
    SPRING, CLUTCH
  • 6
    21414-29F00 WASHER, CLUTCH SPRING
    WASHER, CLUTCH SPRING
  • 7
    21441-36F00 PLATE, CLUTCH DRIVE NO.1
    PLATE, CLUTCH DRIVE NO.1
  • 8
    21441-36F20 PLATE, CLUTCH DRIVE NO.2
    PLATE, CLUTCH DRIVE NO.2
  • 9
    21442-41G00 PLATE, CLUTCH DRIVE NO.3
    PLATE, CLUTCH DRIVE NO.3
  • 10
    21451-41G00 PLATE, CLUTCH DRIVEN NO.1 T:2.3
    PLATE, CLUTCH DRIVEN NO.1 T:2.3
  • 11
    21451-41G40 PLATE, CLUTCH DRIVEN NO.2 T:2.3
    PLATE, CLUTCH DRIVEN NO.2 T:2.3
  • 12
    21451-41G20 PLATE, CLUTCH DRIVEN NO.3 T:2.6
    PLATE, CLUTCH DRIVEN NO.3 T:2.6
  • 13
    21462-41G00 DISC, CLUTCH PRESSURE
    DISC, CLUTCH PRESSURE
  • 14
    21471-41G00 SEAT, WAVE WASHER
    SEAT, WAVE WASHER
  • 15
    21472-41G10 WASHER, CLUTCH PLATE WAVE
    WASHER, CLUTCH PLATE WAVE
  • 16
    21482-41G10 BOLT, CLUTCH SPRING
    BOLT, CLUTCH SPRING
  • 17
    21611-41G20 CAM, CLUTCH DRIVE
    CAM, CLUTCH DRIVE
  • 18
    21612-41G20 CAM, CLUTCH DRIVEN
    CAM, CLUTCH DRIVEN
  • 19
    21621-41G00 WASHER, CAM REACTION WAVE
    WASHER, CAM REACTION WAVE
  • 20
    21624-41G10 WASHER, CAM REACTION SEAT
    WASHER, CAM REACTION SEAT
  • 21
    21622-41G00 LIFTER, CLUTCH PRESSURE DISK
    LIFTER, CLUTCH PRESSURE DISK
  • 22
    21623-41G00 NUT, CL PRESS DISK LIFTER LOCK
    NUT, CL PRESS DISK LIFTER LOCK
  • 23
    09181-08139 WASHER, LIFTER LOCK NUT
    WASHER, LIFTER LOCK NUT
  • 24
    09159-24010 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 25
    09160-25056 WASHER, CLUTCH SLEEVE HUB THR 25X50X2.5
    WASHER, CLUTCH SLEEVE HUB THR 25X50X2.5
  • 26
    09160-25077 WASHER, CLUTCH SLEEVE HUB 25X41X2.5
    WASHER, CLUTCH SLEEVE HUB 25X41X2.5
  • 27
    09164-24006 WASHER, CLUTCH SLEEVE HUB WAVE
    WASHER, CLUTCH SLEEVE HUB WAVE
  • 28
    23110-24F00 ROD, CLUTCH
    ROD, CLUTCH
  • 29
    23111-24A01 ROD, CLUTCH PUSH, L
    ROD, CLUTCH PUSH, L
  • 30
    23121-31E20 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 31
    23160-06G10 CYLINDER, CLUTCH RELEASE (INCL. 32-35)
    CYLINDER, CLUTCH RELEASE (INCL. 32-35)
  • 32
    23163-06B00 CUP
    CUP
  • 33
    23164-05A00 SPRING
    SPRING
  • 34
    59121-01A00 BLEEDER
    BLEEDER
  • 35
    59122-01A00 CAP, BLEEDER
    CAP, BLEEDER
  • 36
    09160-15045 WASHER, CLUTCH PUSH 15.5X28X1
    WASHER, CLUTCH PUSH 15.5X28X1
  • 37
    09263-15003 BEARING, CLUTCH PUSH 15X28X2
    BEARING, CLUTCH PUSH 15X28X2
  • 38
    09285-06011 SEAL, CLUTCH PUSH ROD 5X34X10
    SEAL, CLUTCH PUSH ROD 5X34X10
  • 39
    07130-0620A BOLT, CLUTCH RELEASE
    BOLT, CLUTCH RELEASE
