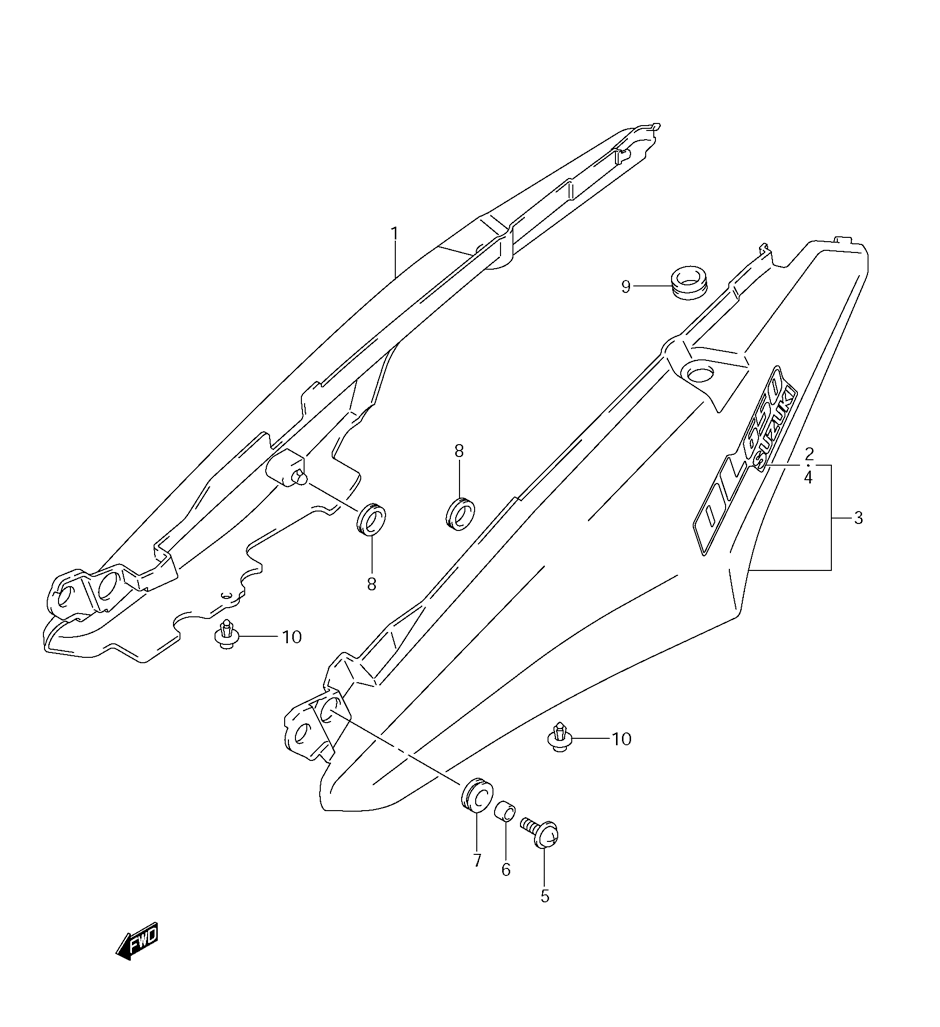

SEAT TAIL COVER для Suzuki DL650 K8 ABS - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    45501-27G00-YHG COVER ASSEMBLY, SEAT TAIL RIGHT HAND (GRAY) (FOR YHG)
    COVER ASSEMBLY, SEAT TAIL RIGHT HAND (GRAY) (FOR YHG)
  • 1
    45501-27G00-YMF COVER ASSEMBLY, SEAT TAIL RIGHT HAND (YELLOW) (FOR YMF)
    COVER ASSEMBLY, SEAT TAIL RIGHT HAND (YELLOW) (FOR YMF)
  • 1
    45501-27G00-4EX COVER ASSEMBLY, SEAT TAIL RIGHT HAND (BLACK) (4EX FOR YKV)
    COVER ASSEMBLY, SEAT TAIL RIGHT HAND (BLACK) (4EX FOR YKV)
  • 1
    45501-27G00-5FX COVER ASSEMBLY, SEAT TAIL RIGHT HAND (BLUE) (5FX FOR YKY)
    COVER ASSEMBLY, SEAT TAIL RIGHT HAND (BLUE) (5FX FOR YKY)
  • 2
    68161-27G00-DTK ...EMBLEM, SEAT TAIL COVER (FOR YHG)
    ...EMBLEM, SEAT TAIL COVER (FOR YHG)
  • 2
    68161-27G00-FCA ...EMBLEM, SEAT TAIL COVER (FOR YMF)
    ...EMBLEM, SEAT TAIL COVER (FOR YMF)
  • 2
    68161-27G00-DTM ...EMBLEM, SEAT TAIL COVER (4EX) (FOR YKV)
    ...EMBLEM, SEAT TAIL COVER (4EX) (FOR YKV)
  • 2
    68161-27G00-FBZ ...EMBLEM, SEAT TAIL COVER (5FX) (FOR YKY)
    ...EMBLEM, SEAT TAIL COVER (5FX) (FOR YKY)
  • 3
    45502-27G00-YHG COVER ASSEMBLY, SEAT TAIL LEFT HAND (GRAY) (FOR YHG)
    COVER ASSEMBLY, SEAT TAIL LEFT HAND (GRAY) (FOR YHG)
  • 3
    45502-27G00-YMF COVER ASSEMBLY, SEAT TAIL LEFT HAND (YELLOW) (FOR YMF)
    COVER ASSEMBLY, SEAT TAIL LEFT HAND (YELLOW) (FOR YMF)
  • 3
    45502-27G00-4EX COVER ASSEMBLY, SEAT TAIL LEFT HAND (BLACK) (4EX FOR YKV)
    COVER ASSEMBLY, SEAT TAIL LEFT HAND (BLACK) (4EX FOR YKV)
  • 3
    45502-27G00-5FX COVER ASSEMBLY, SEAT TAIL LEFT HAND (BLUE) (5FX FOR YKY)
    COVER ASSEMBLY, SEAT TAIL LEFT HAND (BLUE) (5FX FOR YKY)
  • 4
    68161-27G00-DTK ...EMBLEM, SEAT TAIL COVER (FOR YHG)
    ...EMBLEM, SEAT TAIL COVER (FOR YHG)
  • 4
    68161-27G00-FCA ...EMBLEM, SEAT TAIL COVER (FOR YMF)
    ...EMBLEM, SEAT TAIL COVER (FOR YMF)
  • 4
    68161-27G00-DTM ...EMBLEM, SEAT TAIL COVER (4EX) (FOR YKV)
    ...EMBLEM, SEAT TAIL COVER (4EX) (FOR YKV)
  • 4
    68161-27G00-FBZ ...EMBLEM, SEAT TAIL COVER (5FX) (FOR YKY)
    ...EMBLEM, SEAT TAIL COVER (5FX) (FOR YKY)
  • 5
    09136-06081 SCREW, FRONT
    SCREW, FRONT
  • 6
    09180-06300 SPACER, FRONT
    SPACER, FRONT
  • 7
    09320-12068 CUSHION, FRONT
    CUSHION, FRONT
  • 8
    09320-08018 CUSHION, CENTER
    CUSHION, CENTER
  • 9
    09320-15008 CUSHION, REAR
    CUSHION, REAR
  • 10
    09409-06314-5PK CLIP (BLACK)
    CLIP (BLACK)
