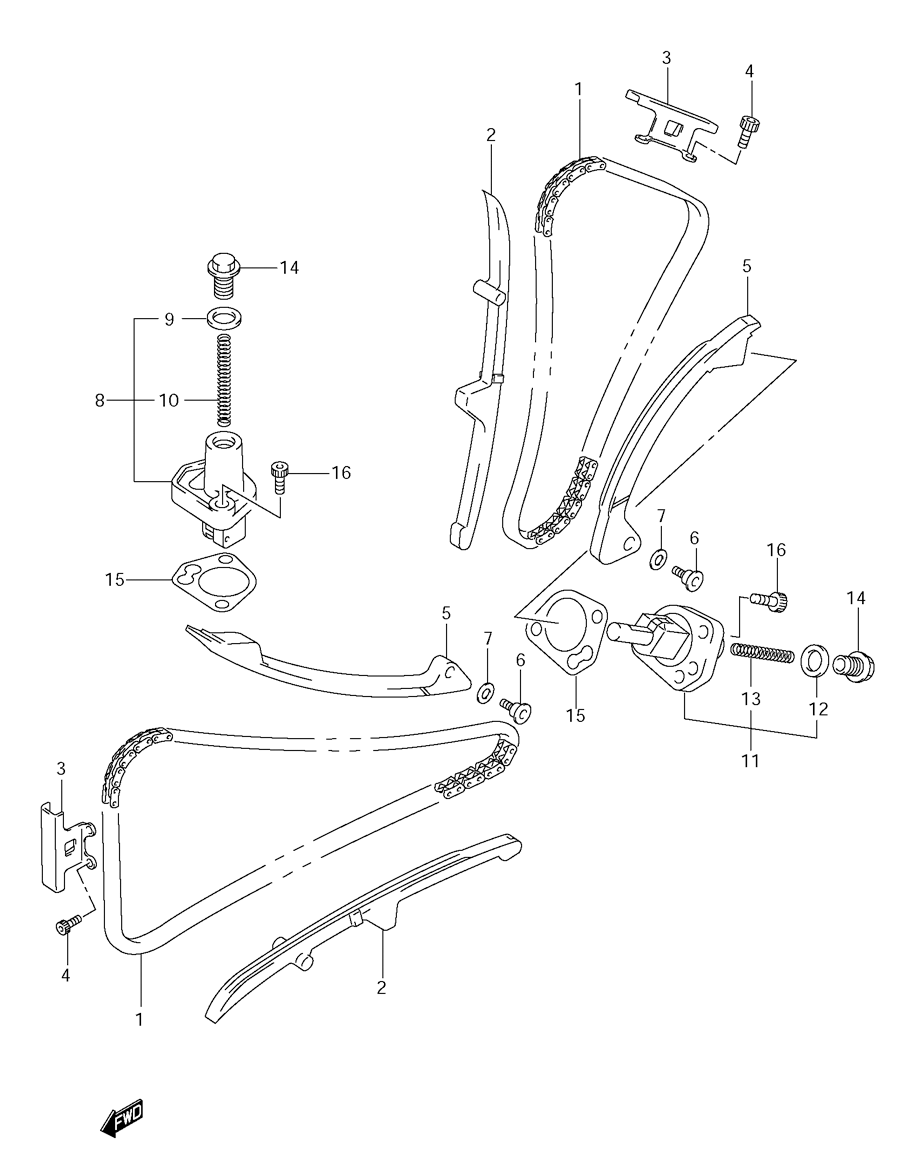

CAM CHAIN ASSY. W/ TENSIONER для Suzuki DL650 K8 ABS - 2008 года выпуска
-
№АртикулНазвание
-
112760-19F01 CHAIN, CAMSHAFT DRIVECHAIN, CAMSHAFT DRIVE
-
212771-19F00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
312782-19F00 GUIDE, CAM CHAIN NO.2GUIDE, CAM CHAIN NO.2
-
407130-0612B BOLTBOLT
-
512811-17G00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
612812-35C00 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
708211-06181 WASHERWASHER
-
812830-27G00 ADJUSTER ASSEMBLY, TENSIONER FRONTADJUSTER ASSEMBLY, TENSIONER FRONT
-
912837-24F10 ...GASKET, TENSIONER ADJUSTER...GASKET, TENSIONER ADJUSTER
-
1012831-39F00 ...SPRING...SPRING
-
1112830-27G10 ADJUSTER ASSEMBLY, TENSIONER REARADJUSTER ASSEMBLY, TENSIONER REAR
-
1212837-24F10 ...GASKET, TENSIONER ADJUSTER...GASKET, TENSIONER ADJUSTER
-
1312831-39F00 ...SPRING...SPRING
-
1412833-17G00 PLUG, TENSIONER ADJUSTERPLUG, TENSIONER ADJUSTER
-
1512837-27G00 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1607130-0625B BOLTBOLT
