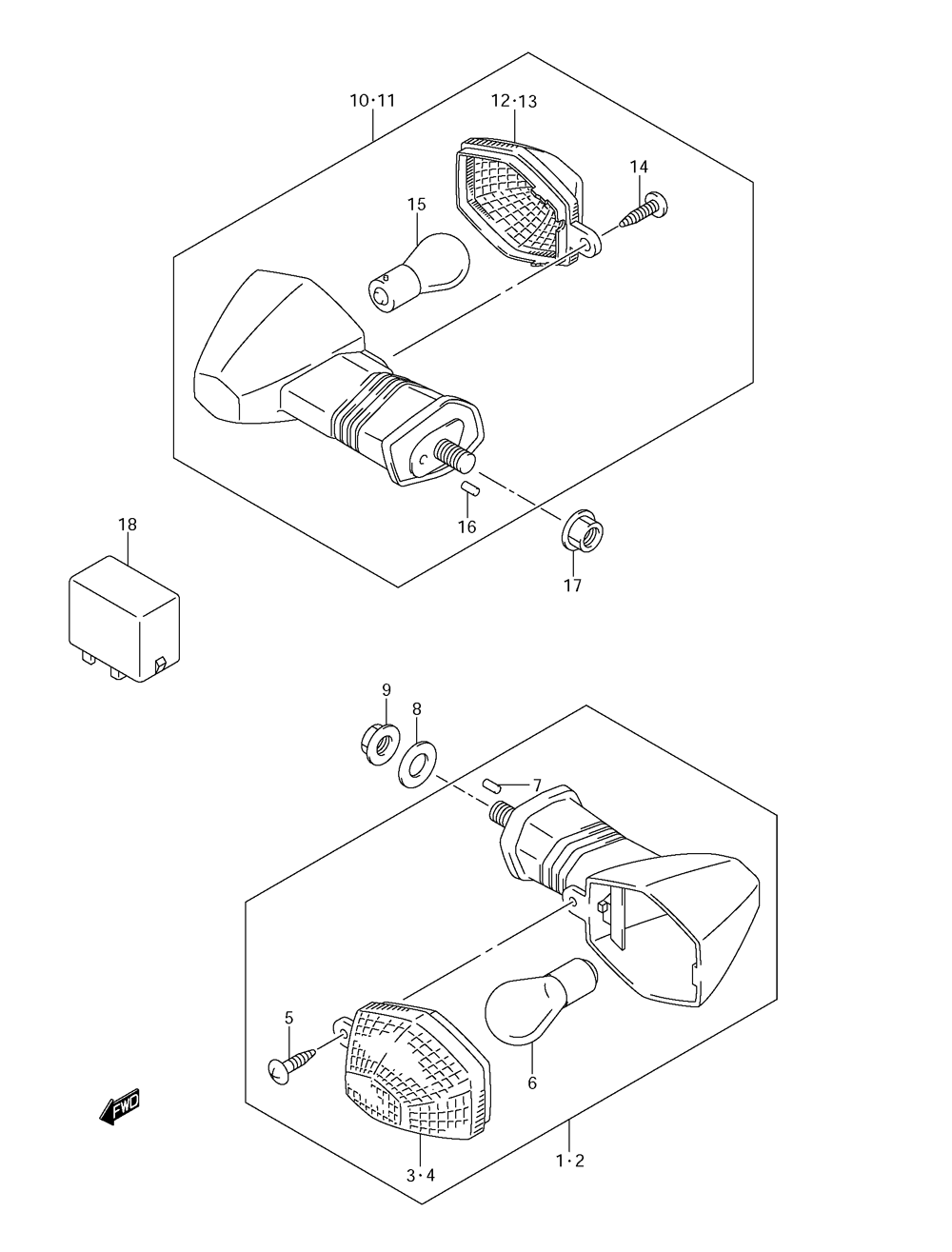

TURN SIGNAL ASSY. для Suzuki DL1000 K8 - 2008 года выпуска
-
№АртикулНазвание
-
135601-27G10 LAMP ASSEMBLY, FRONT TURNSIGNAL RIGHT HANDLAMP ASSEMBLY, FRONT TURNSIGNAL RIGHT HAND
-
235602-27G10 LAMP ASSEMBLY, FRONT TURNSIGNAL LEFT HANDLAMP ASSEMBLY, FRONT TURNSIGNAL LEFT HAND
-
335612-29FA0 ...LENS, RIGHT HAND FOR CLEAR...LENS, RIGHT HAND FOR CLEAR
-
435632-29FA0 ...LENS, LEFT HAND FOR CLEAR...LENS, LEFT HAND FOR CLEAR
-
503241-0416A ...SCREW...SCREW
-
609471-12186 ...BULB (12V21W,AMBER)...BULB (12V21W,AMBER)
-
709202-04017 ...PIN...PIN
-
809160-12092 WASHERWASHER
-
908316-1012B NUTNUT
-
1035603-06G20 LAMP ASSEMBLY, REAR TURNSIGNAL RIGHT HANDLAMP ASSEMBLY, REAR TURNSIGNAL RIGHT HAND
-
1135604-06G20 LAMP ASSEMBLY, REAR TURNSIGNAL LEFT HANDLAMP ASSEMBLY, REAR TURNSIGNAL LEFT HAND
-
1235632-29FA0 ...LENS, RIGHT HAND FOR CLEAR...LENS, RIGHT HAND FOR CLEAR
-
1335612-29FA0 ...LENS, LEFT HAND FOR CLEAR...LENS, LEFT HAND FOR CLEAR
-
1403241-0416A ...SCREW...SCREW
-
1509471-12186 ...BULB (12V21W,AMBER)...BULB (12V21W,AMBER)
-
1609202-04017 ...PIN...PIN
-
1708316-1012B NUTNUT
-
1838610-03F00 RELAY ASSEMBLY, TURNSIGNAL LAMPRELAY ASSEMBLY, TURNSIGNAL LAMP
