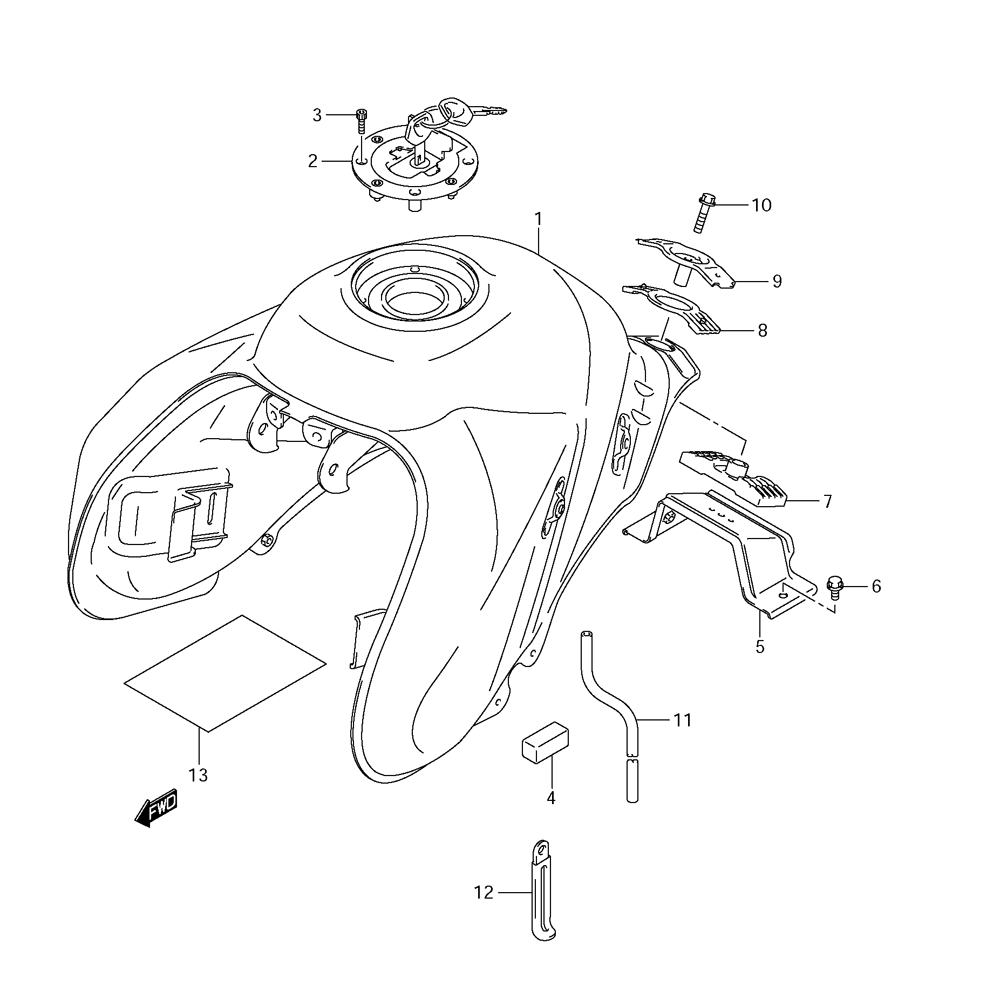

FUEL TANK для Suzuki DL1000 K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    44110-06G00-YAY TANK, FUEL (BLACK) (EXCEPT CALF.) (FOR YAY)
    TANK, FUEL (BLACK) (EXCEPT CALF.) (FOR YAY)
  • 1
    44110-06G00-YU8 TANK, FUEL (GRAY) (EXCEPT CALF.) (FOR YU8)
    TANK, FUEL (GRAY) (EXCEPT CALF.) (FOR YU8)
  • 1
    44110-06G00-YKY TANK, FUEL (BLUE) (EXCEPT CALF.) (FOR YKY)
    TANK, FUEL (BLUE) (EXCEPT CALF.) (FOR YKY)
  • 1
    44110-06G00-YMD TANK, FUEL (SILVER) (EXCEPT CALF.) (FOR YKY)
    TANK, FUEL (SILVER) (EXCEPT CALF.) (FOR YKY)
  • 1
    44110-06G20-YAY TANK, FUEL (BLACK) (FOR CALF. ONLY) (FOR YAY)
    TANK, FUEL (BLACK) (FOR CALF. ONLY) (FOR YAY)
  • 1
    44110-06G20-YU8 TANK, FUEL (GRAY) (FOR CALF. ONLY) (FOR YU8)
    TANK, FUEL (GRAY) (FOR CALF. ONLY) (FOR YU8)
  • 1
    44110-06G20-YKY TANK, FUEL (BLUE) (FOR CALF. ONLY) (FOR YKY)
    TANK, FUEL (BLUE) (FOR CALF. ONLY) (FOR YKY)
  • 1
    44110-06G20-YMD TANK, FUEL (SILVER) (FOR CALF. ONLY) (FOR YKY)
    TANK, FUEL (SILVER) (FOR CALF. ONLY) (FOR YKY)
  • 2
    44201-33820 CAP SET, FUEL TANK
    CAP SET, FUEL TANK
  • 2
    44200-33830 CAP SET, FUEL TANK (FOR CALF. ONLY)
    CAP SET, FUEL TANK (FOR CALF. ONLY)
  • 3
    09106-05017 BOLT
    BOLT
  • 4
    44541-06G00 CUSHION, SIDE
    CUSHION, SIDE
  • 5
    44550-06G01 BRACKET, REAR LOWER
    BRACKET, REAR LOWER
  • 6
    01550-0816B BOLT
    BOLT
  • 7
    44545-06G00 CUSHION, LOWER
    CUSHION, LOWER
  • 8
    44542-06G00 CUSHION, UPPER
    CUSHION, UPPER
  • 9
    44530-06G00 BRACKET, UPPER
    BRACKET, UPPER
  • 10
    01550-0835B BOLT
    BOLT
  • 11
    44423-06G00 HOSE, WATER DRAIN
    HOSE, WATER DRAIN
  • 12
    09404-06429 CLAMP
    CLAMP
  • 13
    44194-06G00 SHIELD, CENTER
    SHIELD, CENTER
