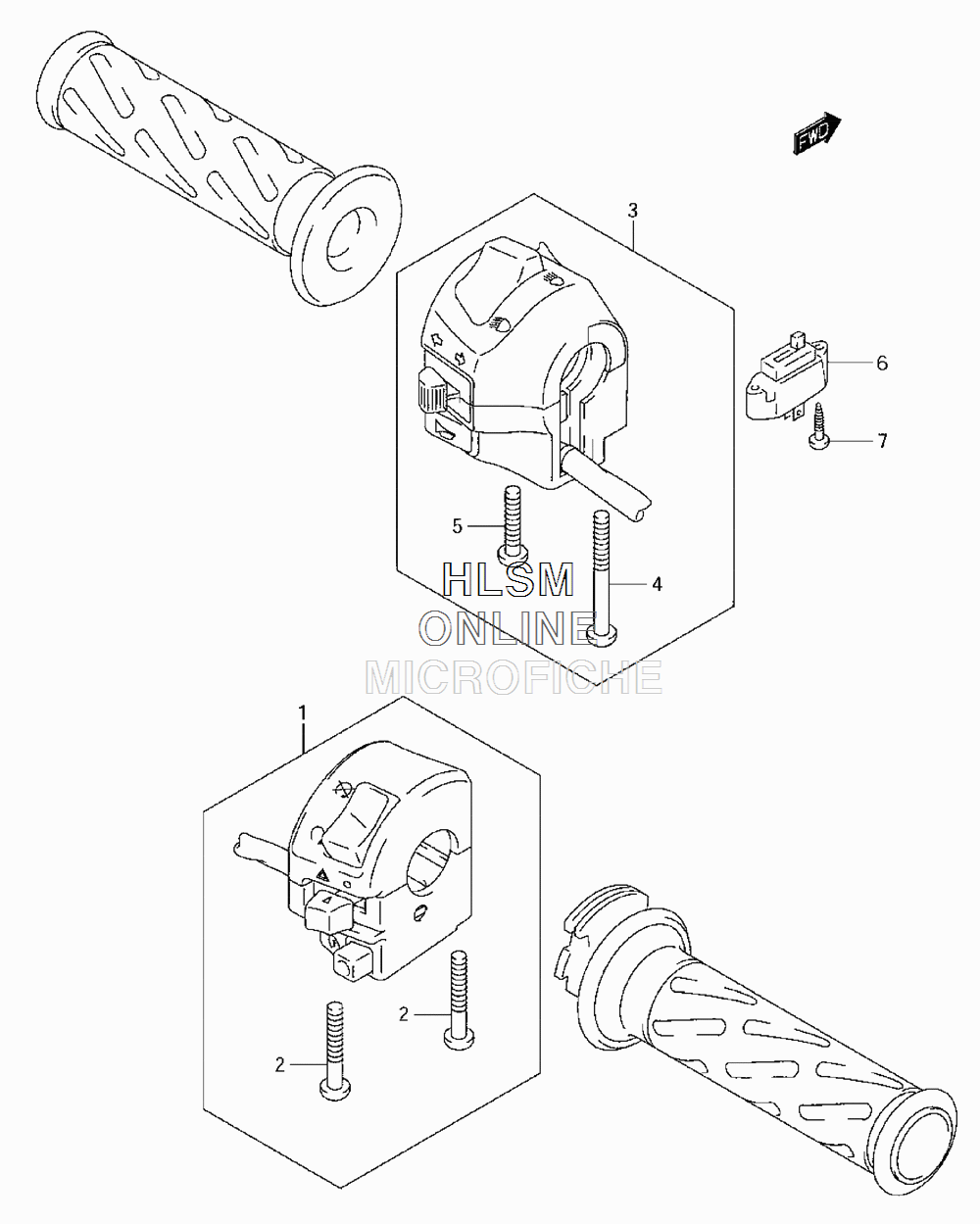

HANDLEBAR - LEVERS / SWITCHES для Suzuki SV650SA K7 - 2007 года выпуска`
-
№АртикулНазвание
-
137200-16G10 SWITCH ASSY, HANDLE RIGHT HAND (INC. 2)SWITCH ASSY, HANDLE RIGHT HAND (INC. 2)
-
202112-05455 SCREWSCREW
-
337400-16G10 SWITCH ASSY, HANDLE LEFT HAND (INC. 4 - 5)SWITCH ASSY, HANDLE LEFT HAND (INC. 4 - 5)
-
402112-05455 SCREWSCREW
-
509125-05066 SCREW (5X25)SCREW (5X25)
-
637560-31F00 SWITCH ASSY, CLUTCHSWITCH ASSY, CLUTCH
-
709132-03017 SCREW (3X14)SCREW (3X14)
