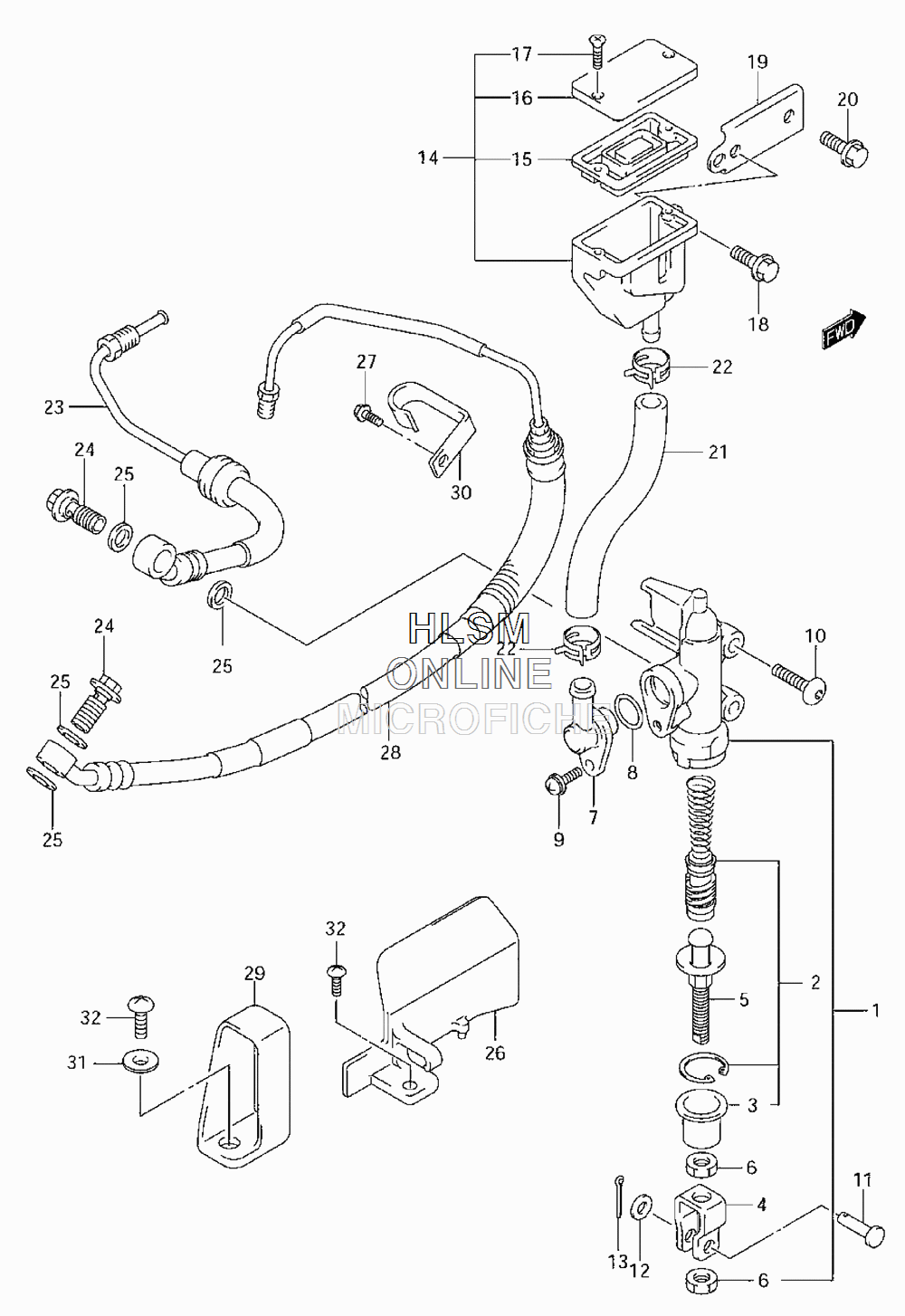

BRAKE - REAR MASTER CYLINDER для Suzuki SV650SA K7 - 2007 года выпуска`
-
№АртикулНазвание
-
169600-16G00 CYLINDER ASSY, REAR MASTER (INC. 2 - 9)CYLINDER ASSY, REAR MASTER (INC. 2 - 9)
-
269600-34820 PISTON/CUP SETPISTON/CUP SET
-
369691-00A00 BOOTBOOT
-
469692-27A30 YOKEYOKE
-
569670-48B00 ROD, PUSHROD, PUSH
-
669693-05A00 NUTNUT
-
769672-05A00 CONNECTORCONNECTOR
-
869686-34200 O RINGO RING
-
902112-74123 SCREWSCREW
-
1009139-06028 BOLT (6X20)BOLT (6X20)
-
1109200-06037 PINPIN
-
1208322-01063 WASHERWASHER
-
1304111-20158 COTTER PINCOTTER PIN
-
1469740-01D02 TANK ASSY, REAR RESERVOIR (INC. 15 - 17)TANK ASSY, REAR RESERVOIR (INC. 15 - 17)
-
1559667-04700 DIAPHRAGMDIAPHRAGM
-
1659669-05D00 CAPCAP
-
1769689-04A00 SCREWSCREW
-
1809103-06222 BOLT, TANKBOLT, TANK
-
1969750-16G10 BRACKET, RR RESERVOIR TANKBRACKET, RR RESERVOIR TANK
-
2001550-06163 BOLT, BRACKETBOLT, BRACKET
-
2169731-16G20 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
2209401-13417 CLIPCLIP
-
2369200-17G00 HOSE, ASSY, REAR BRAKE NO.1HOSE, ASSY, REAR BRAKE NO.1
-
2409360-10042 BOLT (10X1.25X22)BOLT (10X1.25X22)
-
2509161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2661196-06G00 GUIDE, RR BRAKE HOSEGUIDE, RR BRAKE HOSE
-
2701547-06163 BOLTBOLT
-
2869400-17G00 HOSE ASSY, REAR BRAKE NO.2HOSE ASSY, REAR BRAKE NO.2
-
2969243-16G00 GUIDE, REAR BRAKE HOSEGUIDE, REAR BRAKE HOSE
-
3069266-17G00 CLAMP, REAR BRAKE HOSE NO.2CLAMP, REAR BRAKE HOSE NO.2
-
3109169-06041 WASHER, GUIDE RR BRAKE HOSEWASHER, GUIDE RR BRAKE HOSE
-
3202142-0616A SCREWSCREW
