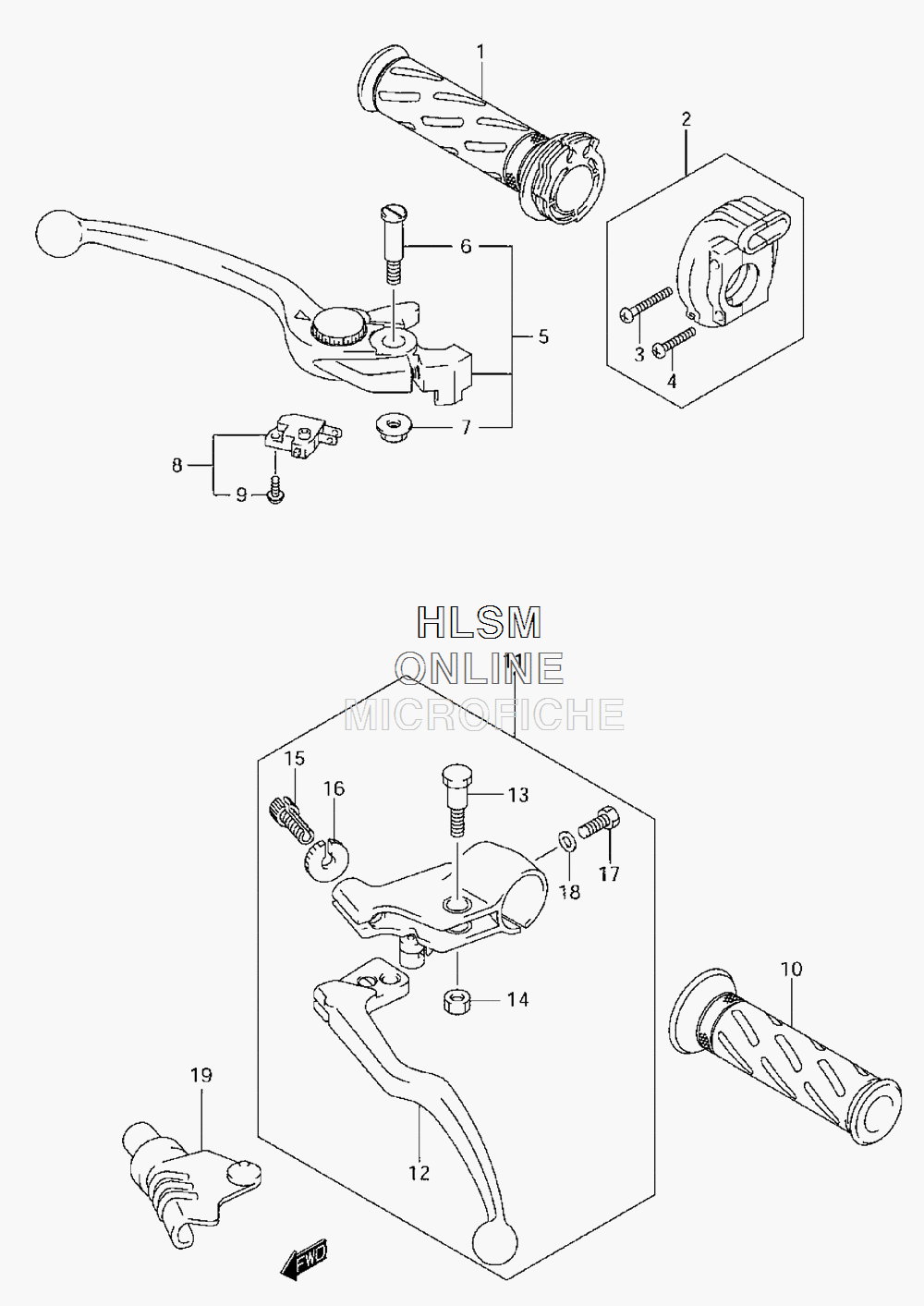

HANDLEBAR - LEVERS для Suzuki SV650 K7 - 2007 года выпуска`
-
№АртикулНазвание
-
157110-46E01 GRIP, THROTTLEGRIP, THROTTLE
-
557300-44G00 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
657431-14G00 BOLT, PIVOTBOLT, PIVOT
-
708319-21068 NUTNUT
-
857460-17C11 SWITCH ASSY, STOP (INC. 9)SWITCH ASSY, STOP (INC. 9)
-
957465-17C00 SCREWSCREW
-
1057211-22D01 GRIP, LEFT HANDGRIP, LEFT HAND
-
1157500-10D01 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1257620-27A31 LEVERLEVER
-
1357531-14A00 BOLT, PIVOTBOLT, PIVOT
-
1408319-21063 NUTNUT
-
1557441-11010 ADJUSTER, CABLEADJUSTER, CABLE
-
1657442-11010 NUT, ADJUSTERNUT, ADJUSTER
-
1701500-06203 BOLTBOLT
-
1808322-01063 WASHERWASHER
-
1957661-45C00 COVER, CLUTCHCOVER, CLUTCH
