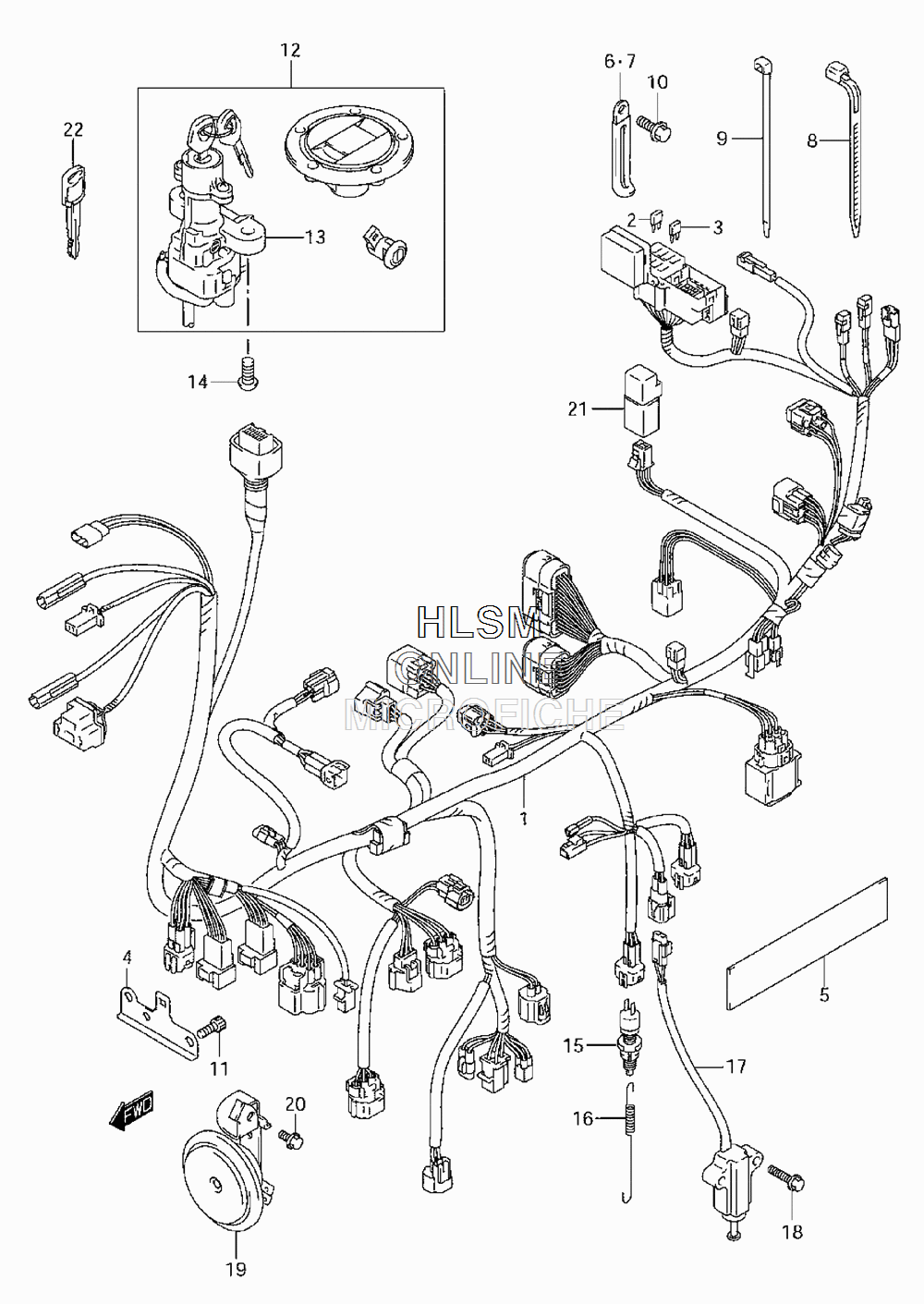

ELECTRICAL - WIRING HARNESS для Suzuki SV650 K7 - 2007 года выпуска`
-
№АртикулНазвание
-
136610-17GK0 HARNESS, WIRING (ALL EXCEPT CALIF.)HARNESS, WIRING (ALL EXCEPT CALIF.)
-
136610-17GJ0 HARNESS, WIRING (INC. 2-3) (CALIF. ONLY)HARNESS, WIRING (INC. 2-3) (CALIF. ONLY)
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
436687-17G10 HOLDER, COUPLERHOLDER, COUPLER
-
533652-26E00 PROTECTOR (20X90X1.0)PROTECTOR (20X90X1.0)
-
609404-06429 CLAMP (L:45)CLAMP (L:45)
-
609404-06433 CLAMP (L:80)CLAMP (L:80)
-
709404-08207 CLAMP (L:80)CLAMP (L:80)
-
809407-11401 CLAMP (L:95)CLAMP (L:95)
-
809407-18402 CLAMP (L:165)CLAMP (L:165)
-
909407-14407 CLAMP (L:145)CLAMP (L:145)
-
1001550-0612A BOLT, WIRING HARNESSBOLT, WIRING HARNESS
-
1107130-06103 SCREW, WIRING HARNESSSCREW, WIRING HARNESS
-
1237000-16840 LOCK SET (ALL EXCEPT CALIF.)LOCK SET (ALL EXCEPT CALIF.)
-
1237000-16850 LOCK SET (INC. 13) (CALIF. ONLY)LOCK SET (INC. 13) (CALIF. ONLY)
-
1337100-16G20 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1409139-08016 BOLT (8X20)BOLT (8X20)
-
1537740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1609443-06016 SPRINGSPRING
-
1737840-16G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1801550-06257 BOLTBOLT
-
1938500-17G10 HORN ASSYHORN ASSY
-
2001550-0612A BOLT, HORNBOLT, HORN
-
2138740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2237146-33E00 KEY, BLANKKEY, BLANK
