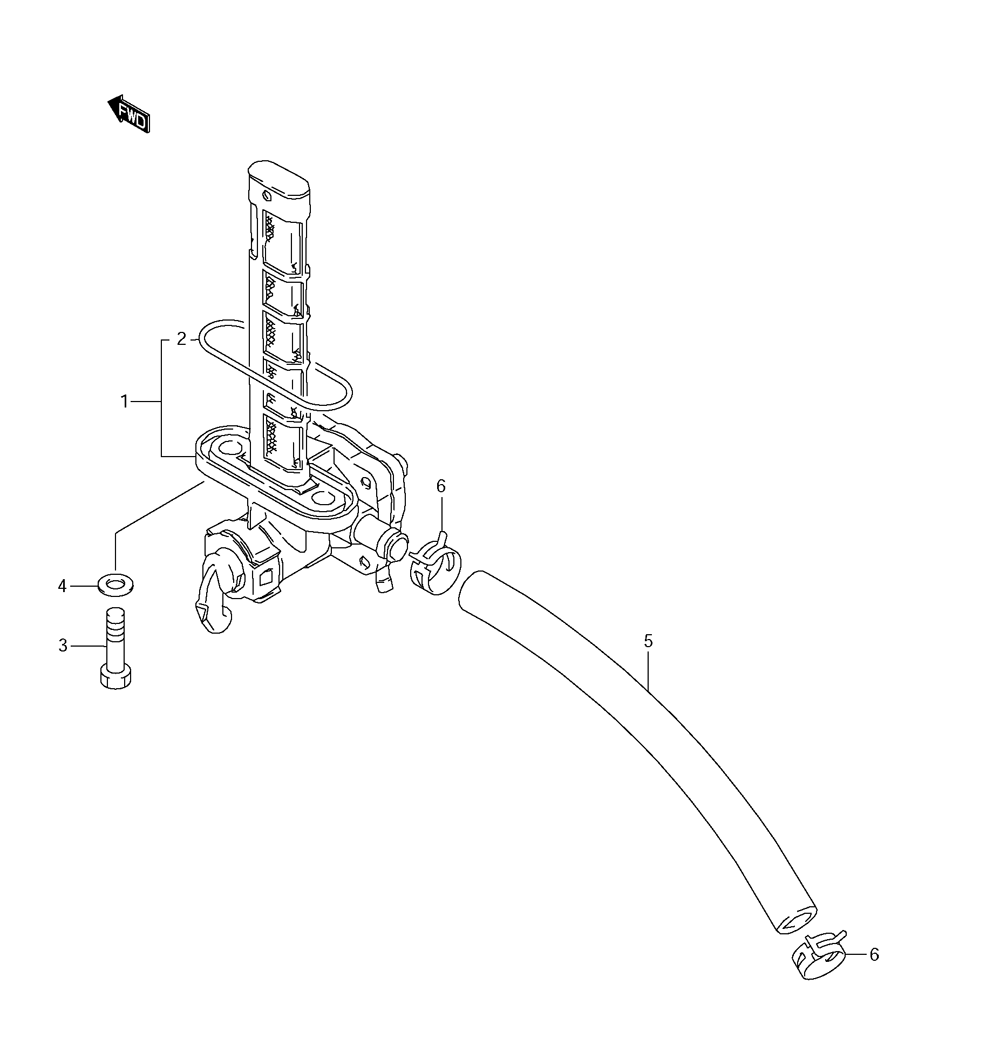

FUEL COCK ASSY. для Suzuki LS650 K7 - 2007 года выпуска
-
№АртикулНазвание
-
144300-24B00 COCK ASSEMBLY, FUELCOCK ASSEMBLY, FUEL
-
244348-28070 ...O RING...O RING
-
309128-06006 BOLTBOLT
-
409168-06026 GASKETGASKET
-
509355-70125-600 HOSE, FUEL (LENGTH: 600->140)HOSE, FUEL (LENGTH: 600->140)
-
609401-11415 CLIP, FUEL HOSECLIP, FUEL HOSE
